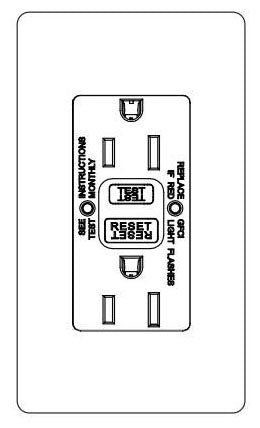

SC 20A GFCI SELF TESTING MIDNIGHT - Self-Testing GFCI Receptacle

The SC 20A GFCI Self Testing receptacle by Lutron is designed for reliable ground-fault circuit interruption in residential and commercial electrical installations. This tamper-resistant device automatically tests its critical components every 30 seconds to ensure continuous GFCI protection, making it suitable for safety-conscious electrical distributors, lighting solutions providers, and switchgear suppliers. It supports 20 ampere circuits and is intended for wallbox mounting with screw terminal connections.

Specifications

• Manufacturer: Lutron
• Model Number: SCR-20-GFST-MN
• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires Supported: 3, 4, 5
• Connection Type: Screw-Type Terminals
• Material: Plastic/Metal
• Insulation Material: Plastic
• Mounting Type: Wallbox
• Color: Midnight
• Environmental Conditions: 0 to 90% humidity, non-condensing
• Product Weight: 0.34 lbs

Features

• Self-testing technology automatically checks GFCI operation every 30 seconds
• LED status indicator provides clear visual confirmation of protection status
• Permanently installed internal tamper-resistant shutter mechanism
• Compatible with Lutron Claro wall plates for consistent color matching (sold separately)
• Installation options include screw terminals or push-in connections
