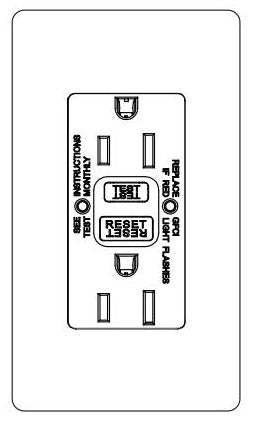

SC 15A GFCI Self Testing Snow - GFCI Receptacle

The SC 15A GFCI Self Testing Snow receptacle by Lutron is designed for lighting control applications, providing ground-fault circuit interruption to enhance electrical safety. This device is suitable for electrical distributors and lighting solutions providers seeking reliable wire and cable protection with integrated self-testing capabilities. It features a tamper-resistant shutter mechanism and an LED status indicator, ensuring ongoing protection and compliance in residential or commercial installations. The receptacle is compatible with standard wallbox mounting and offers screw terminal connections for secure wiring.

Specifications

• Manufacturer: Lutron
• Manufacturer Part #: SCR-15-GFST-SW
• Amperage Rating: 15 A
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3, 4, 5
• Connection Type: Screw-Type Terminals
• Mounting Type: Wallbox
• Material: Plastic/Metal
• Insulation Material: Plastic
• Color: Snow
• Product Weight: 0.34 lbs
• Environmental Conditions: 0 to 90% humidity, non-condensing

Features

• Self-testing GFCI automatically checks every 30 seconds to verify protection
• LED status indicator for visual confirmation of device status
• Internal tamper-resistant shutter mechanism to prevent foreign object insertion
• Compatible with screw terminal or push-in connections
• Available in multiple gloss and satin colors for coordinated decor
• Pairs with Lutron Claro wall plates for consistent color matching (sold separately)
