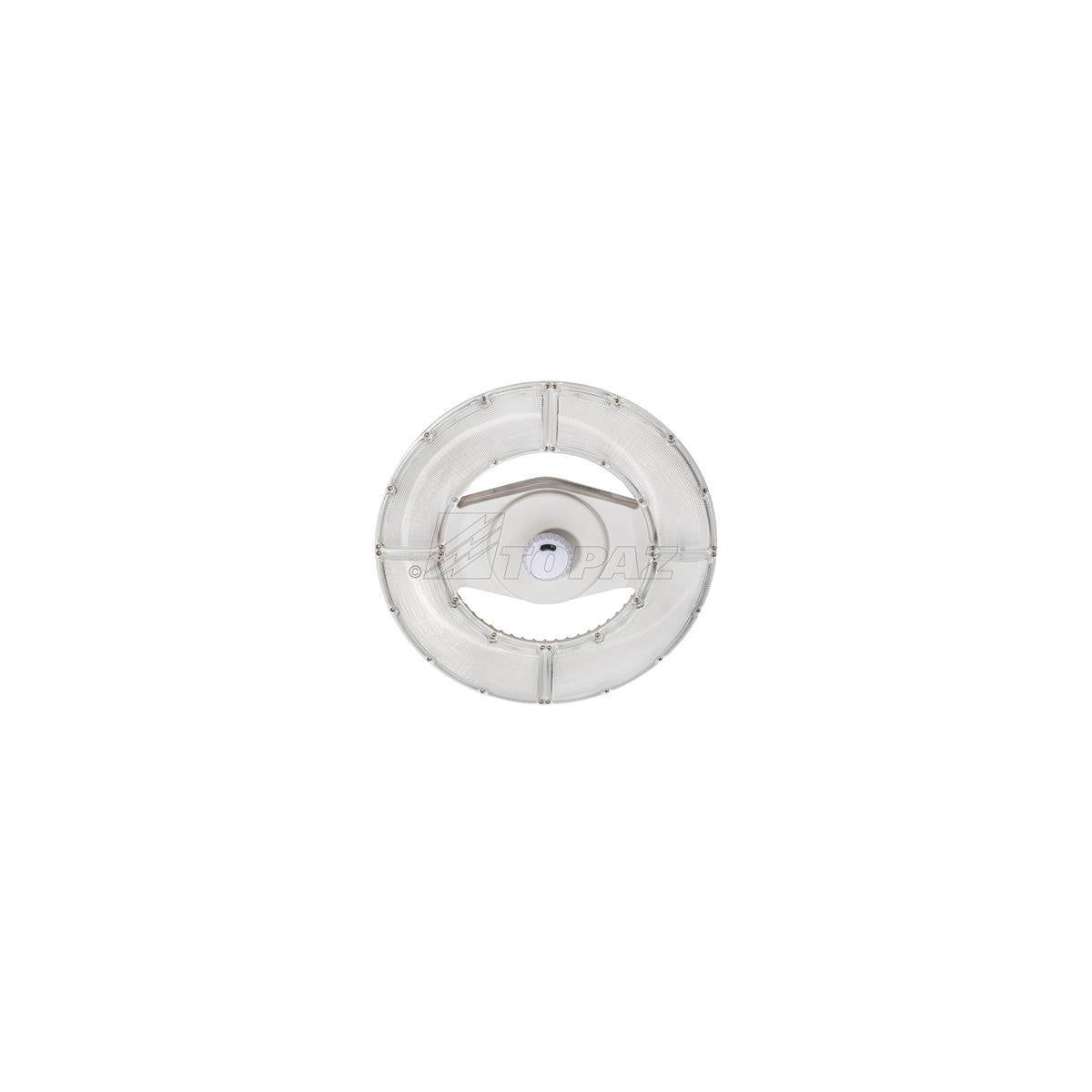

Satellite Series - 150W LED High Bay Fixture with Motion Sensor
SKU: #186138
Part: #F-LUHB/150W/50K/MS
UPC: 751338032163
Satellite Series - 150W LED High Bay Fixture with Motion Sensor
SKU: #186138
Part: #F-LUHB/150W/50K/MS
UPC: 751338032163
Description
Satellite Series - 150W LED High Bay Fixture with Motion Sensor
The Satellite Series 150W LED High Bay Fixture with Motion Sensor by Southwire is designed for efficient, high-performance lighting in commercial and industrial settings. Ideal for mounting heights between 20 and 25 feet, it provides 19,770 lumens, making it suitable for warehouses, gymnasiums, and production assembly areas. This fixture serves as an energy-efficient replacement for 400W HID luminaires. Built with durability in mind, it features a shatter-resistant IK09-rated lens and salt spray corrosion resistance, ensuring reliability in demanding environments. The integrated motion sensor allows for automated lighting control to optimize energy savings.
Specifications
- Power: 150W
- Lumens: 19,770
- Input Voltage: 120-277V
- Color Temperature (CCT): 5000K
- Color Rendering Index (CRI): 80
- Beam Angle: 120°
- IP Rating: IP64
- Surge Protection: 6kV
- Average Rated Life (L70): 50,000 hours
- Frequency: 50/60Hz
- Power Factor: >0.9
- Total Harmonic Distortion (THD): <20%
- LED Chip Type: Samsung 2835
- Driver: Sosen High Power
- Operating Ambient Temperature Range: -40°F to 140°F
- Weight: 13.16 lbs
- Mounting Height: 20' - 25'
- Replacement for: 400W HID
Features
- Compact and lightweight design for easy installation
- Sleek, refractive type polycarbonate lens
- Built-in cooling fins for maximum heat dissipation in high temperature applications
- Shatter resistant with IK09 impact rating
- Salt spray corrosion rated for durability
- Die cast hook mount for quick and secure installation
- Microwave motion sensor with factory preset settings for vacancy sensing and dimming down to 30%
- Dimmable with compatible 0-10V dimmers
