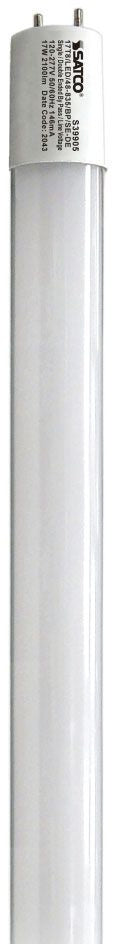

SATCO S39905 17T8/LED/48-835/BP/SE-DE LED Tube Lamp

The SATCO S39905 is a 4-foot T8 LED tube lamp designed for retrofit applications requiring ballast bypass (Type B). It operates on 120-277 volts and features a single-ended G13 base suitable for use in residential, commercial, and industrial lighting solutions. This LED lamp provides efficient illumination with a correlated color temperature (CCT) of 3500K and a wide 210° beam angle, making it compatible with various lighting fixtures supplied by electrical distributors and switchgear suppliers.

Specifications

• Wattage: 17 W
• Voltage: 120-277 V
• Bulb Shape: T8
• Base Type: G13
• Finish: White
• Color Temperature: 3500K
• Lumens: 2100 lm
• Color Rendering Index (CRI): 82
• Beam Angle: 210¬∞
• Maximum Overall Length (MOL): 47.78 inches
• Nominal Length: 48 inches
• Rated Life: 50,000 hours
• UPC: 045923399053
• Product Weight: 0.44 lbs

Features

• Type B ballast bypass design for direct wiring, eliminating the need for a ballast
• Single-ended wiring requiring non-shunted sockets
• Wide compatibility with standard T8 fixtures after ballast removal
• Suitable for damp locations and enclosed luminaires
• c-UL-us classified and recognized for safety and performance
• Full glass housing resistant to aging, yellowing, and bending
• Energy-efficient LED technology providing long service life and reduced maintenance
• Operates with 120-277V line voltage for versatile installation
