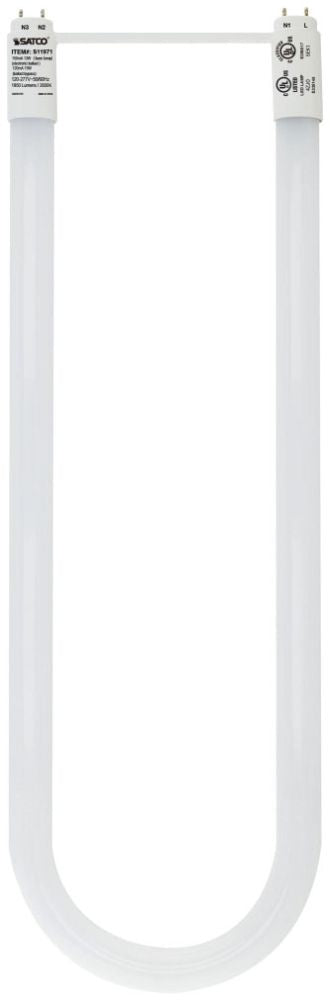

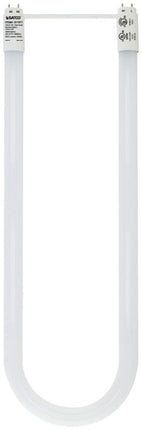

SATCO S11971 13T8U6/LED/22.5-835/DUAL LED U-Bend Lamp

The SATCO S11971 is a 13-watt LED T8 dual mode U-bend lamp designed as a direct replacement for fluorescent U-bend lamps in existing fixtures. It operates efficiently across a wide voltage range (120-277V) and is suitable for use in commercial and industrial lighting applications. This lamp is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers seeking energy-efficient retrofit options that reduce energy consumption while maintaining high-quality illumination.

Specifications

• Wattage: 13 W
• Voltage: 120-277 V
• Bulb Shape: T8 U-bend
• Base: G13
• Finish: White
• Correlated Color Temperature (CCT): 3500K
• Lumens: 1950 lm
• Color Rendering Index (CRI): 83
• Beam Angle: 160¬∞
• Maximum Overall Length (MOL): 22.50 in
• Nominal Length: 22.50 in
• Rated Life: 50,000 hours
• Operating Temperature Range: -20¬∞C to 45¬∞C
• UPC: 045923119712
• Product Weight: 0.91 lbs

Features

• Direct replacement for fluorescent U-bend lamps compatible with fixtures with or without ballasts
• Dual mode operation: ballast compatible (Type A) and ballast bypass (Type B) in one lamp
• Bypass mode supports single-ended or double-ended wiring configurations
• Up to 60% energy savings compared to standard T8 fluorescent systems
• Shatterproof plastic construction for enhanced durability
• Protection from arcing with thermal fuse activation to prevent overheating
• Dimmable only in ballast-dependent (Type A) mode with compatible dimmable ballasts
• Suitable for damp locations
• 5-year warranty
• Installation options include direct plug-and-play or ballast bypass rewiring for retrofit versatility
