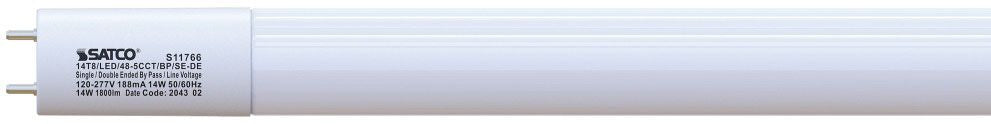

SATCO S11766 14W LED Lamp - LED T8 Linear Lamp

The SATCO S11766 14W LED Lamp is a ballast bypass LED T8 linear lamp designed as a direct replacement for fluorescent T8 lamps. It is suitable for use in residential, commercial, and industrial lighting applications, providing energy-efficient lighting solutions. This lamp supports single or double-ended wiring configurations and is compatible with line voltage (120-277V) systems. It is ideal for electrical distributors and lighting solution providers seeking reliable LED retrofit options.

Specifications

• Wattage: 14W
• Lumens: 1700/1700/1800/1800/1800 (depending on CCT)
• Voltage: 120-277V
• Color Temperature (CCT): Selectable 3000K / 3500K / 4000K / 5000K / 6500K
• Length: Approximately 47.22 to 47.78 inches (4 Foot)
• UPC: 045923117664
• Product Weight: 0.5760 lbs
• Certification: c-UL-us classified, DLC listed, suitable for damp locations and enclosed luminaires

Features

• CCT selectable with ColorQuick technology for switching between multiple color temperatures
• Ballast bypass installation for direct line voltage operation
• Compatible with single or double-ended wiring setups
• Full glass housing resists aging, yellowing, and bending
• Direct replacement for fluorescent T8 lamps, facilitating easy retrofit
• Suitable for use with SATCO emergency LED driver model S8000
• 5-year warranty
• Complies with FCC Part 15 regulations

Downloads & Links

• Spec Sheet
• Spec Sheet
