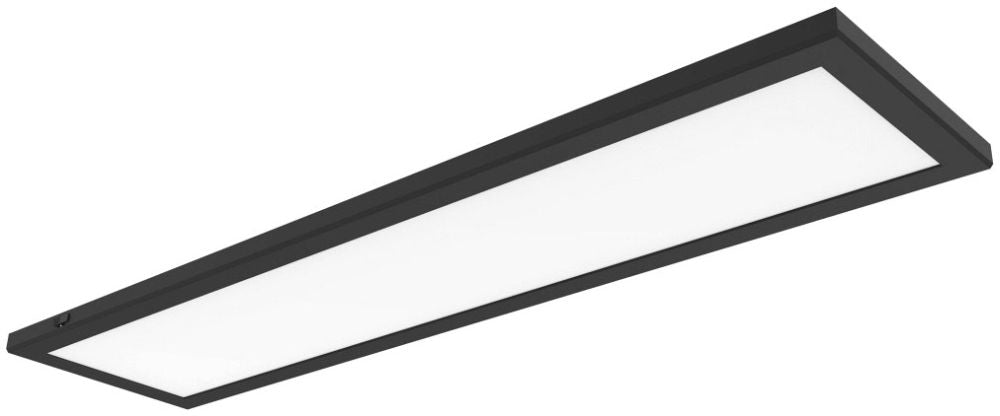

SATCO 62/1783 Surface Mounted LED Lighting Fixture

The SATCO 62/1783 is a surface-mounted LED fixture designed for interior lighting applications. It is suitable for electrical distributors and lighting solutions providers requiring reliable, energy-efficient fixtures compatible with standard 120/277V circuits. This rectangular LED fixture offers versatile use in commercial and residential environments, especially where damp location suitability is required.

Specifications

• Manufacturer: Satco
• Manufacturer Part Number: 62-1783
• Dimensions (L x W x H): 23.7 in x 11.83 in x 1.06 in
• Product Weight: 6.27 lbs
• UPC: 045923613128
• Finish: Black
• Wattage: 24W
• Lumens Output: 1650L-1850L
• Efficacy: 77.08 LPW
• Input Current @120/277V: 0.2/0.087A
• Shape: Rectangular
• Mounting: Surface mount with heavy-duty mounting bracket
• Color Temperature: CCT selectable 2700K, 3000K, 3500K, 4000K, 5000K
• Suitable Locations: Interior, damp locations
• Dimmable: Yes, compatible with select dimmers
• Warranty: 5 years

Features

• CCT selectable LED fixture allowing color temperature adjustment from 2700K to 5000K
• Energy-efficient LED technology with high efficacy up to 77 LPW
• Durable black finish suitable for various interior design schemes
• Simple installation with included mounting brackets and safety cable option
• Suitable for use in damp locations and environments with non-conductive dust accumulation
• Complies with FCC Part 15 for minimal radio frequency interference
• Compatible with 120/277V electrical supply
• Listed for use with dimmers (consult manufacturer for compatible models)
• Designed for safe and reliable operation with Class 2 external power supply connection
