Safety Switch, 60A, 3P, 240V, Type DG, Non-Fusible
SKU: #162751
Part: #DG322URB
UPC: 782113144313
Safety Switch, 60A, 3P, 240V, Type DG, Non-Fusible
SKU: #162751
Part: #DG322URB
UPC: 782113144313
Description

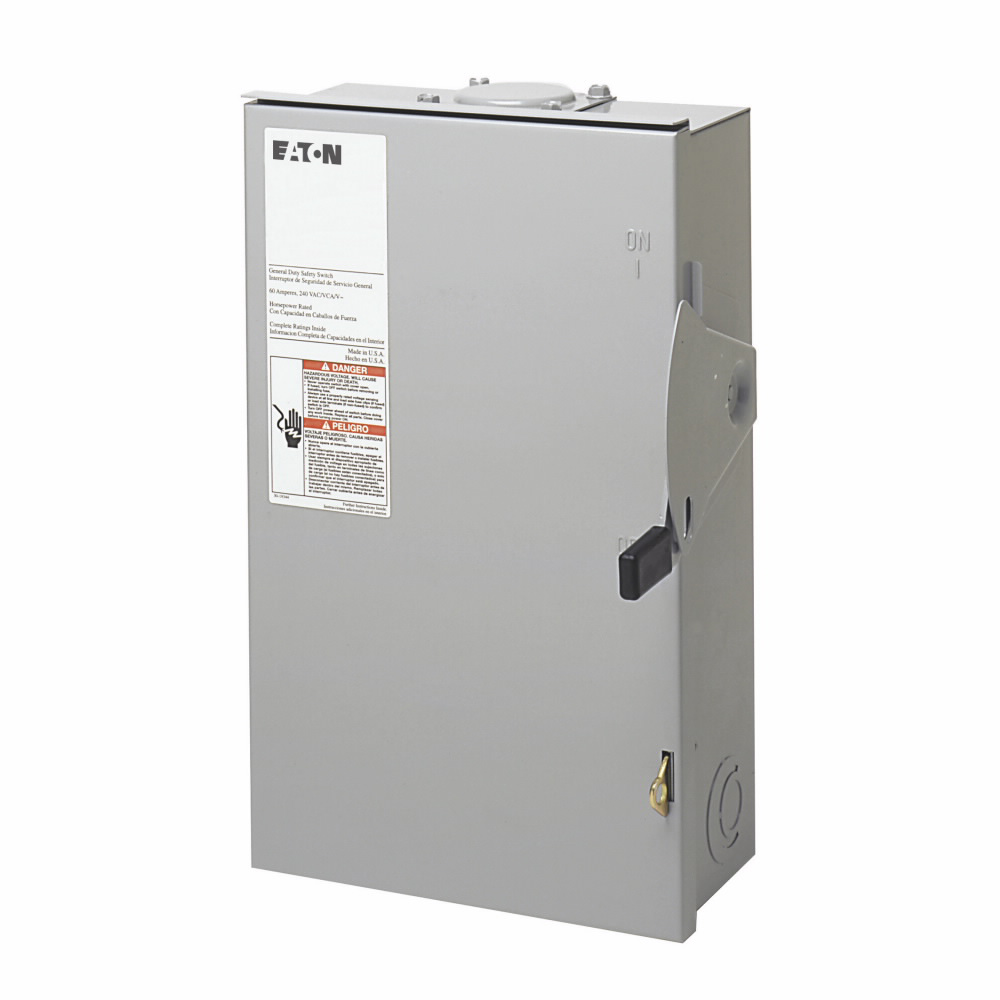

Safety Switch, 60A, 3P, 240V, Type DG, Non-Fusible - Heavy-Duty Safety Switch
The Eaton Safety Switch, model DG322URB, is a 60 ampere, 3-pole, 240V heavy-duty non-fusible safety switch designed for reliable power isolation and protection in commercial and industrial electrical distribution systems. This switch is suitable for use by electrical distributors, wire and cable suppliers, and switchgear suppliers seeking durable, code-compliant disconnect solutions. Its painted galvanized steel enclosure rated NEMA 3R provides protection against rain and sleet, making it suitable for outdoor or damp locations.
Specifications
- Manufacturer: Eaton
- Amperage: 60 amperes
- Voltage: 240 volts
- Number of Poles: 3 poles
- Enclosure Rating: NEMA 3R
- Enclosure Material: Painted Galvanized Steel
- Dimensions (HxWxD): 14.19 in x 8.69 in x 7.38 in
- Product Weight: 9.0 lbs
- Manufacturer Part Number: DG322URB
- UPC: 782113144313
Features
- Heavy-duty construction for demanding electrical distribution environments
- Non-fusible design for applications requiring a disconnect without overcurrent protection
- Painted galvanized steel enclosure ensures corrosion resistance and durability
- NEMA 3R rating allows for outdoor installation with protection against rain and sleet
- Compact dimensions facilitate installation in existing panels or enclosures
- Factory-installed ground lug for enhanced safety and grounding reliability
- Compatible with Eaton’s comprehensive range of accessories and modification options through the Flex Center
