SAF FLOORBOX BLK TILE COVER&TRIM
SKU: #281893
Part: #SAF21/2-KT
UPC: 786564141419
SAF FLOORBOX BLK TILE COVER&TRIM
SKU: #281893
Part: #SAF21/2-KT
UPC: 786564141419
Description

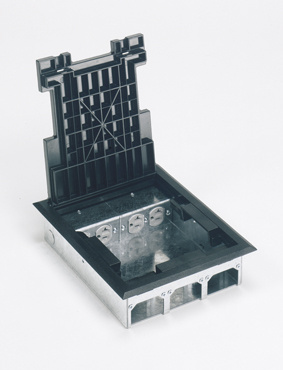

SAF FLOORBOX BLK TILE COVER&TRIM - Raised Floor Box for Electrical and Communication Applications
The SAF21/2 Shallow Raised Floor Box by Wiremold is engineered for installation in floor depths of 2 1/2 inches, providing a versatile solution for managing power, communication, and audio/video devices in commercial and institutional environments. This floor box is suitable for applications requiring separation of power and low-voltage communication services, making it ideal for electrical distributors and switchgear suppliers needing reliable floor box solutions compatible with raised floor systems.
Specifications
- Overall Trim Ring: 9 1/8" x 11" [232mm x 279mm]
- Module Depth Overall: 2.5" [64mm]
- Panel Opening: 8" x 10" [203mm x 254mm]
- Cover Size: 7 1/2" x 9 1/2" [191mm x 242mm]
- Activation Volume: 18.5 cu in. [303 ml]
- Power Volume: 29 cu in. [475 ml]
- Maximum Floor Panel Thickness with Floor Covering: 1 3/16" [30mm]
- Knockouts: Four (4) 1/2" Trade Size Concentric KOs for power; Three (3) 1/2" Trade Size Concentric KOs for communication
- Service: Triple (power, communication, audio/video)
- Maximum Floor Thickness: 1 3/8" [35mm] including floor covering
- Cable Entry: Through Floor
- Construction: Assembled
- Made in USA
- Product Weight: 5.5 lbs
- Country of Origin: United States
Features
- Two compartments designed to separate power devices from communication and audio/video devices
- Accommodates two duplex receptacles on one side and up to six communication devices on the other
- Hinged polycarbonate lid and trim flange available in black, brown, or gray for carpet or tile applications
- Includes two duplex receptacle power plates (receptacles not included) and three blank communication plates
- Communication compartment cover plate included for use in air handling spaces, meeting NEC Section 300-22(C) compliance
- Four 1/2" trade size knockouts located on the sides for power device conduit feed
- Accepts up to two SG2 Power Plates and up to three SGC2 Communication Plates; custom plates available via factory consultation
- Designed for installation in raised floor systems; not suitable for concrete or wood floors
