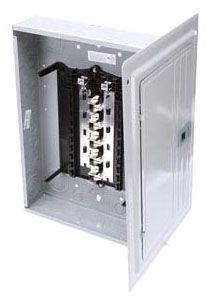

S2020L1125 Main Lug Load Center by Siemens

The Siemens S2020L1125 is a main lug load center designed for residential electrical distribution. It supports a 1-phase, 3-wire system with a 120/240V rating and a 125-ampere capacity. Suitable for indoor use, it provides reliable circuit protection and distribution for up to 20 circuits. This load center is ideal for electrical distributors and switchgear suppliers focusing on residential wire and cable applications and lighting solutions requiring dependable load management.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: S2020L1125
• Current Rating: 125 amperes
• Voltage Rating: 120/240 V
• Phase Number: 1
• Number of Spaces: 20 (1-inch spaces)
• Interrupting Rating: 100 kA
• Switching Capacity Current (EN 60898): 22,000 A
• Busbar Configuration: 125 A
• Fastening Method: Combination
• Suitability: Residential use
• Enclosure Type: NEMA Type 1, indoor use
• Bus Material: Aluminum
• Trim Color: Gray
• Weight: 23 lbs

Features

• Main lug design for load center applications
• Supports up to 20 circuits with 1-inch modular width spaces
• Aluminum bus for efficient conductivity
• Gray trim with NEMA Type 1 enclosure suitable for indoor installation
• Complies with residential electrical standards
• High interrupting capacity of 100 kA for enhanced safety
• Combination fastening method for secure mounting
