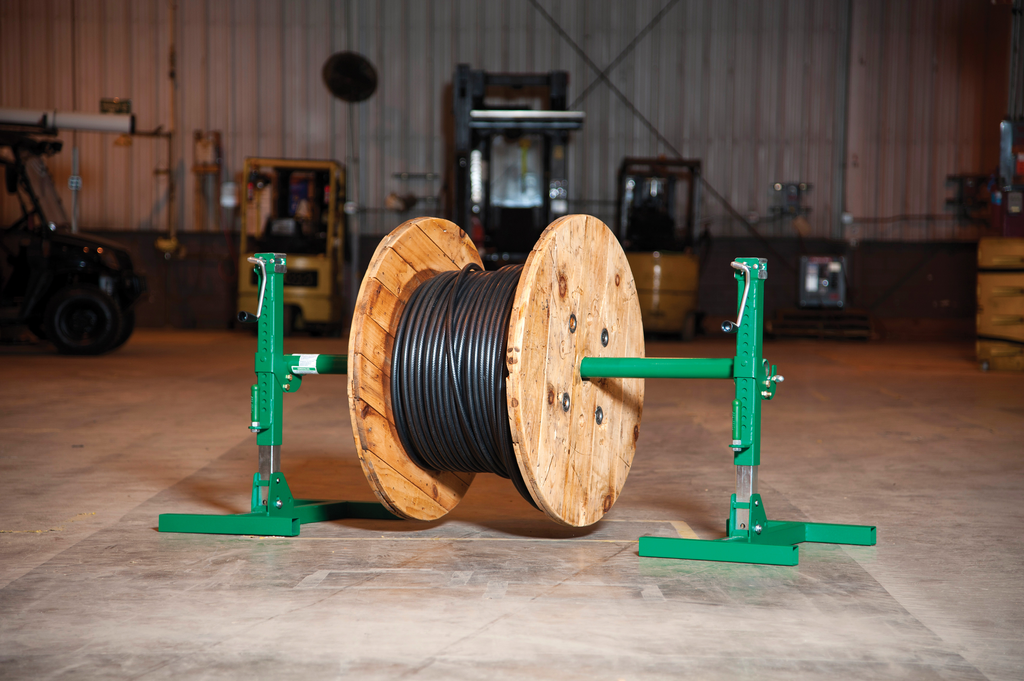

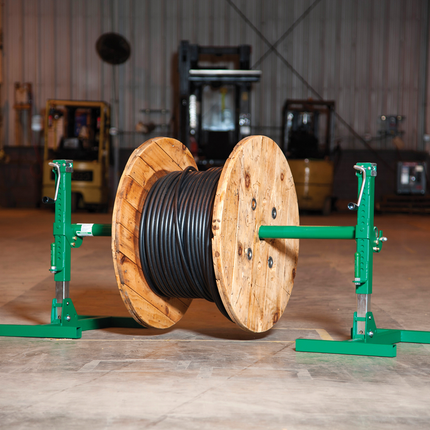

RXM Quick Adjust Reel Stand – Cable Reel Dispensing Equipment

The Greenlee RXM Quick Adjust Reel Stand is designed for efficient dispensing of cable from reels, providing a secure and rapid setup solution for electrical distributors and lighting solutions providers. This reel stand is engineered to accommodate various cable reel sizes and weights, ensuring smooth and safe cable handling in wire and cable applications. It is a reliable accessory for switchgear suppliers and electrical contractors requiring precise cable management.

Specifications

• Material: Steel
• Color: Green
• Weight: 35 lb (15.9 kg)
• Dimensions: 37.25" Length x 17.625" Width x 10" Height
• Storage Dimensions: 37" x 17" x 11" (940 x 432 x 279 mm)
• Capacity: 3000 lb (1360 kg) per unit
• Reel Diameters Supported: 21" to 72" (533 to 1829 mm)
• Spindles:
  • 647: For loads up to 6000 lb (2722 kg), 47" (1194 mm) max. reel width
  • 684: For loads up to 5000 lb (2268 kg), 61" (1549 mm) max. reel width
• Made in USA
• Manufacturer Part Number: 52076394

Features

• Open head design for fast, top loading of spindle with forward extensions to secure during cable dispensing
• Quick adjust feature allows pivoting and sliding the head to rapidly accommodate different spool diameters
• Sidewind crank reduces wrist, hand, and forearm muscle effort during operation
• Compact and lightweight design enhances portability and reduces risk of lower leg injury
• Rubber carry handle for comfortable transport around job sites
• Large base footprint for stability during use
• Fold-down reel stand with quick release pin for convenient transport and compact storage

Downloads & Links

• Owners Manual
• Spec Sheet
