RWLED4T50SFRG/PCS2 LED Roadway Lighting

The RWLED4T50SFRG/PCS2 by RAB is a specification-grade LED roadway lighting fixture designed for efficient and uniform illumination of entrance roadways, collector roads, and single-sided roads. It is suitable for electrical distributors and lighting solutions providers focusing on outdoor lighting applications requiring durable, high-performance fixtures. This model replaces traditional 200W metal halide fixtures with a 50W LED solution, offering significant energy savings and long service life.

Specifications

• Manufacturer: RAB
• Model Number: RWLED4T50SFRG/PCS2
• Input Wattage: 55 watts
• Lumens: 7,517 lumens
• Efficacy: 135 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 71 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Rating: Up to 104¬∞F (40¬∞C)
• Minimum Starting Temperature: -40¬∞C (-40¬∞F)
• Weight: 32 lbs
• IP Rating: IP66 for dust and water protection
• Vibration Rating: 5G per ANSI C136.31
• LED Lifespan: 100,000 hours (L70)
• Distribution Type: IES Type IV (Forward Throw)
• Mounting: Slipfitter with 180¬∞ pivot for 2 3/8" tenon
• Driver: Constant Current, Class 2, 1400mA, 100-277V, 50-60Hz, Power Factor 99%
• Photocell: 277V Swivel photocell included (compatible with 208V-277V)
• Surge Protection: 6kV tested per IEEE/ANSI C62.41.2
• DLC Listed: Yes (DLC Product Code: P0000178F)
• UL Listed: Suitable for wet locations as a downlight

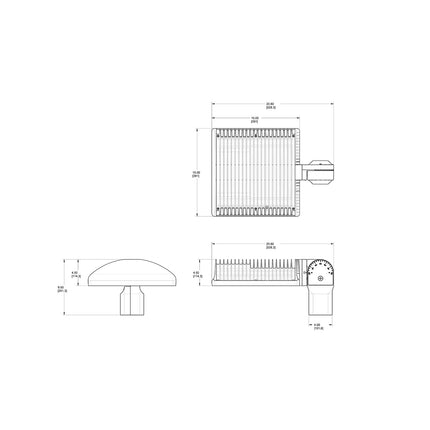

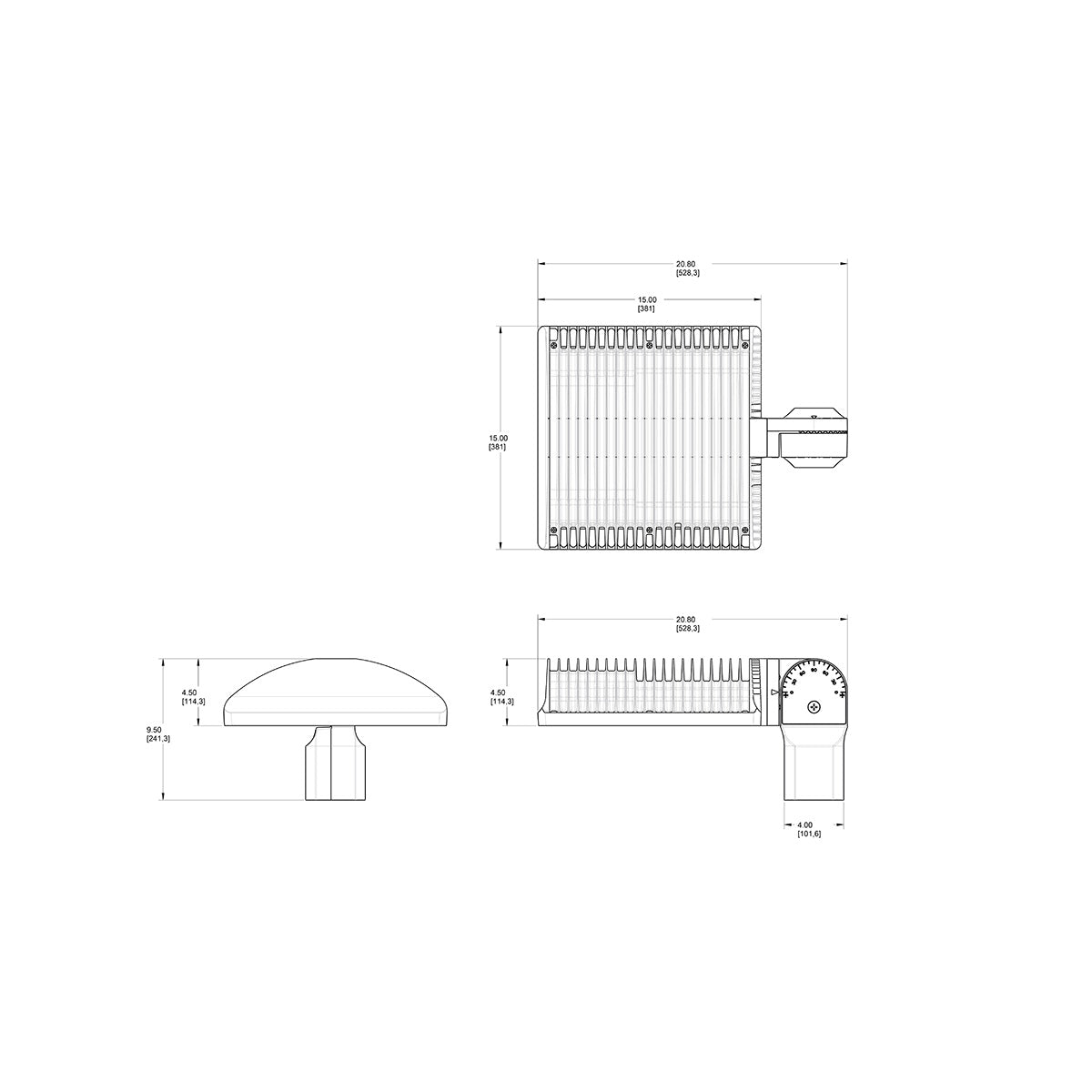

• Dimensions: 20.8" length x 15" width x 4.5" height (lens area); total height 9.5"

Features

• Replaces 200W metal halide fixtures with a 50W LED for energy efficiency
• Specification-grade optics for clean, uniform light distribution
• Superior thermal management with external air-flow fins for maximum operational life in high ambient temperatures
• High durability die-cast aluminum housing with gray finish
• Easy-access electrical compartment for fast and secure wiring
• 7-step MacAdam Ellipse color binning for consistent fixture-to-fixture color
• Color temperature stability warrantied to shift no more than 200K over 5 years
• High-temperature silicone gaskets for weather resistance
• Industry-leading 5G vibration rating for durability in demanding environments
• 10-year warranty covering light output, color stability, driver performance, and fixture finish
• Compatible with Buy American Act compliance upon request

Downloads & Links

• Spec Sheet
• Instructions
