RWLED3T125SFRG/BL LED Roadway Light

The RWLED3T125SFRG/BL is a specification-grade LED roadway lighting fixture designed for efficient outdoor illumination. Suitable for roadway, general parking, and area lighting applications, this product delivers uniform Type III light distribution with high efficacy and long lifespan. Ideal for electrical distributors and lighting solutions providers, it replaces traditional 350W metal halide fixtures with a 125W LED alternative, offering energy savings and reduced maintenance. The fixture features durable construction and advanced thermal management, making it reliable for use in various environmental conditions.

Specifications

• Manufacturer: RAB
• Input Wattage: 134 watts
• Lumens: 14,891 lumens
• Efficacy: 110 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy: 70 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Rating: 104¬∞F (40¬∞C)
• Minimum Starting Temperature: -40¬∞C (-40¬∞F)
• Product Weight: 31 lbs
• Distribution Type: IES Type III
• IP Rating: IP66 (dust and water resistant)
• Vibration Rating: 5G per ANSI C136.31
• L70 Lifespan: 100,000 hours
• Mounting: Slipfitter with 180¬∞ pivot for 2 3/8" tenon

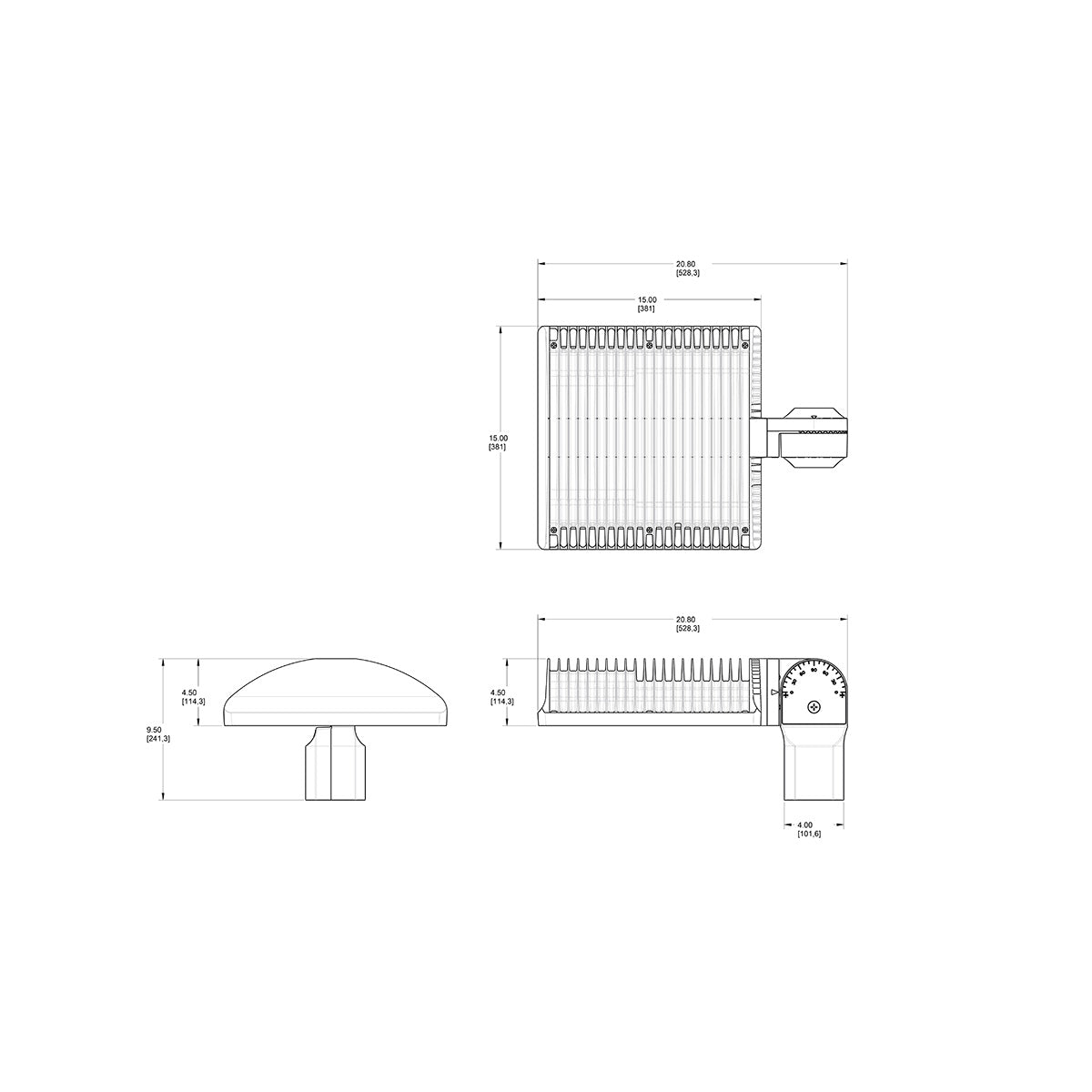

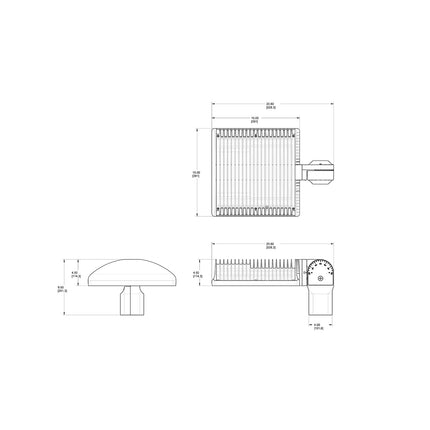

• Dimensions: 20.8" length x 15" width x 9.5" height

Features

• Specification-grade optics delivering efficient, uniform light distribution
• Bi-level operation allowing 50% and 100% output modes
• Superior thermal management with external air-flow fins for extended life
• Die-cast aluminum housing with high-durability finish
• Specular vacuum-metallized polycarbonate reflector
• High-temperature silicone gaskets for environmental sealing
• Mercury and UV free, RoHS-compliant components
• 6kV surge protection tested to IEEE/ANSI standards
• Easy-access electrical compartment for fast and secure wiring
• 10-year warranty covering light output, color stability, driver performance, and fixture finish
• DLC Qualified and UL Listed for wet locations
• Industry-leading vibration resistance for reliable operation in demanding environments
• Compatible with 0-10V dimming and photocell options

Downloads & Links

• Spec Sheet
• Instructions
