RTQ™ XR™ RG-6 F Compression Connector - Universal Coaxial Cable Solution

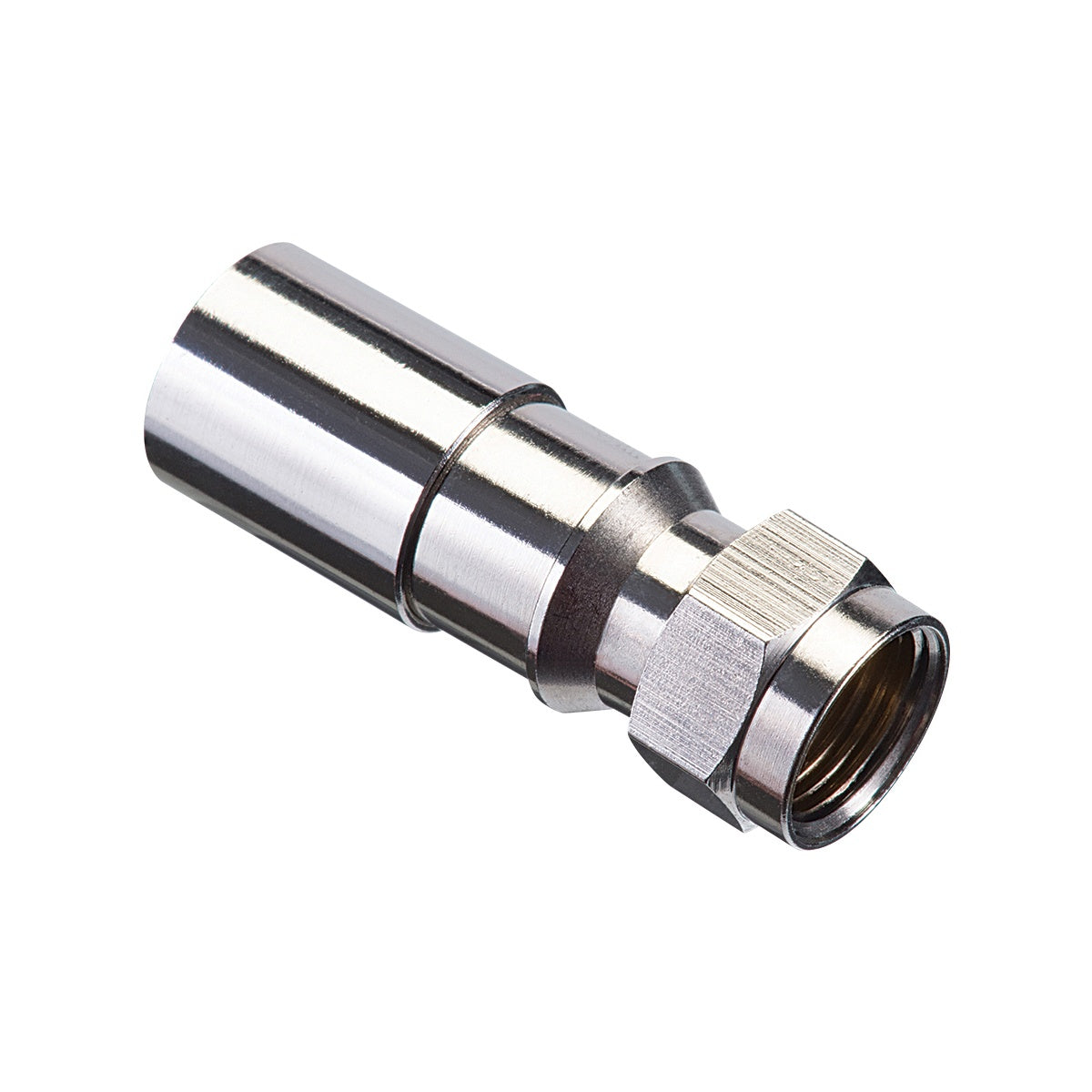

The RTQ™ XR™ RG-6 F Compression Connector by IDEAL Industries is a versatile electrical component designed for the termination of RG-6 coaxial cables, including plenum rated versions. Suitable for indoor and outdoor applications, this connector supports cable types such as RG-6, RG-6 Quad, RG-6 Plenum, and RG-6 Quad Plenum, making it an efficient solution for electrical distributors and lighting solutions providers handling wire and cable or switchgear supplies. It is rated for frequencies from 5MHz to 3GHz, covering CATV, satellite, HDTV, and other A/V applications.

Specifications

• Material: Brass
• Finish: Nickel Plated
• Dimensions (L x W x H): 5.25 in x 2.75 in x 2.5 in
• Product Weight: 1.18 lbs
• Application: Termination of an F Type connection, compression style, RG6
• Frequency Range: 5MHz to 3GHz
• Impedance: 75Ω
• Cable Jacket Diameter Compatibility: 0.226” - 0.310”
• Cable Dielectric Diameter Compatibility: 0.168” - 0.183”
• Cable Preparation: Industry standard 1/4” x 1/4”
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 92-650

Features

• Universal connector fits multiple RG-6 cable types, reducing inventory needs
• Patented compression sleeve design with an internal O-ring for robust, weatherproof sealing
• All-brass exterior ensures durability and reliable electrical performance
• Nickel plating provides corrosion resistance for indoor and outdoor use
• Internal sealing compression sleeve prevents moisture ingress and enhances cable retention (>80 lbs pull force)
• Compatible with IDEAL OmniSeal™ Pro XL and LinearX®3 compression tools, as well as non-IDEAL tools
• Supports a wide range of coaxial cable types including plenum rated cables
• Designed for permanent attachment with standard 21mm compression stroke
