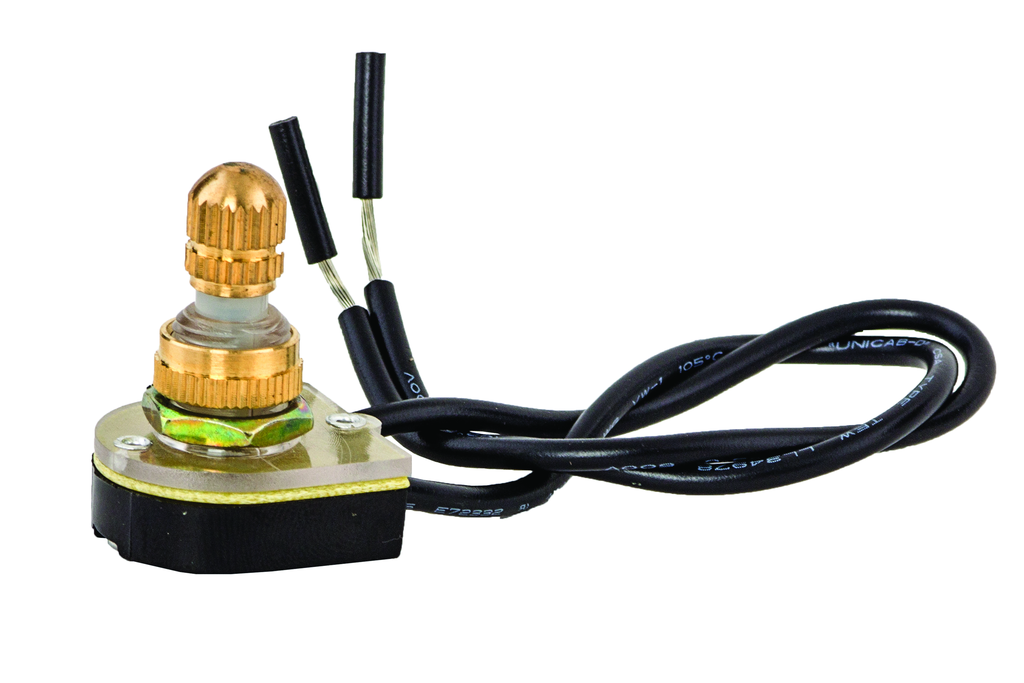

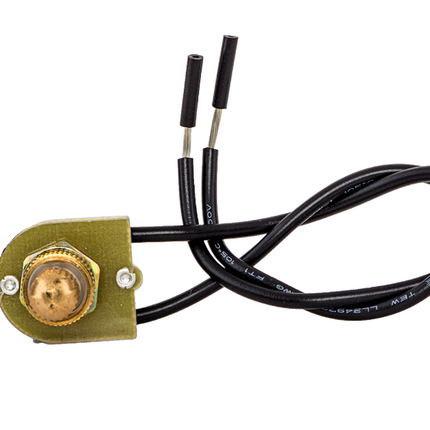

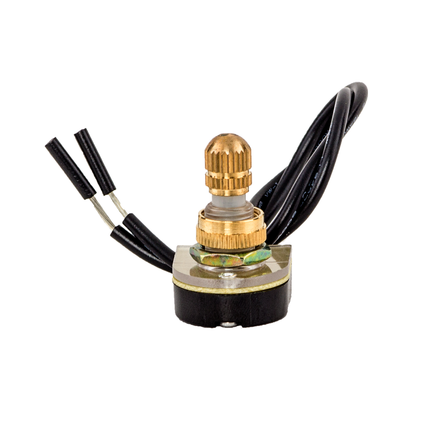

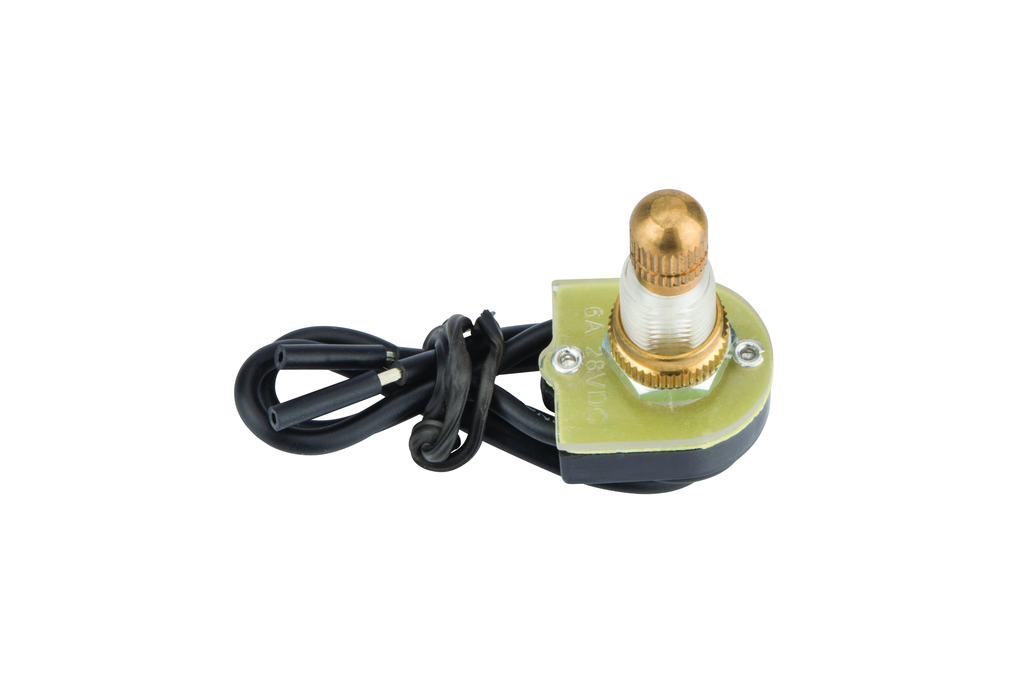

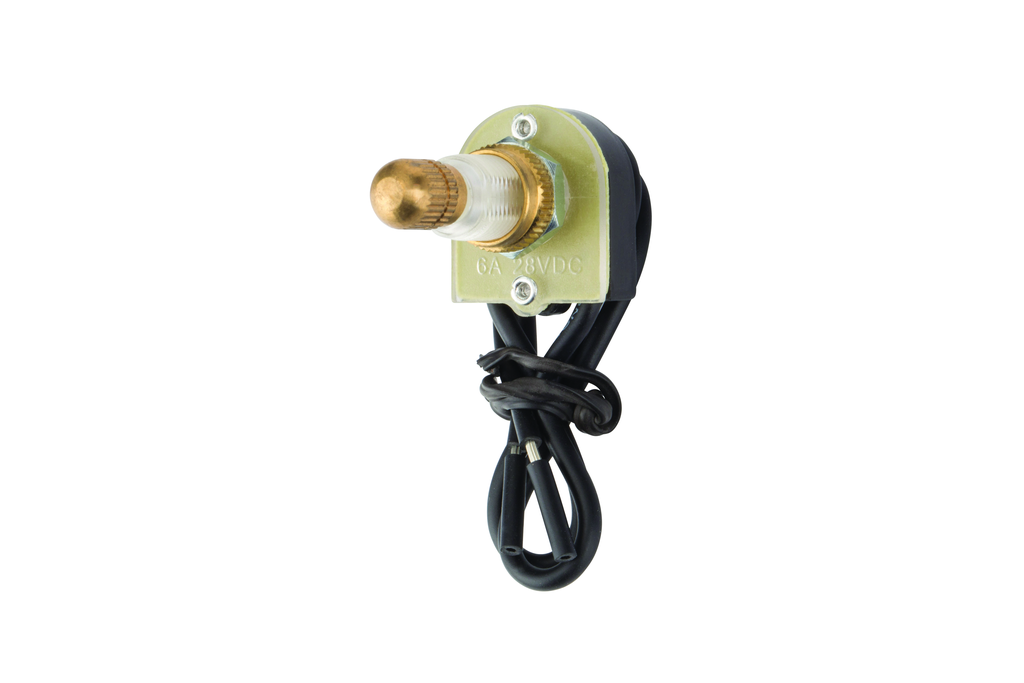

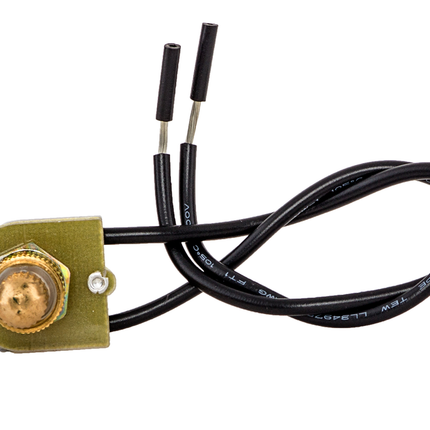

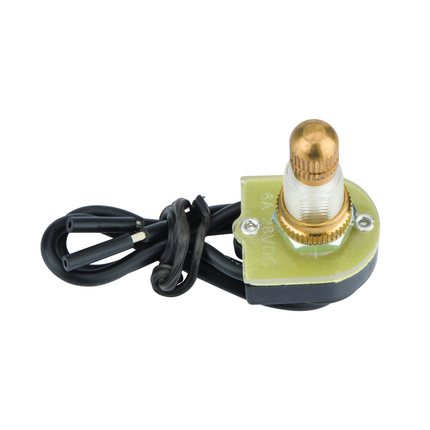

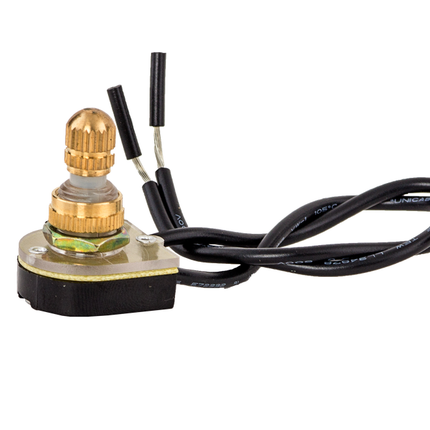

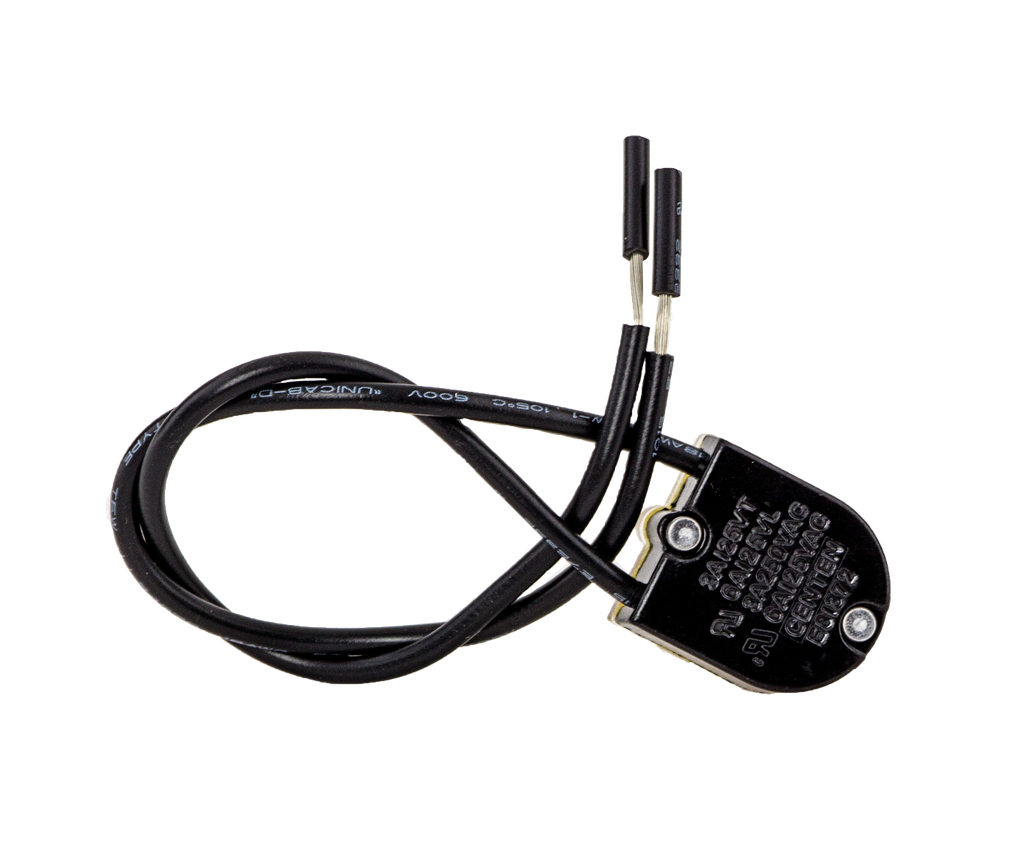

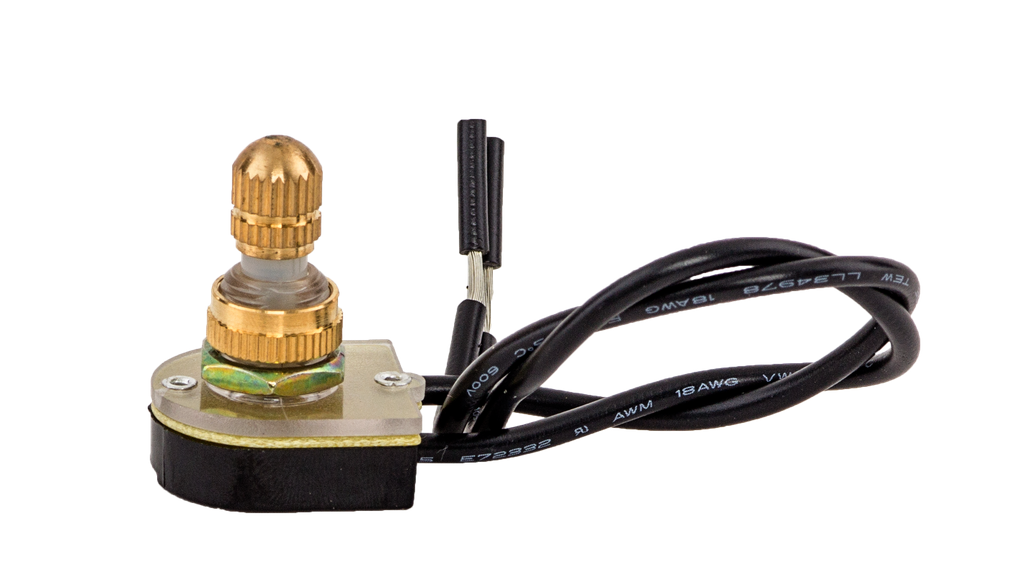

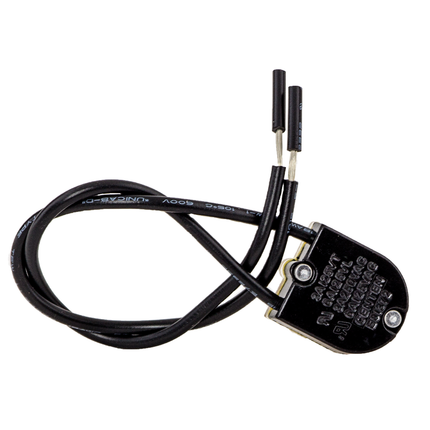

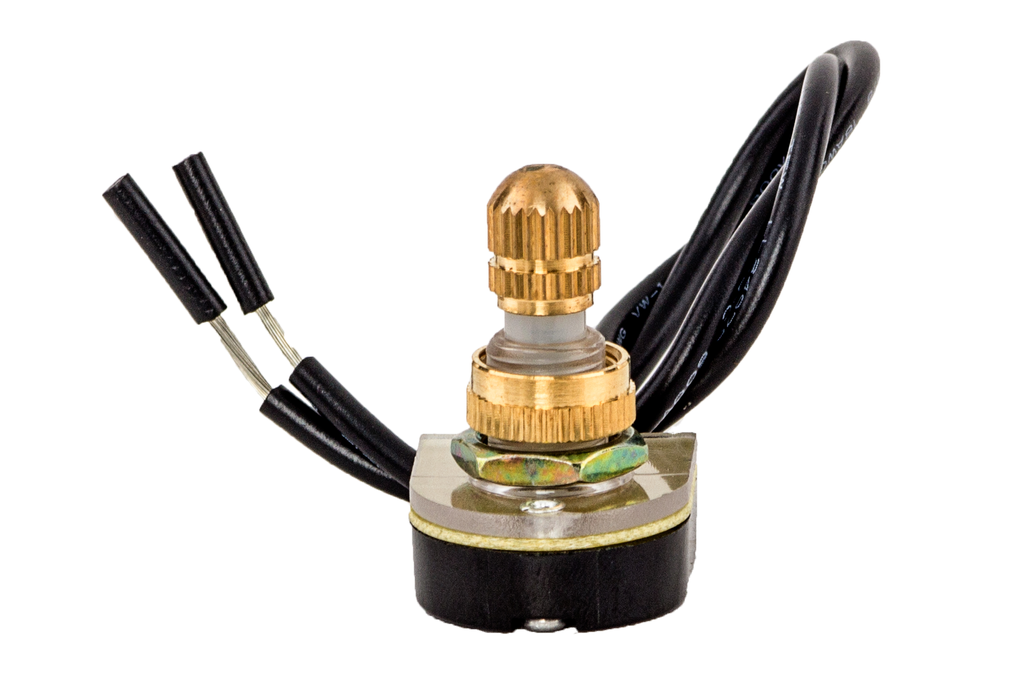

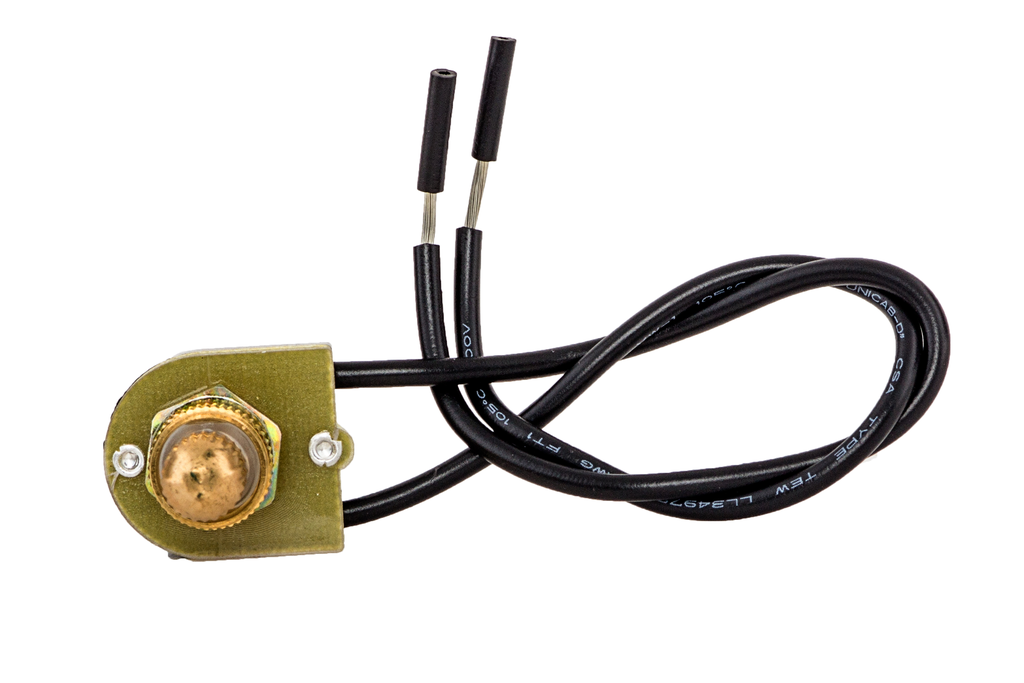

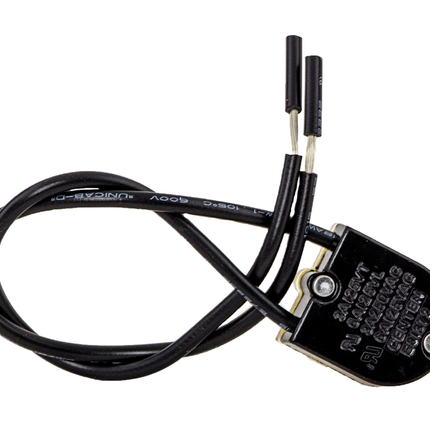

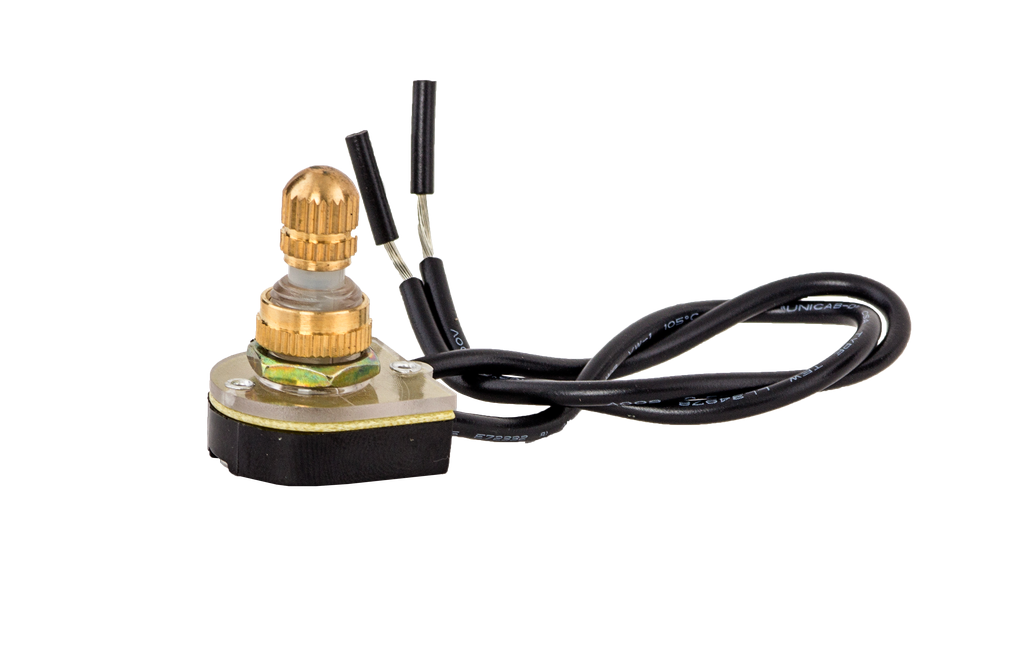

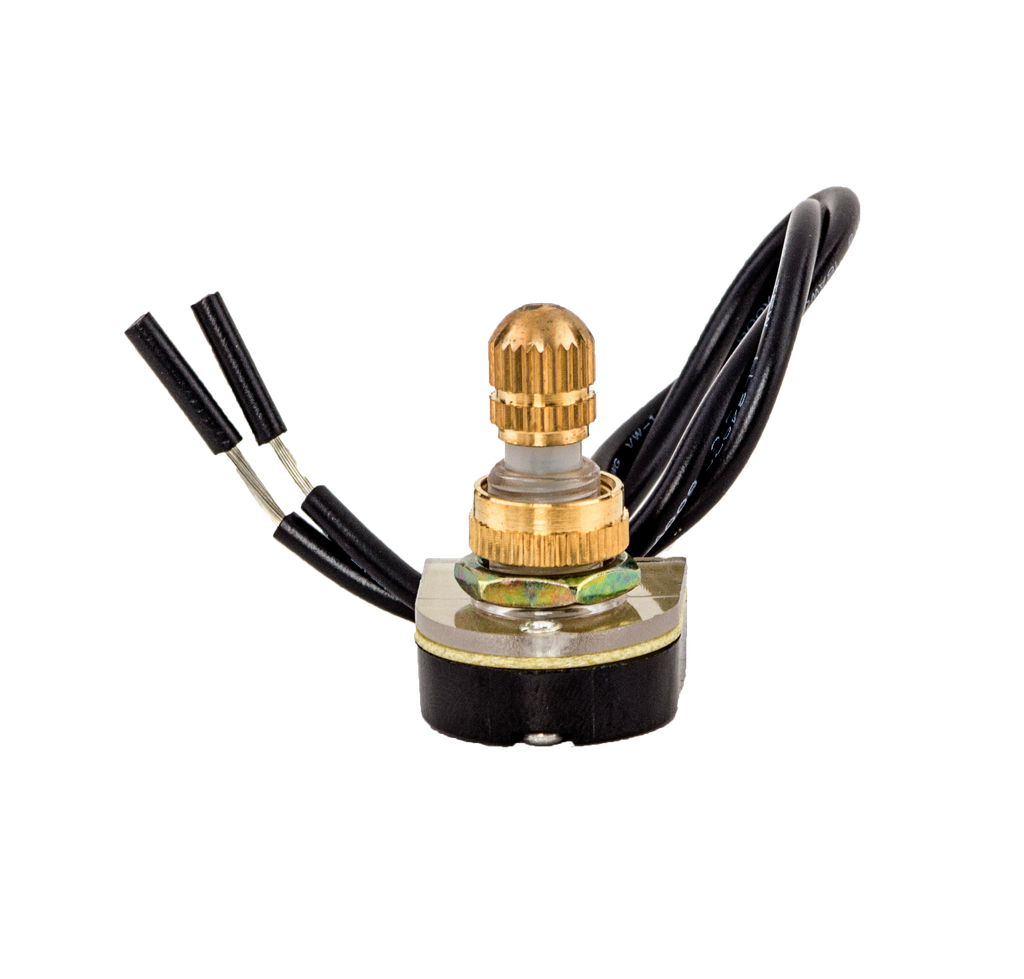

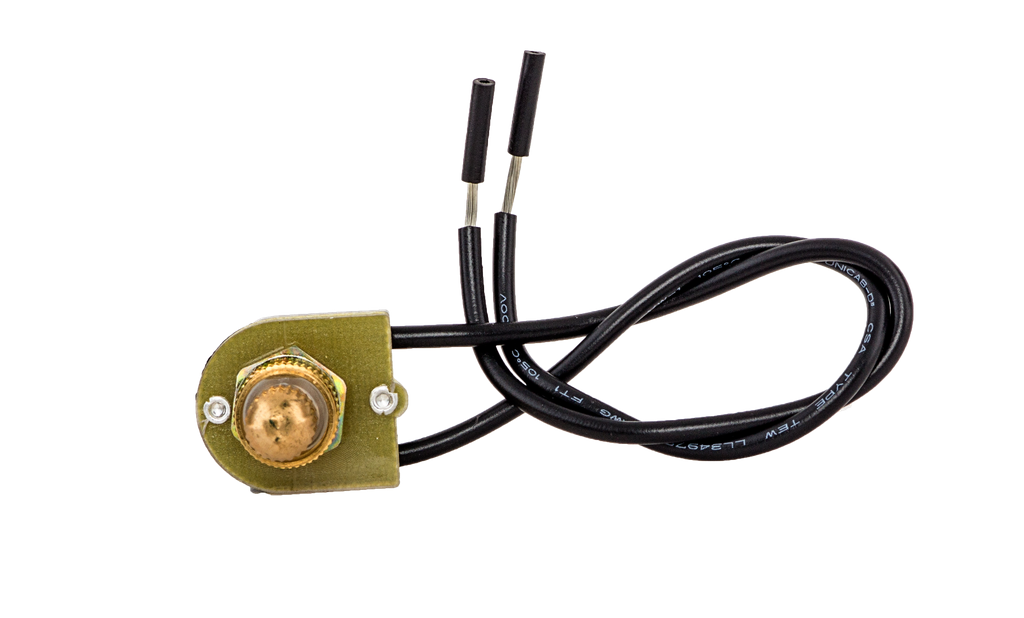

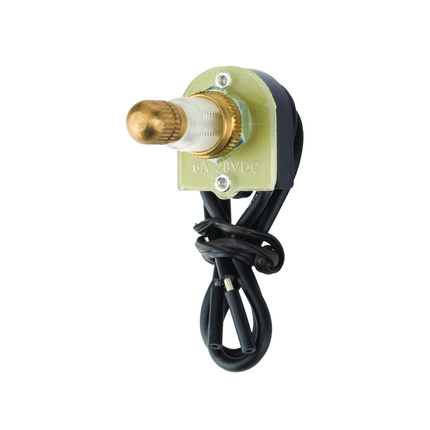

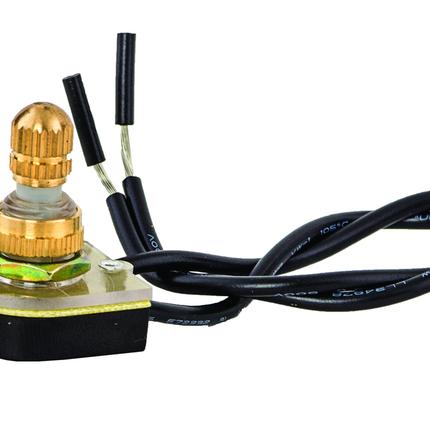

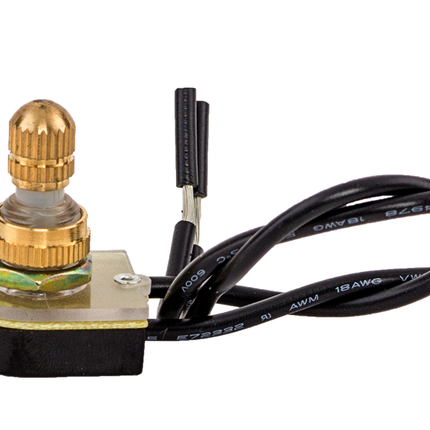

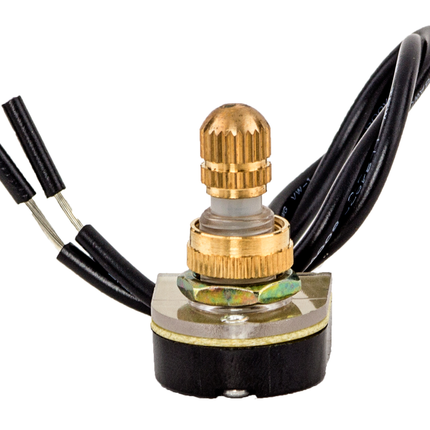

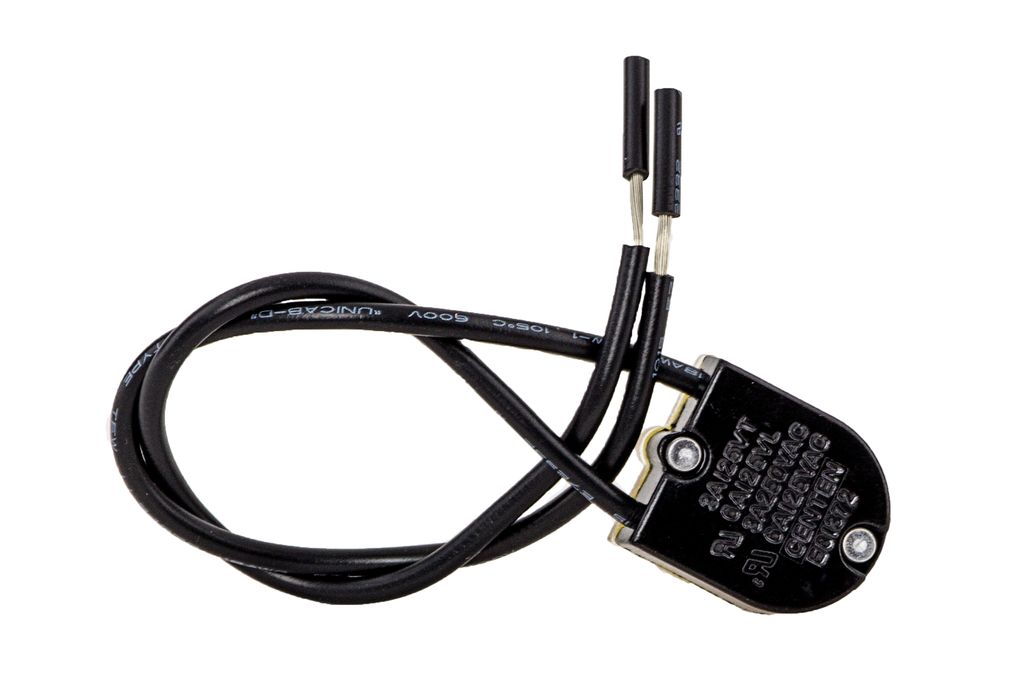

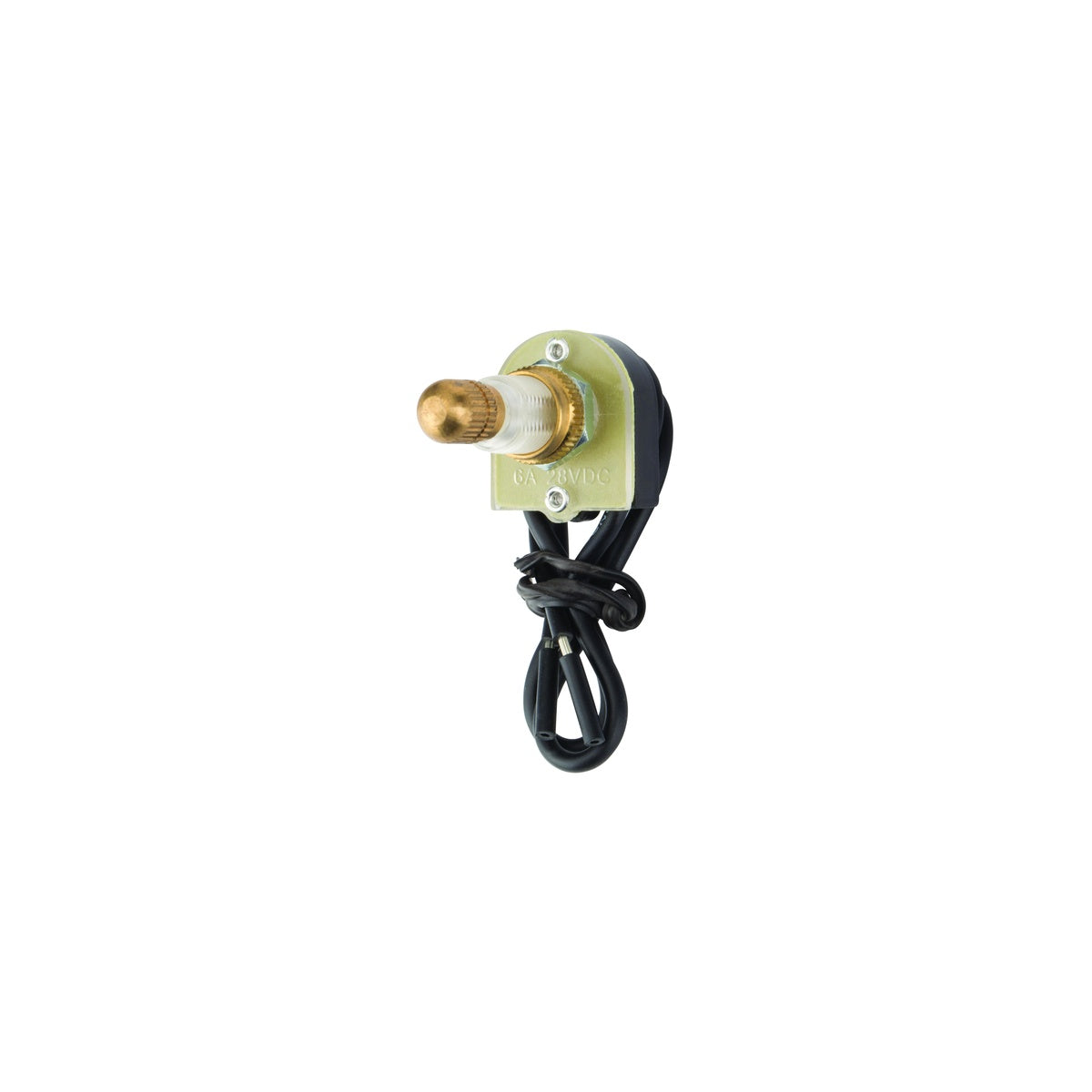

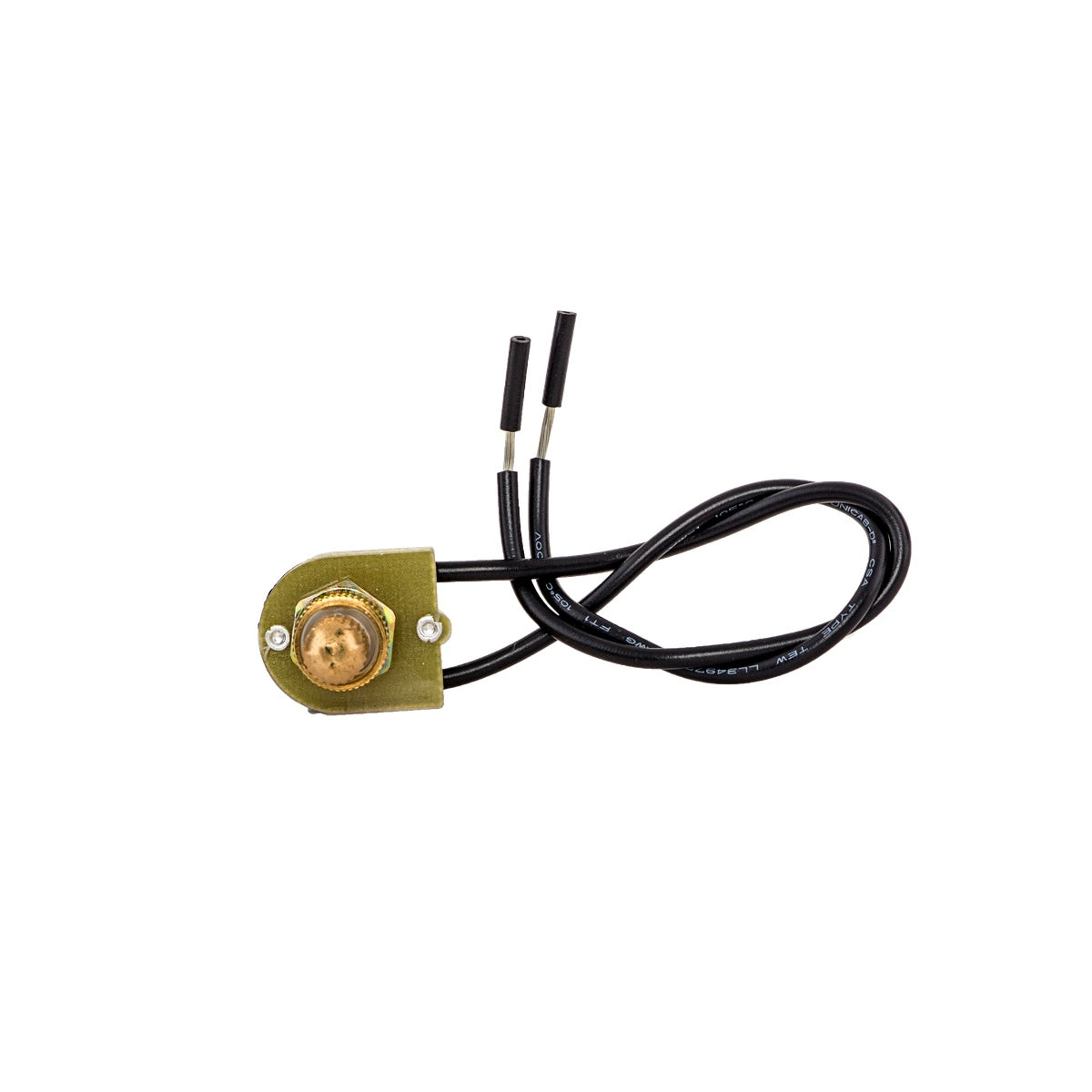

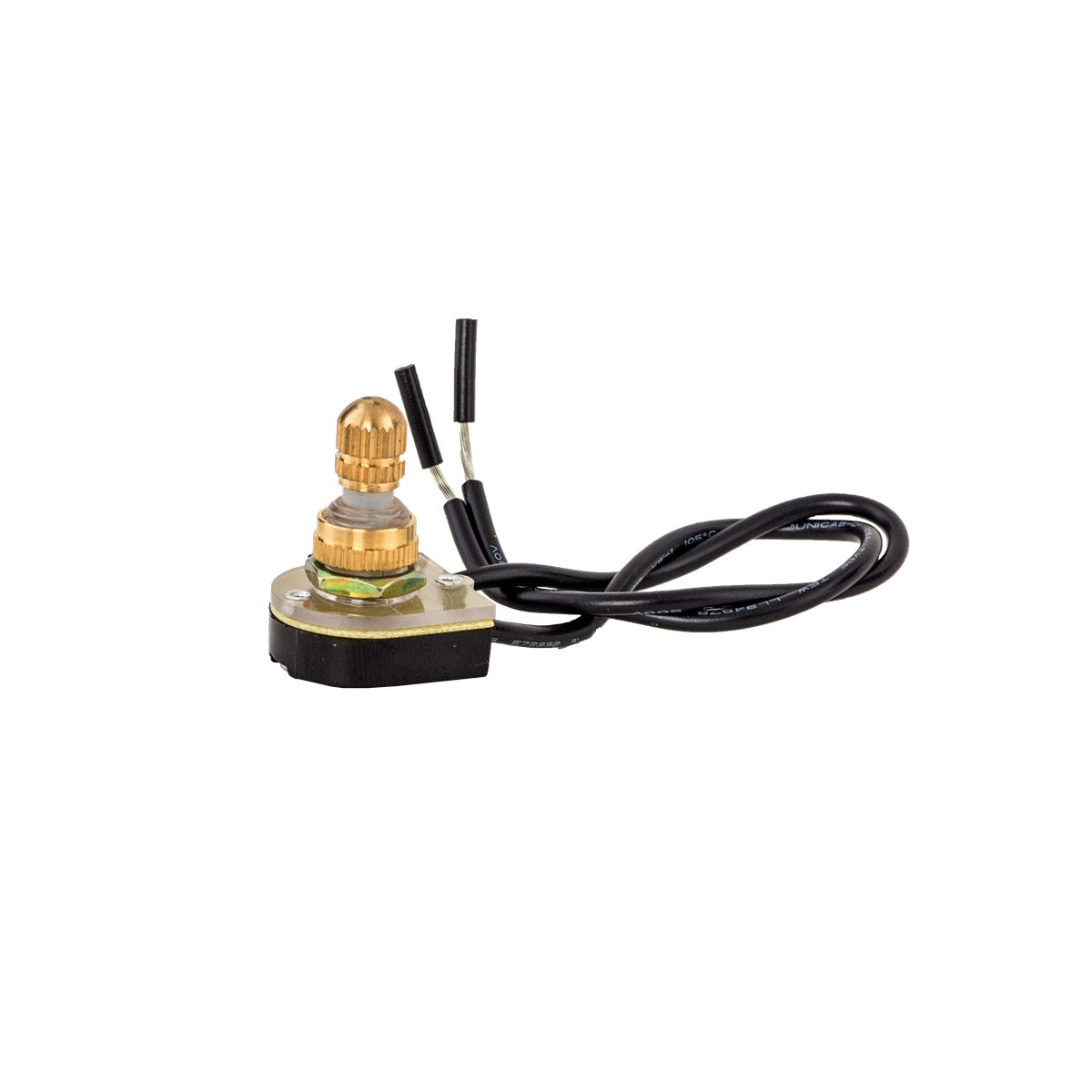

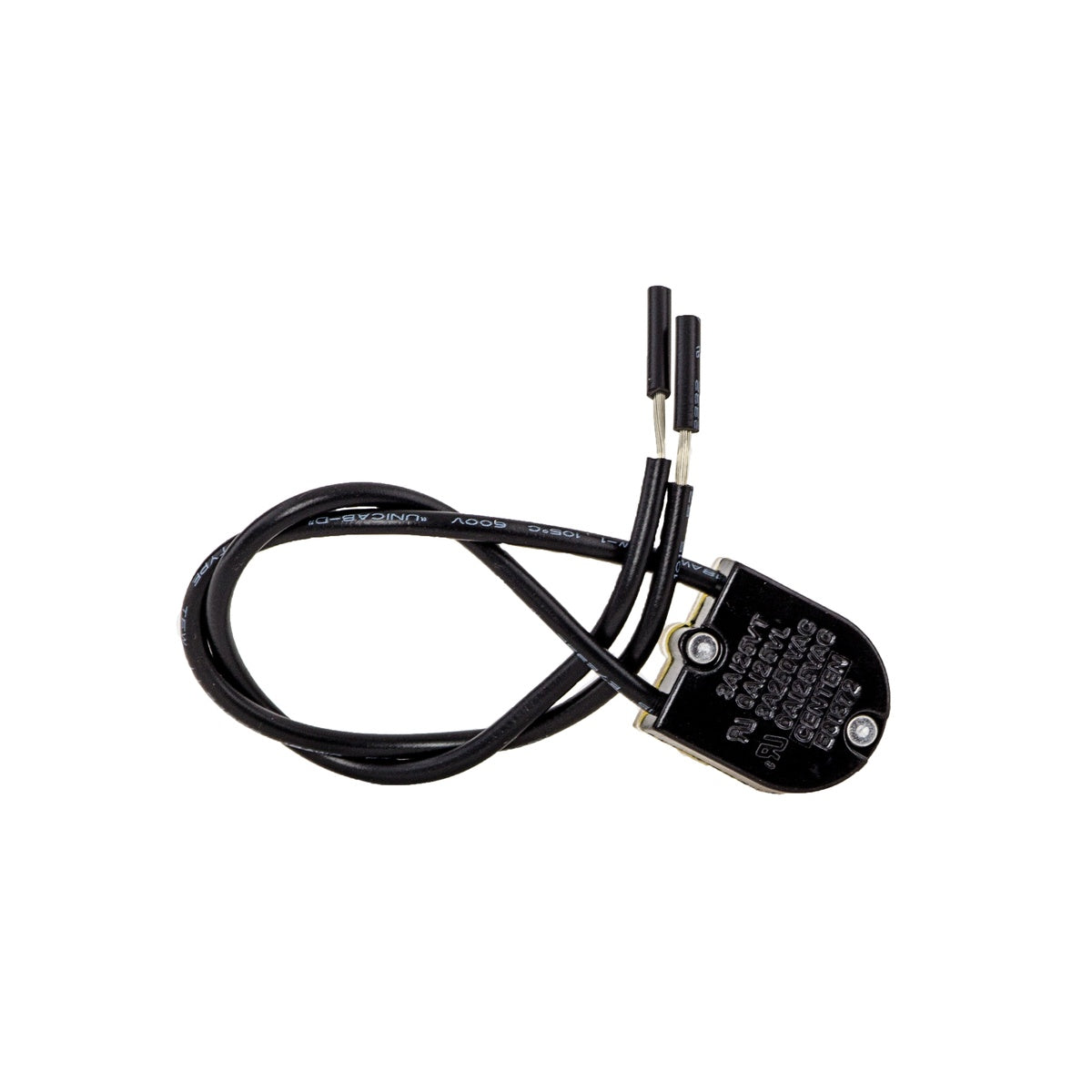

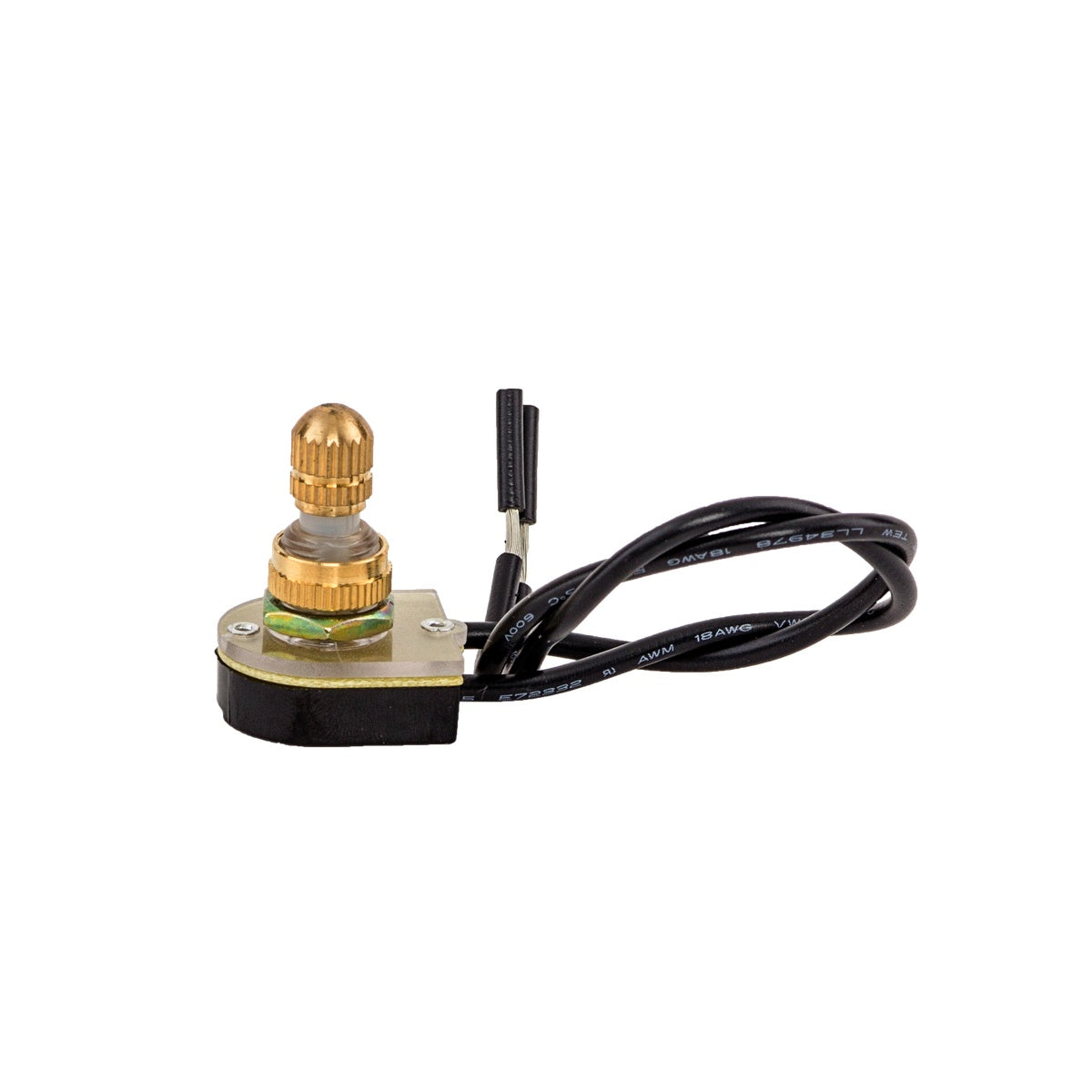

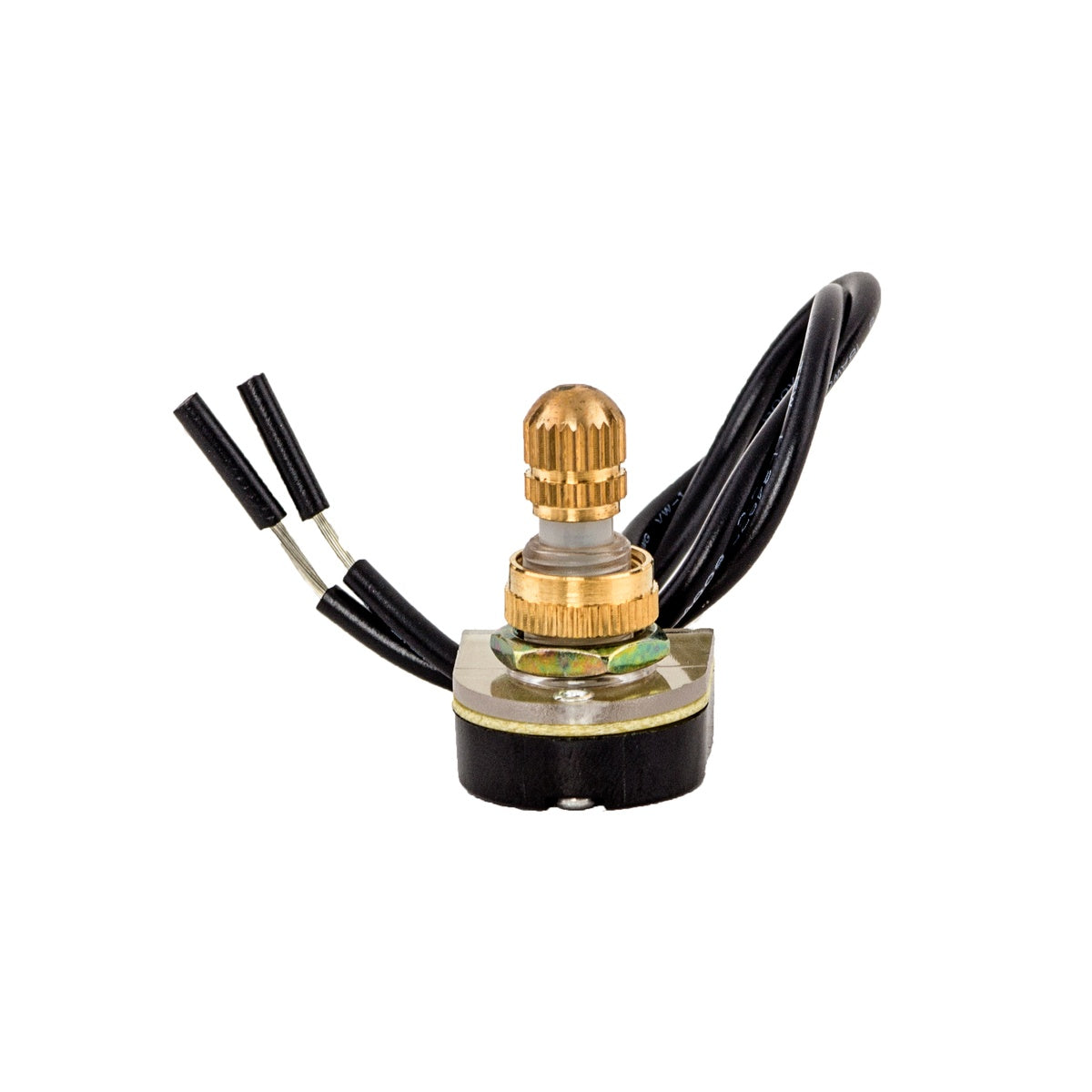

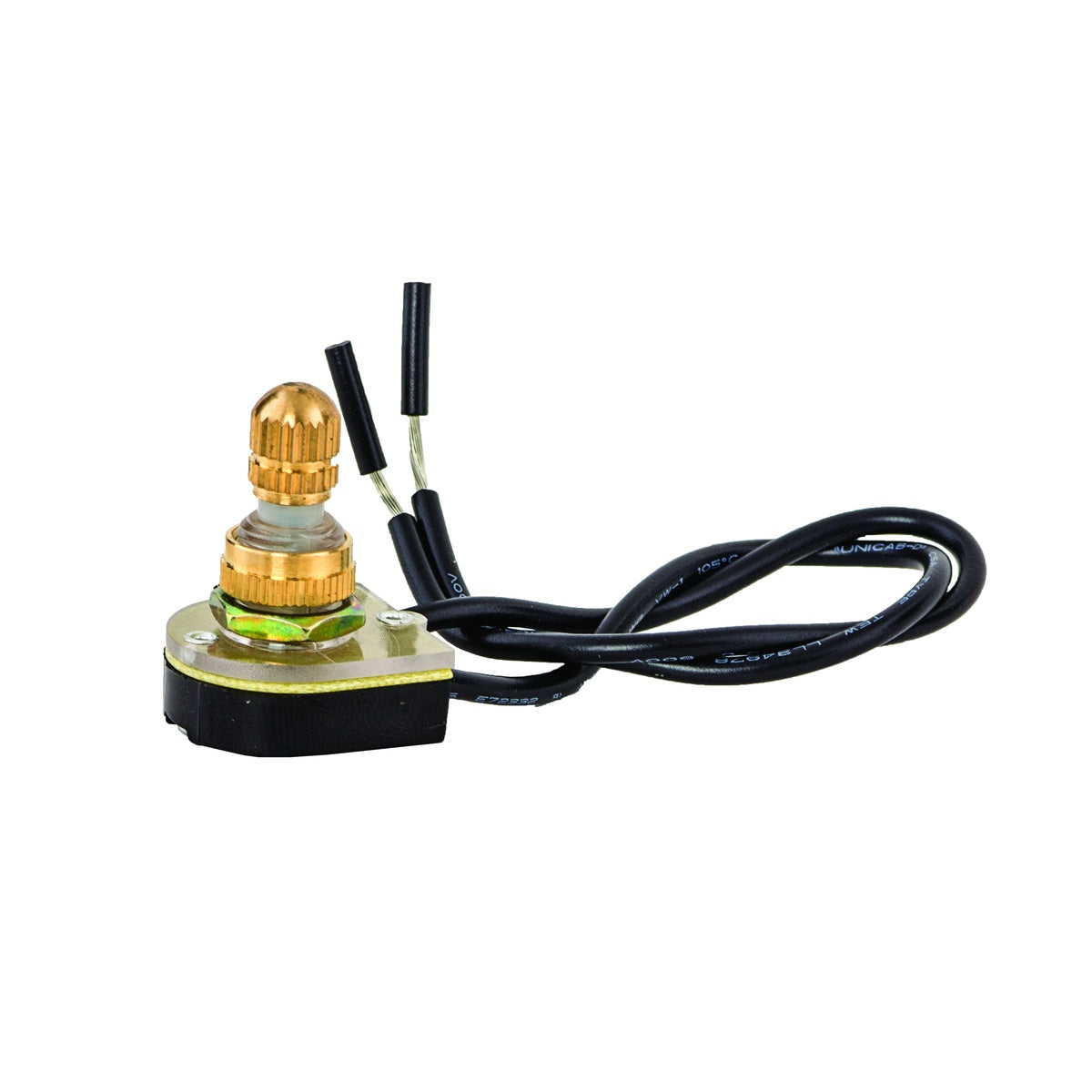

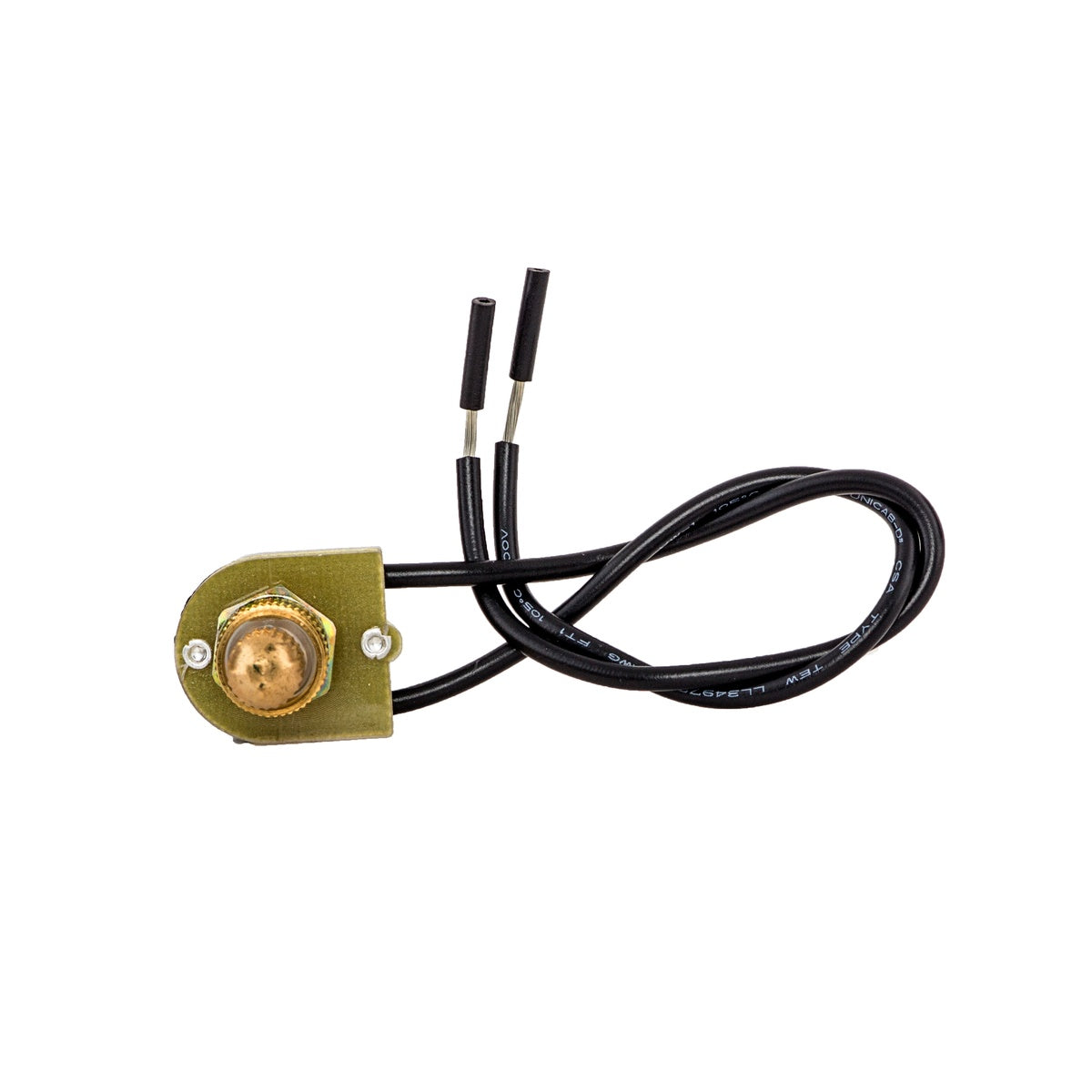

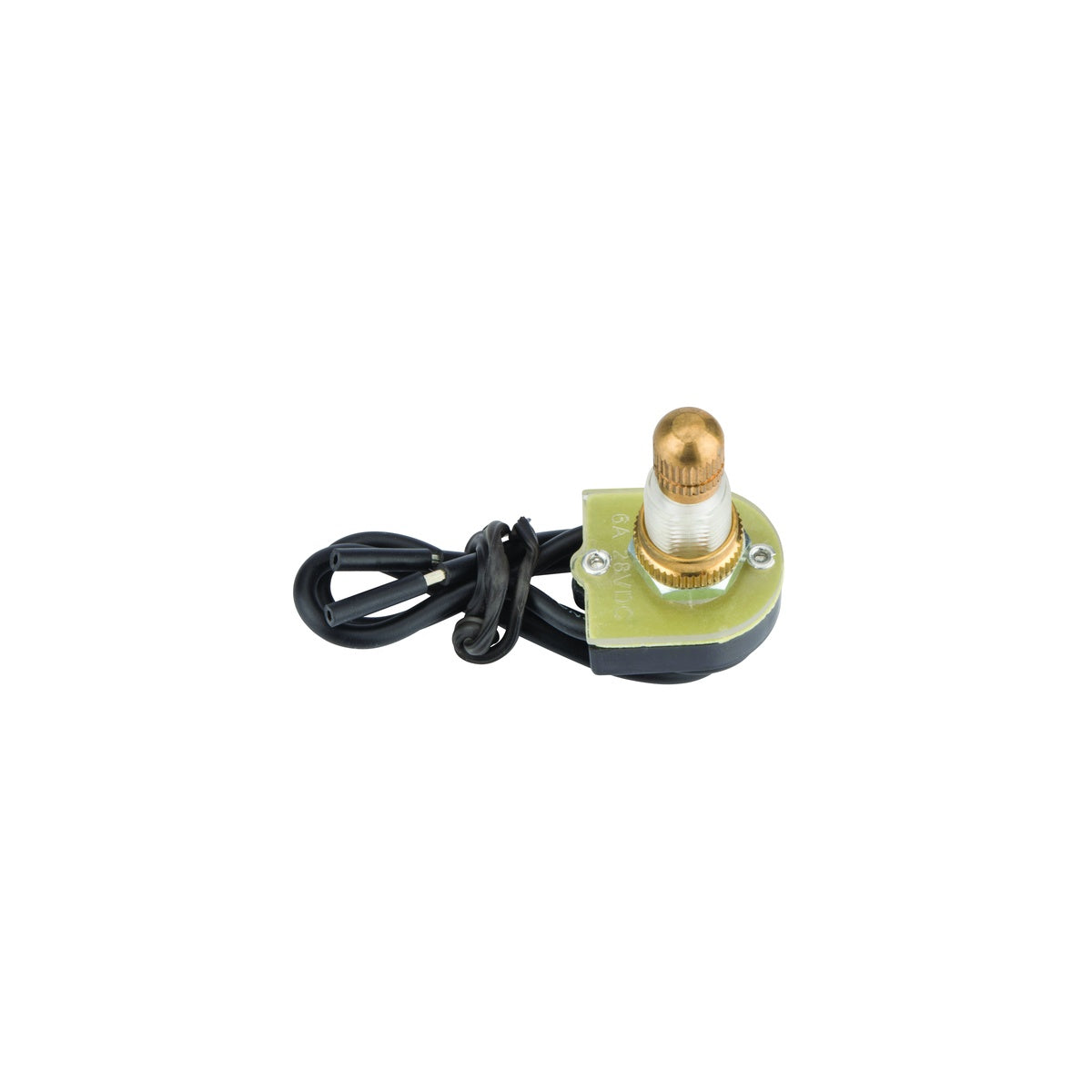

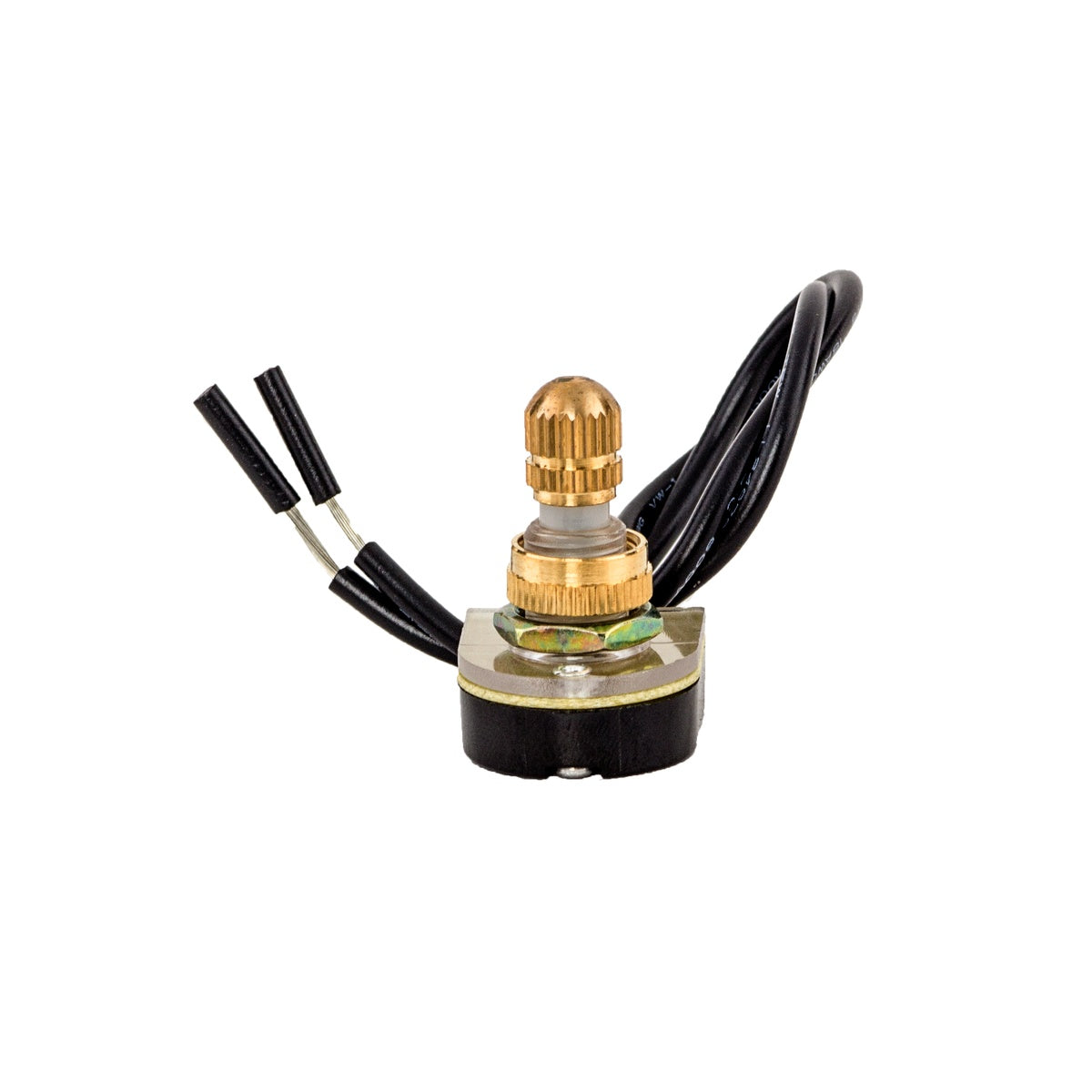

Rotary Canopy Maintained Switch – Rotary Canopy Switch

This Rotary Canopy Maintained switch is designed for motor-equipment control applications. It is suitable for use by electrical distributors and switchgear suppliers seeking reliable, compact control components. The switch provides an ON-OFF SPST contact configuration and is rated for 6 Amp at 125 VAC and 3 Amp at 250 VAC, making it appropriate for moderate electrical loads in lighting solutions and wire and cable control circuits.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 77340RW
• Contact Configuration: SPST
• Contact Rating: 6 Amp (125 VAC) - 3 Amp (250 VAC)
• Actuator: Rotary Canopy
• Mounting: Screw Mount
• Number of Poles: 1
• Dimensions (W x H x L): 0.844 in x 0.844 in x 1 in
• Product Weight: 0.0380 lb
• Country of Origin: Taiwan
• Application: Motor-Equipment Control

Features

• Maintained rotary canopy actuator for secure ON/OFF control
• Non-lighted design suitable for straightforward switching functions
• Wire leads for easy electrical connection
• Compact size supports installation in tight control panels

Downloads & Links

• Spec Sheet
