Rod Closing Support Grip SS, Single Eye, Single Weave, cable range .75 - 1.00
SKU: #127489
Part: #2203-015R
UPC: 785411814278
Rod Closing Support Grip SS, Single Eye, Single Weave, cable range .75 - 1.00
SKU: #127489
Part: #2203-015R
UPC: 785411814278
Description

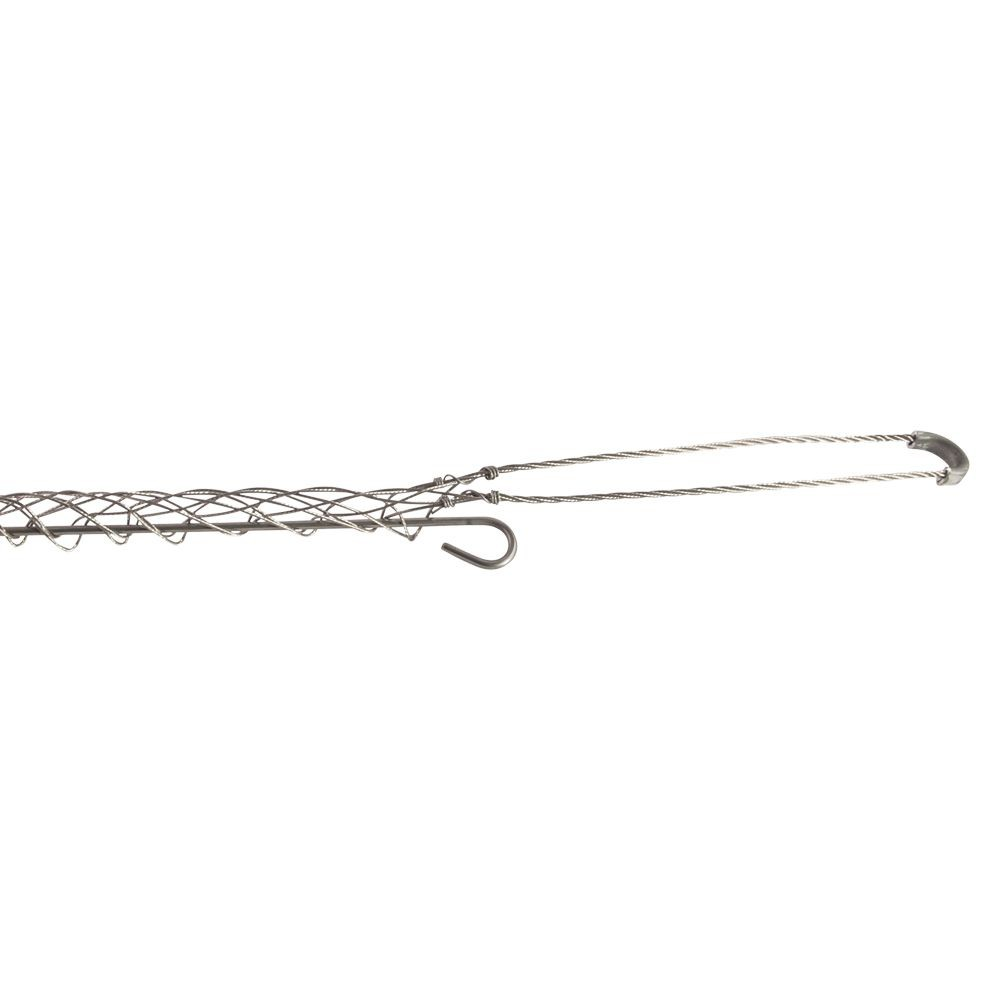

Rod Closing Support Grip SS, Single Eye, Single Weave - Wire Mesh Grip
This Rod Closing Support Grip is designed for use in electrical distribution and wire and cable applications, providing secure support and strain relief for cables within the range of 0.75 to 1.00 inches diameter. Manufactured from stainless steel, it offers durability and resistance to flexing and vibration, making it suitable for lighting solutions and switchgear supplier needs. The grip features a single eye and single weave design for fast and easy installation while preventing cable cuts by ensuring the rod does not touch the cable.
Specifications
- Manufacturer Part #: 2203-015R
- Material: Stainless Steel
- Cable Range: 0.750 - 0.990 inches
- Approximate Breaking Strength: 1020 lbs.
- Eye Length: 8 inches
- Mesh Length: 13 inches
- Dimensions (L x W x H): 21 in x 1.115 in x 1.115 in
- Product Weight: 1.0520 lbs
- UPC: 785411814278
- Country of Origin: United States
- Made in USA: Yes
Features
- Woven with non-magnetic, tinned bronze wire to absorb strain and flexing
- Resists cable pull-out, flexing, and vibration
- Rod provided with grip; does not contact cable to prevent cuts
- Fastest and easiest installation among split closure methods
- Reusable after rod straightening if bent from high loads
