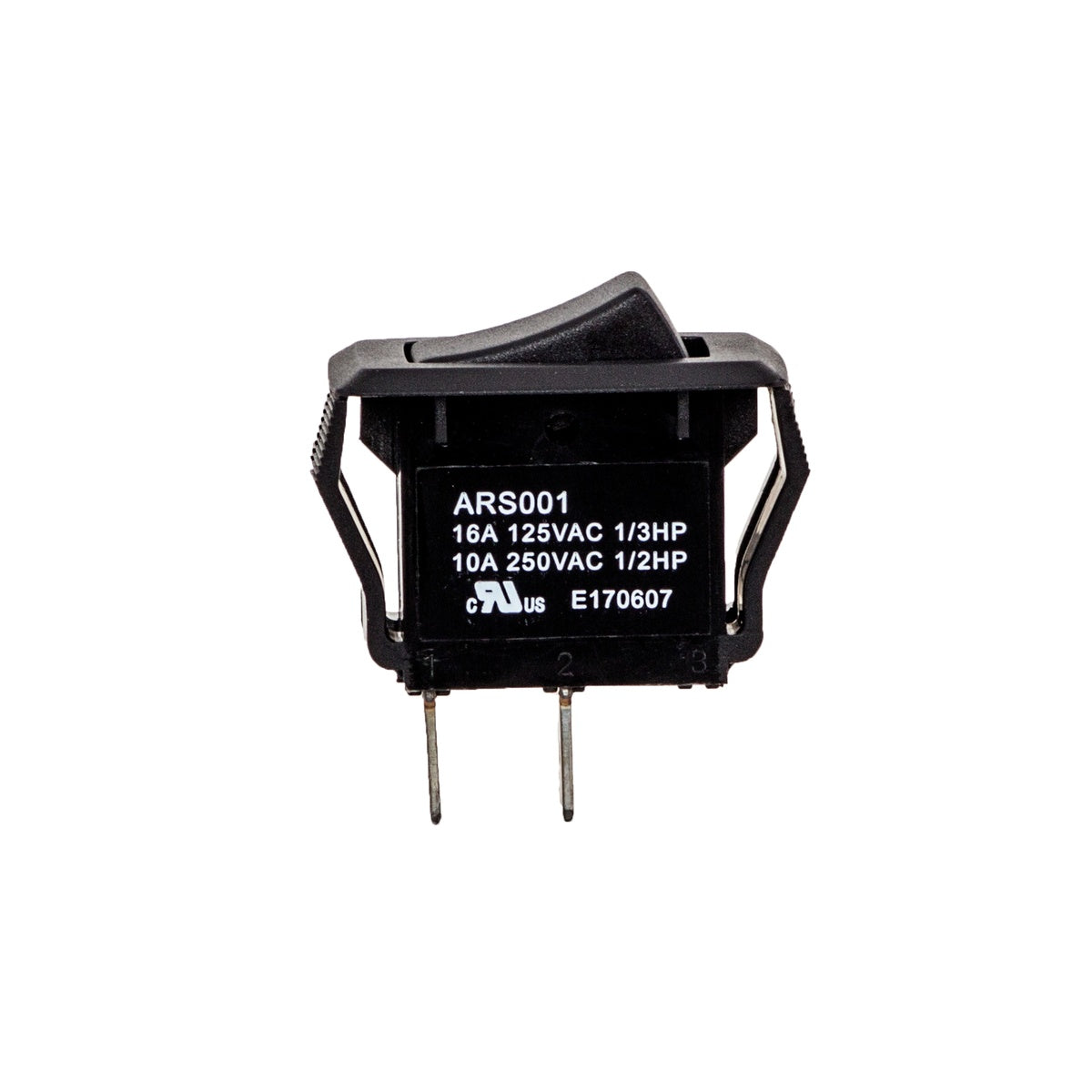

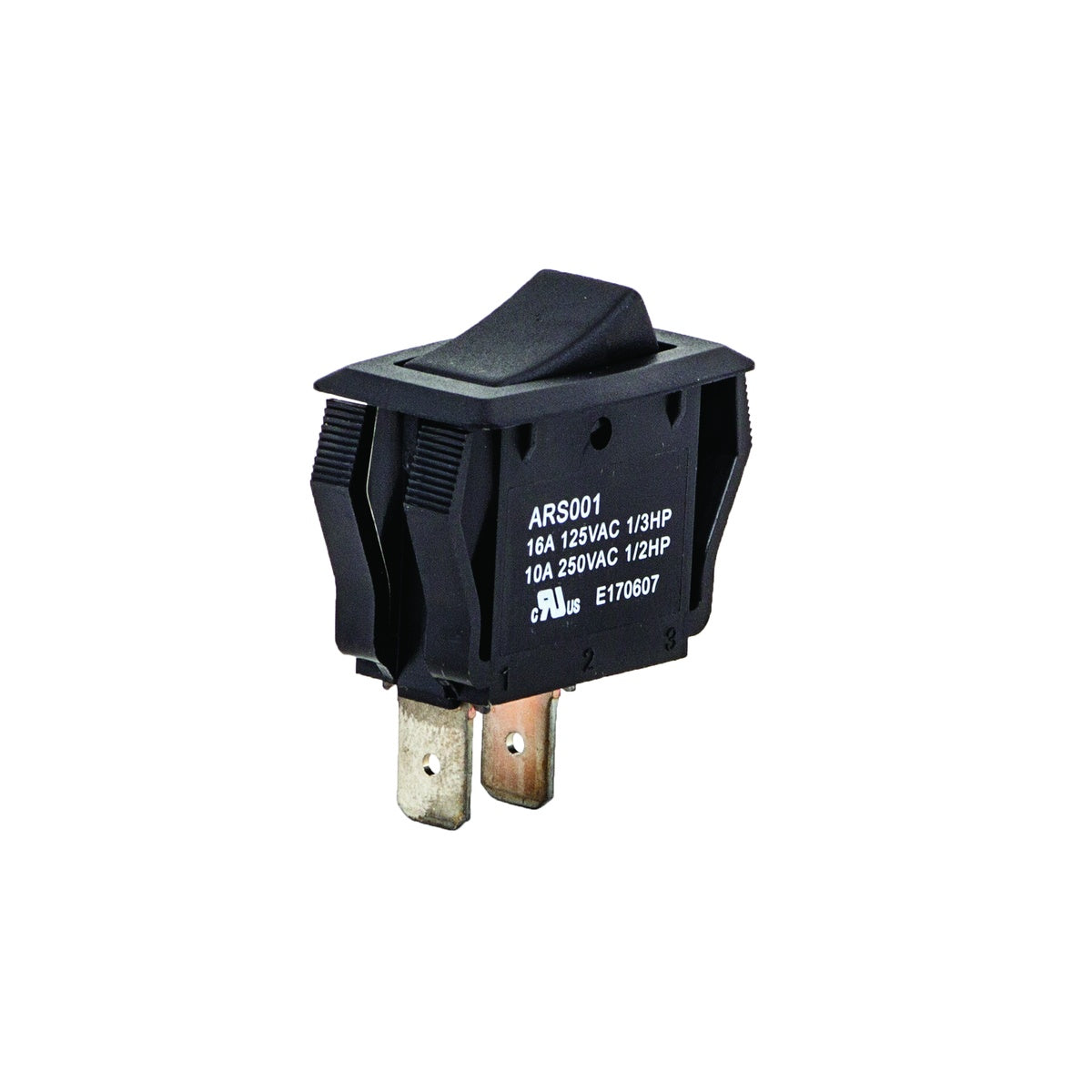

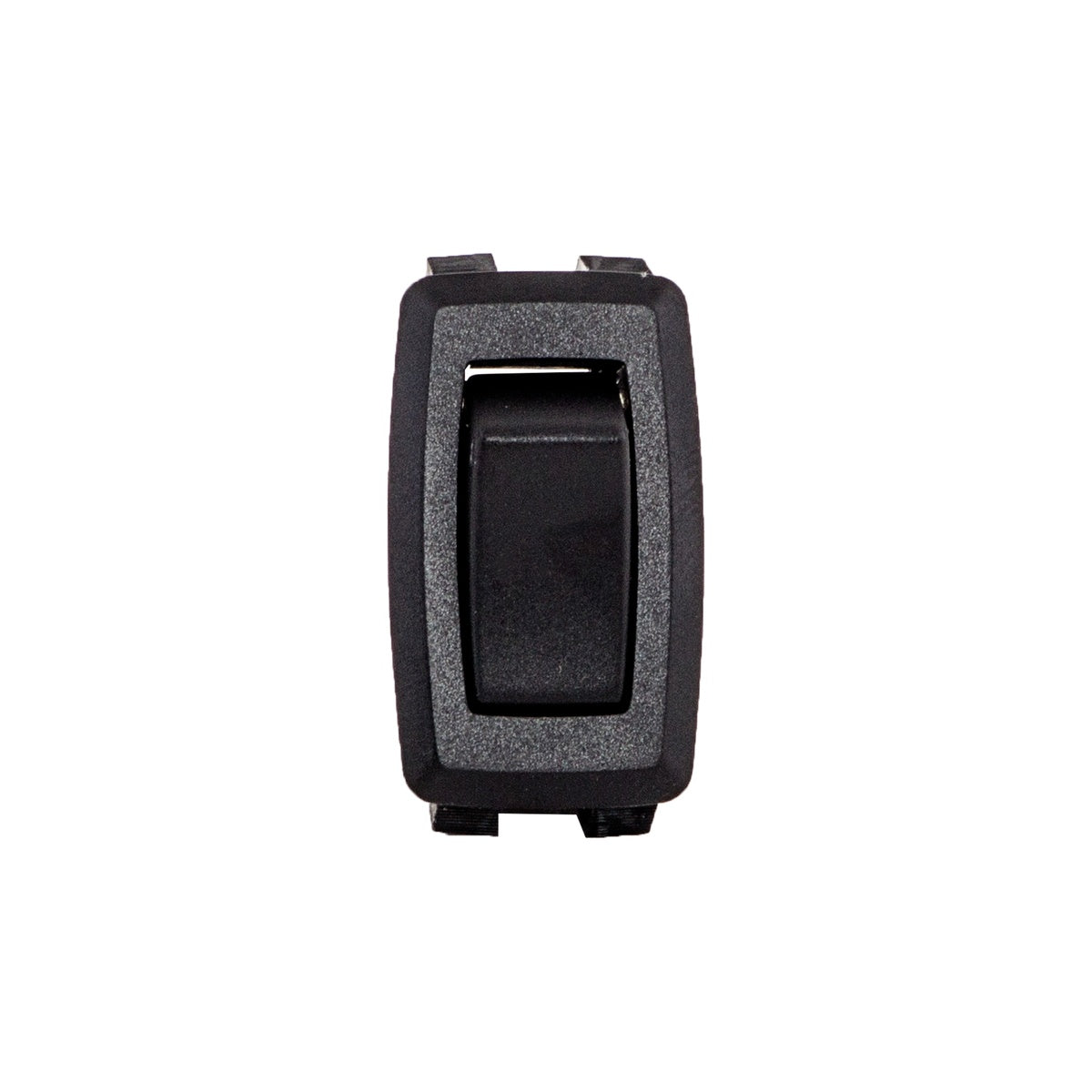

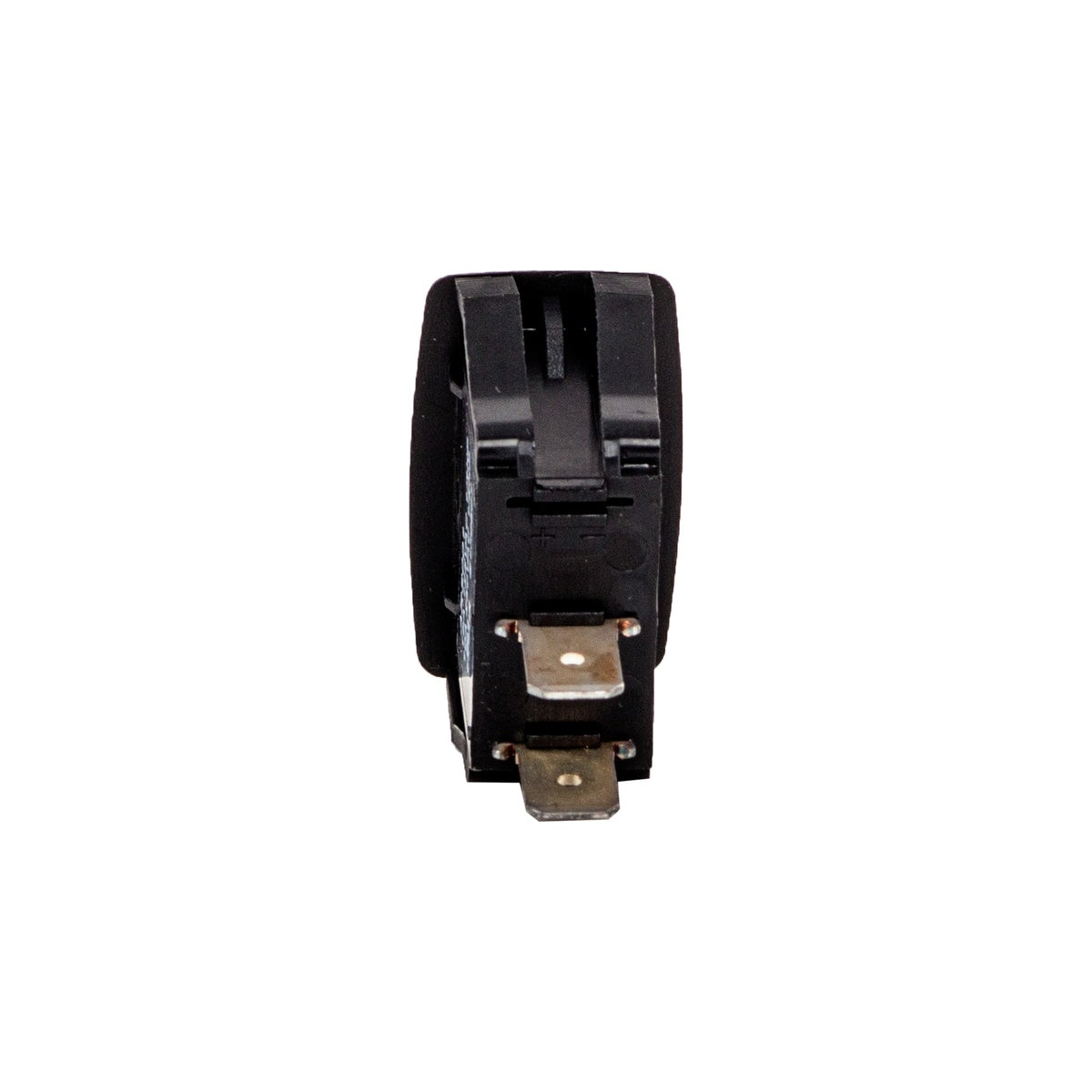

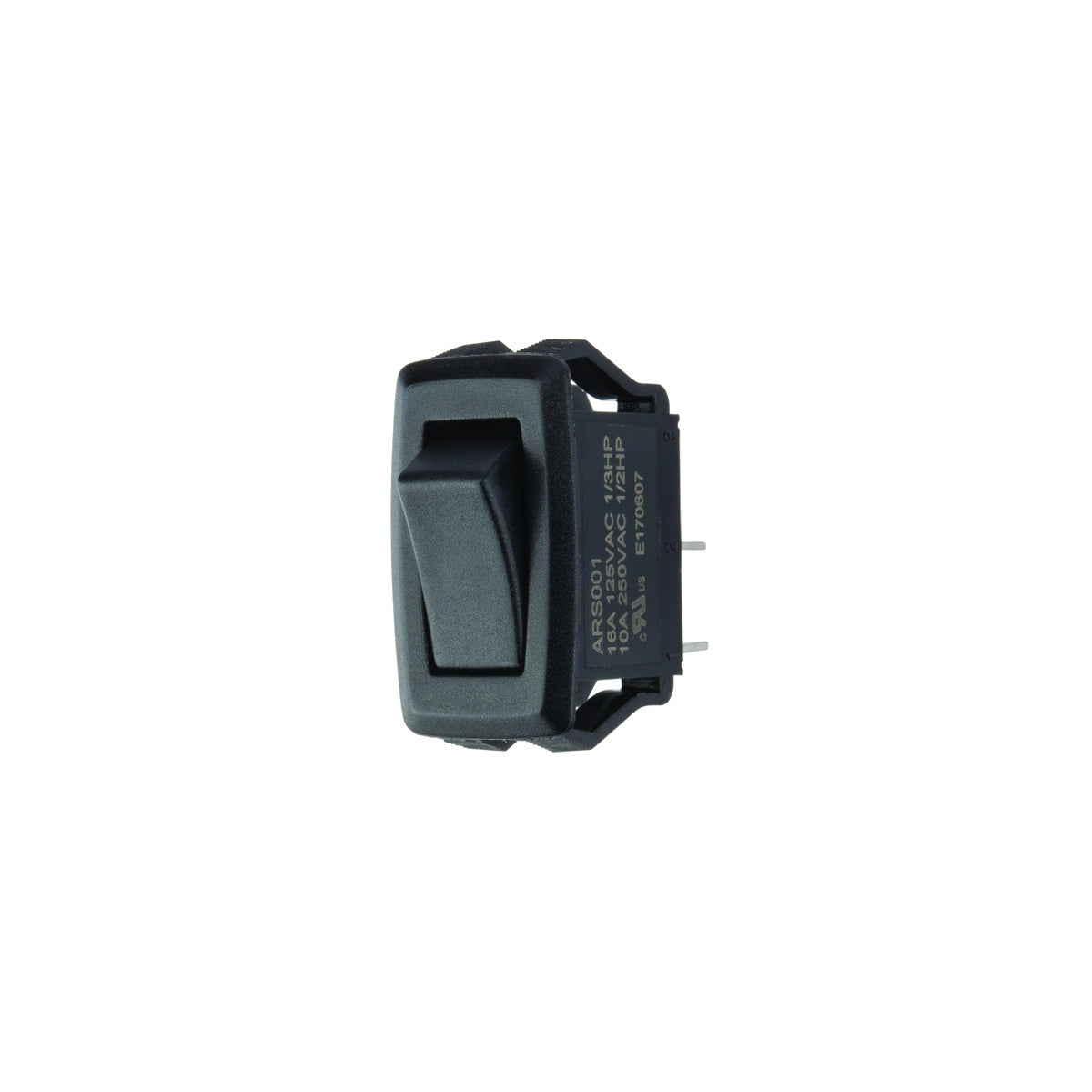

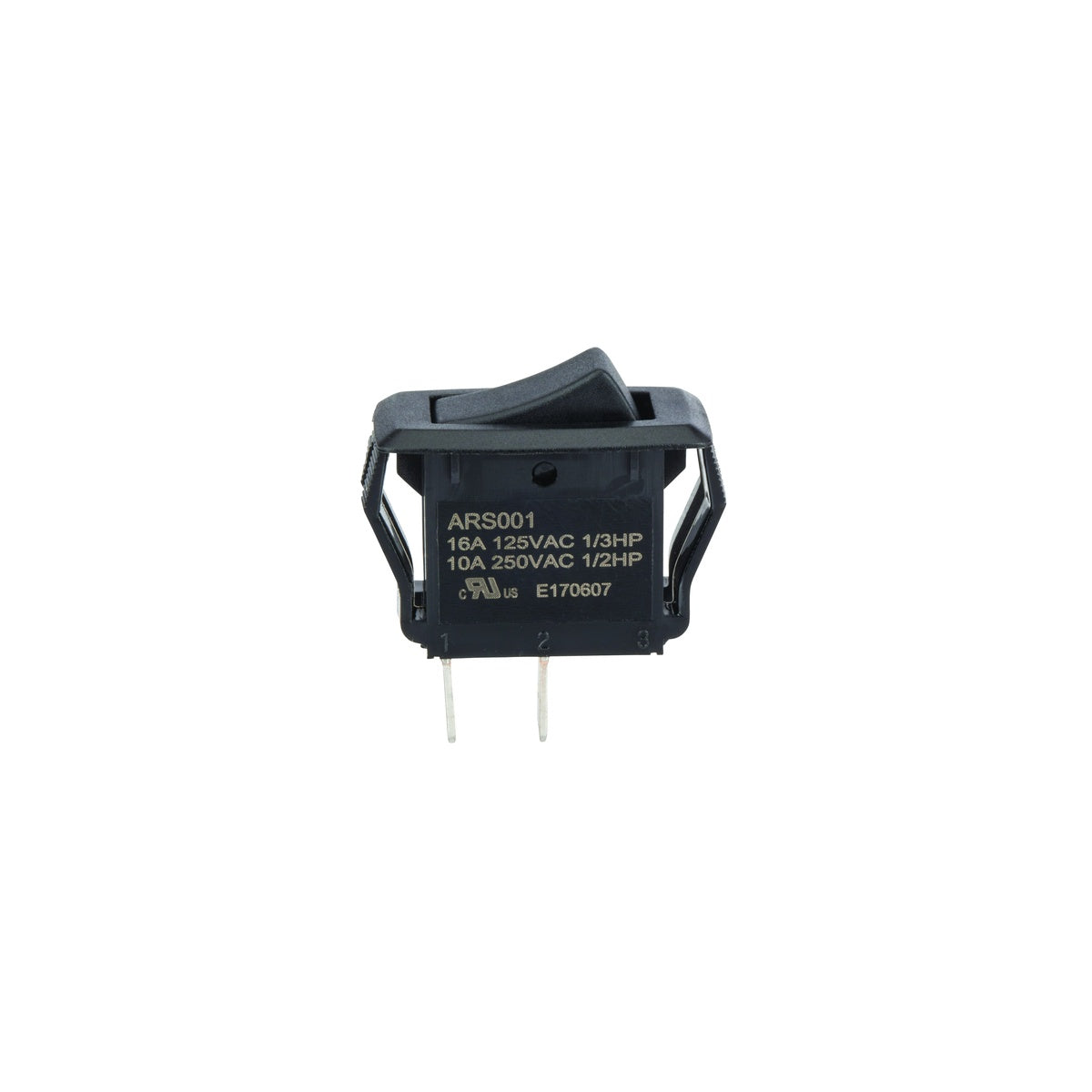

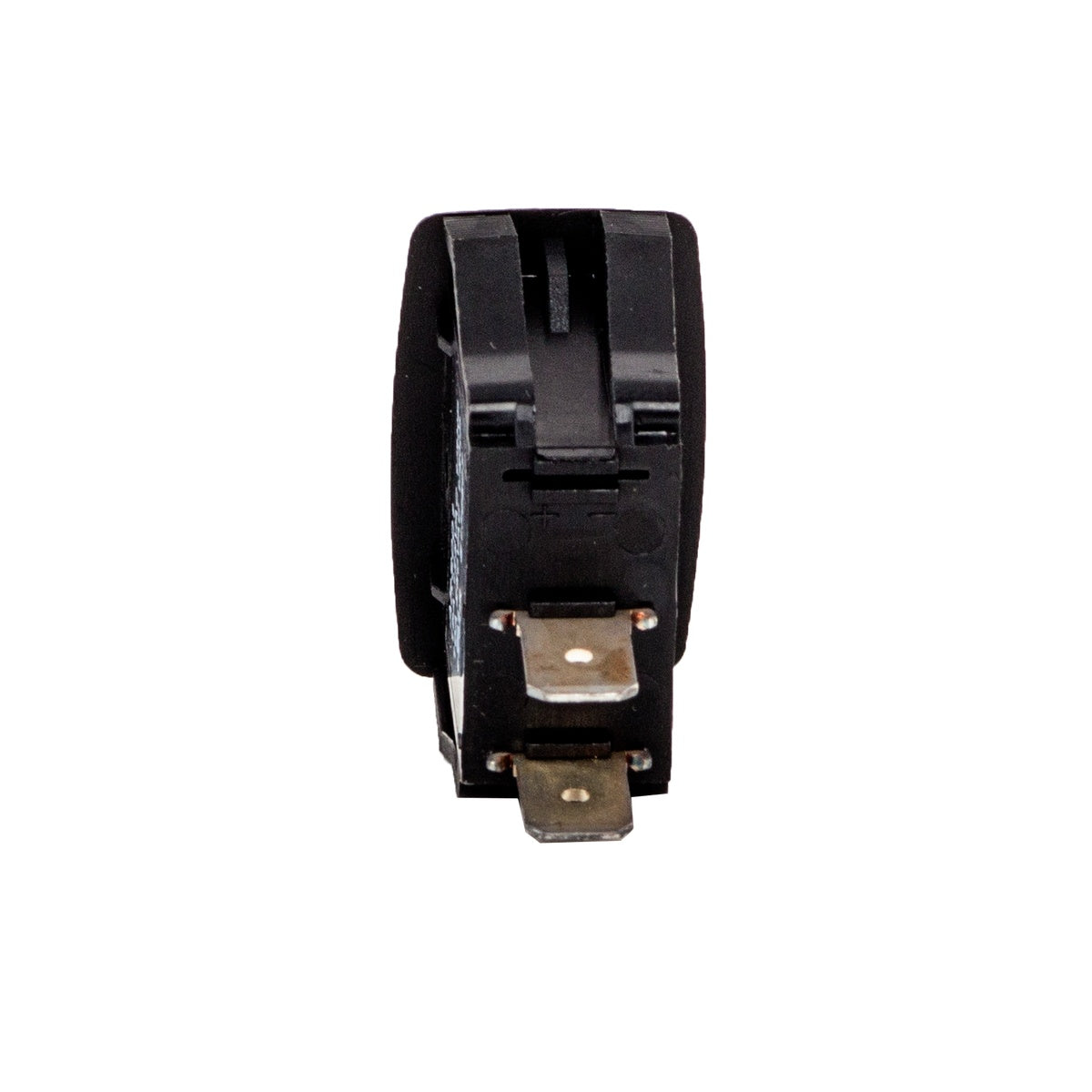

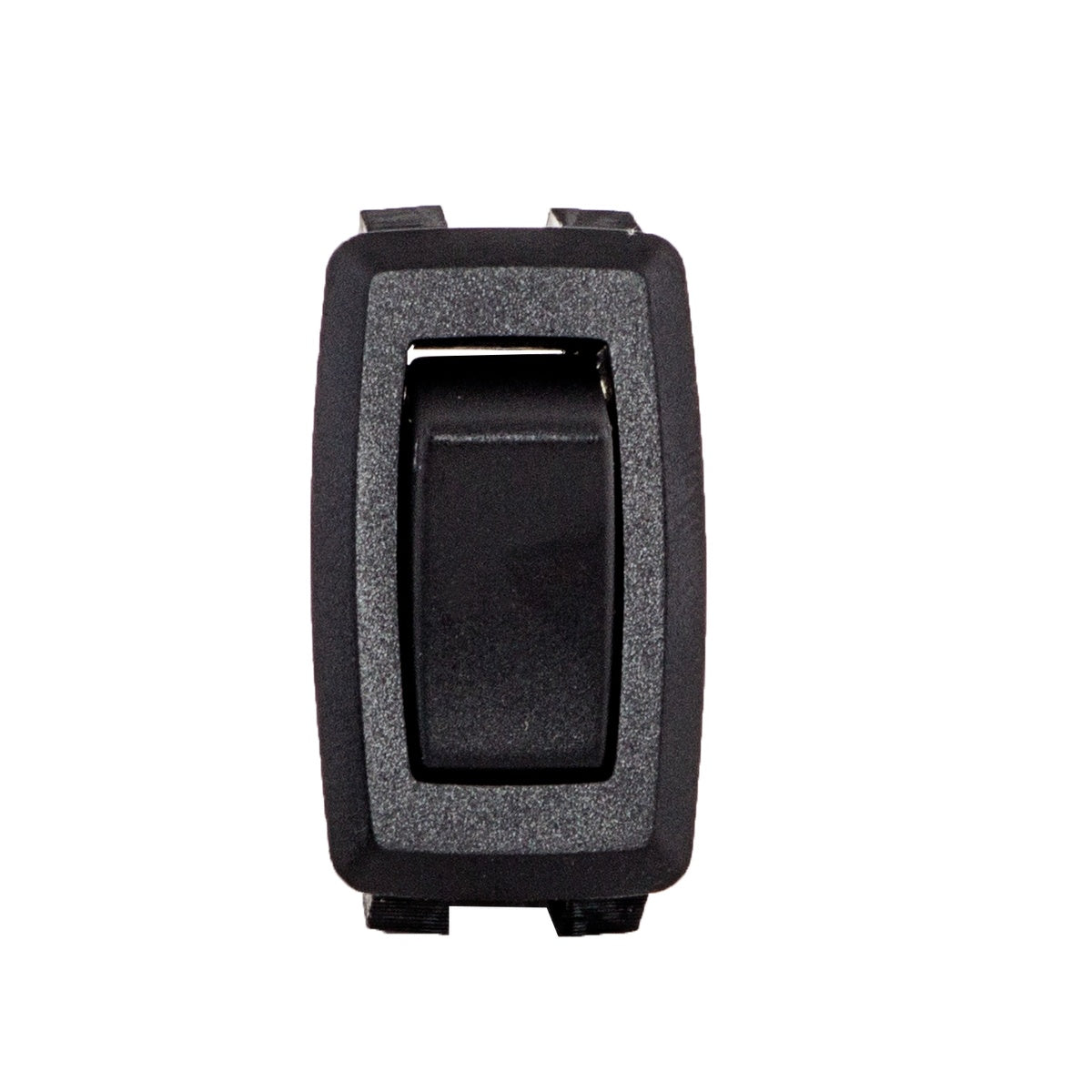

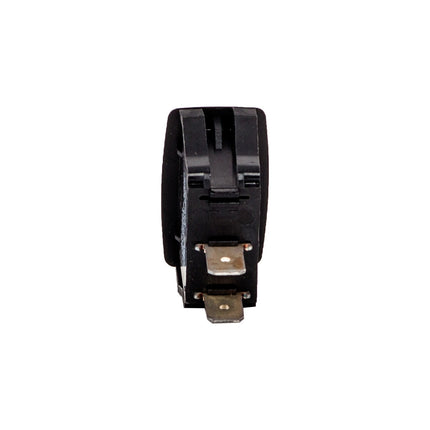

Rocker Switch Maintained SPST On-Off – Electrical Rocker Switch

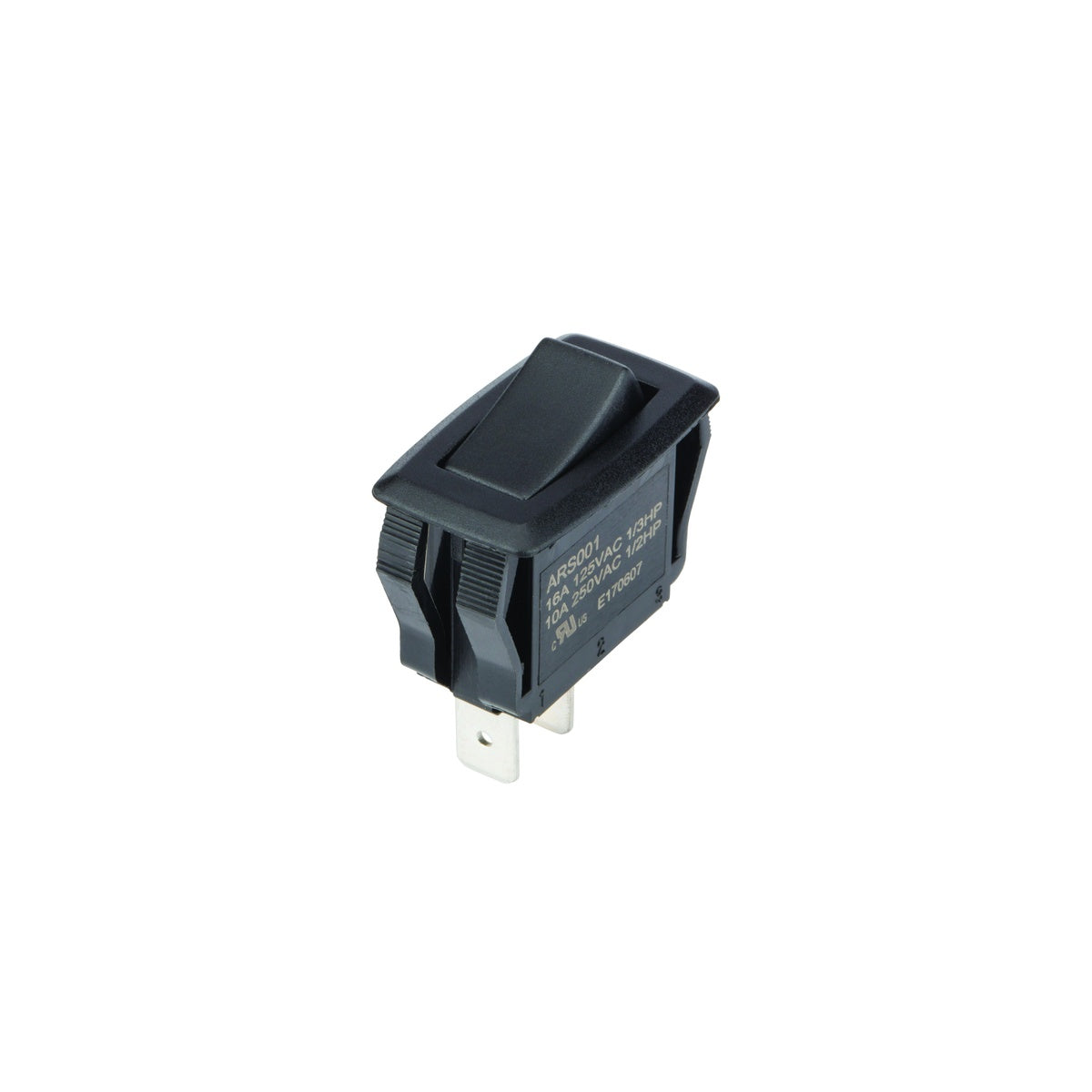

This black maintained rocker switch is designed for motor-equipment control applications. It features a single-pole, single-throw (SPST) contact configuration with an ON-OFF switching function. The switch is suitable for use in electrical distribution and lighting solutions where reliable on/off control is required. It is constructed with a thermoplastic actuator and a phenolic base, providing durability and consistent performance. The snap mount design allows easy installation, and the switch uses QuikConnect terminals for efficient wiring.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 77140RQ
• Contact Configuration: SPST
• Contact Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
• Number of Poles: 1
• Actuator Type: Rocker
• Mounting: Snap Mount
• Material: Thermoplastic
• Color: Black
• Dimensions (inches): Length 1.25, Width 0.625, Height 1.234
• Weight: 0.0220 lbs
• Country of Origin: Taiwan
• Order Minimum: 1 unit

Features

• Maintained ON-OFF switching function
• Non-lighted black rocker actuator with phenolic base
• QuikConnect terminals for fast and reliable connections
• Compact size suitable for panel mounting

Downloads & Links

• Spec Sheet
