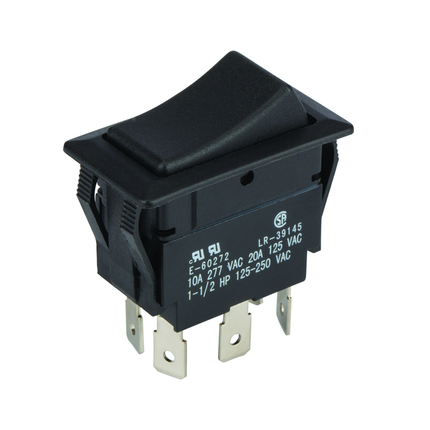

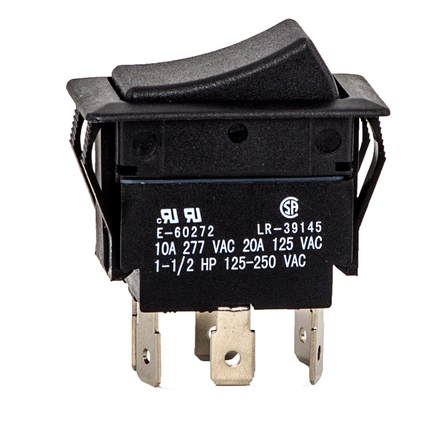

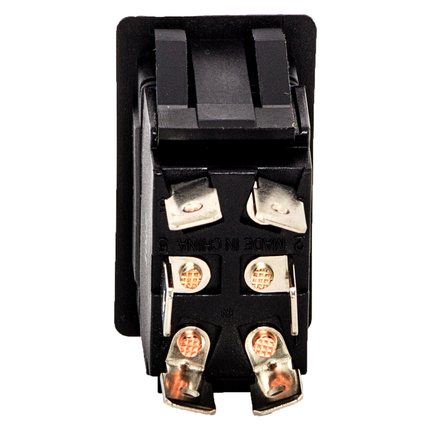

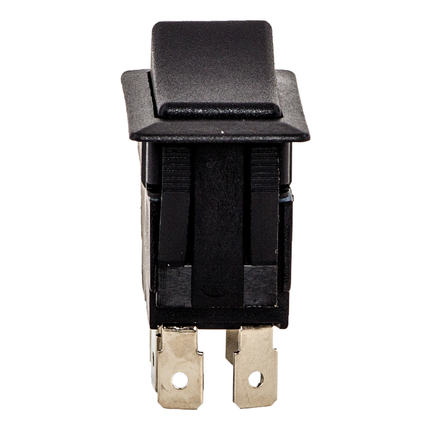

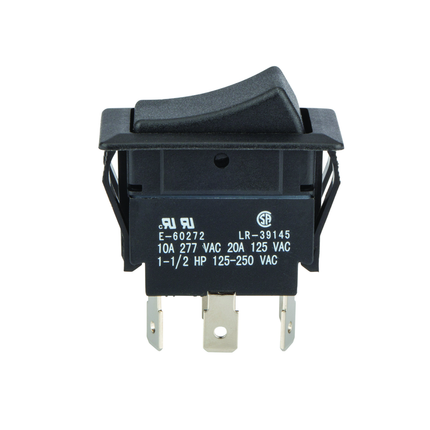

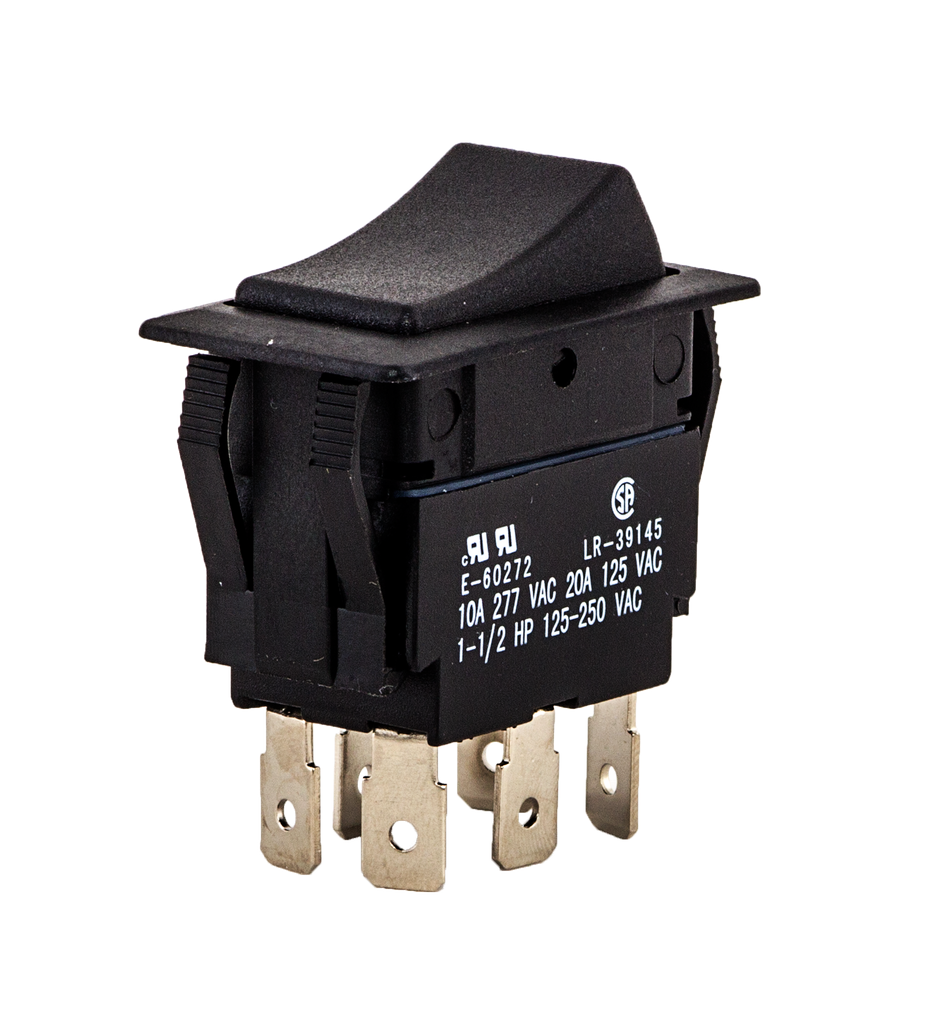

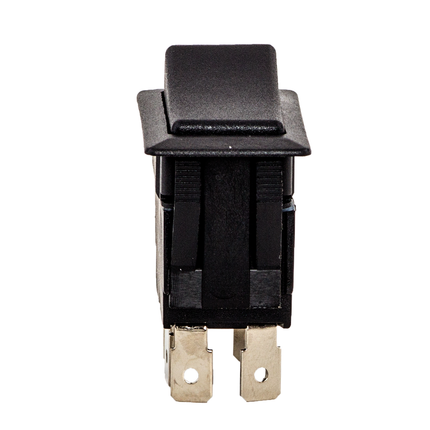

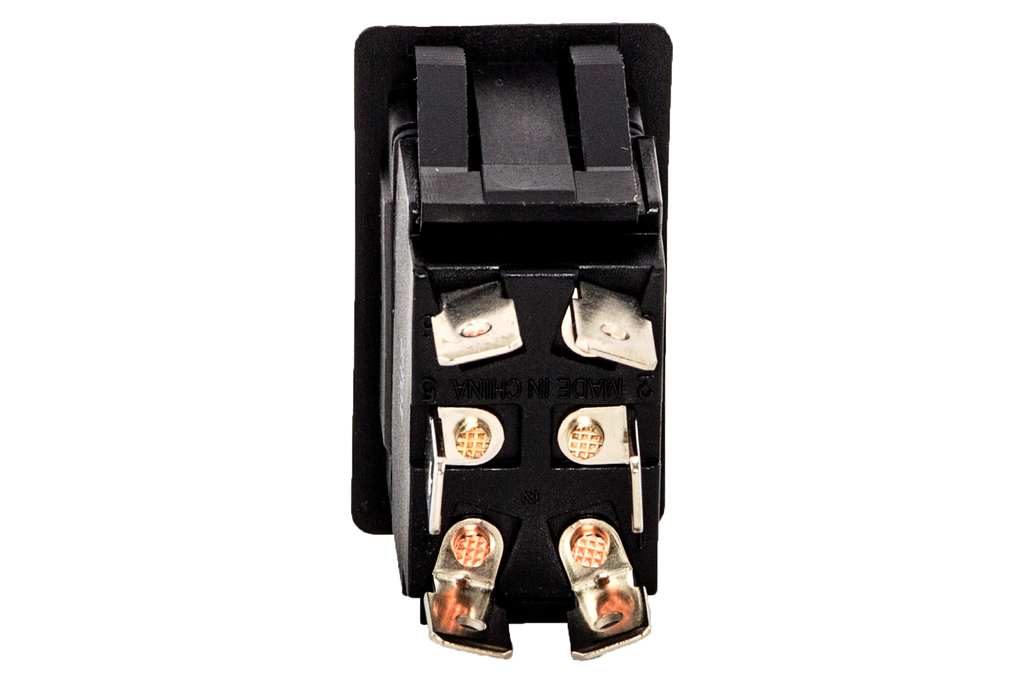

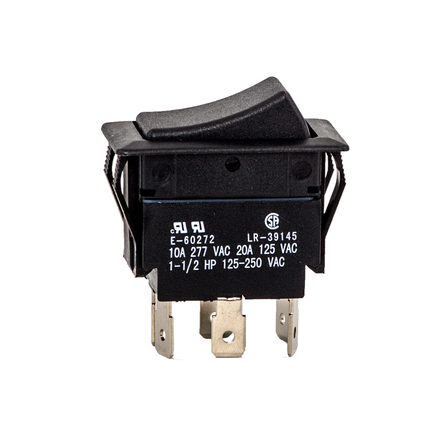

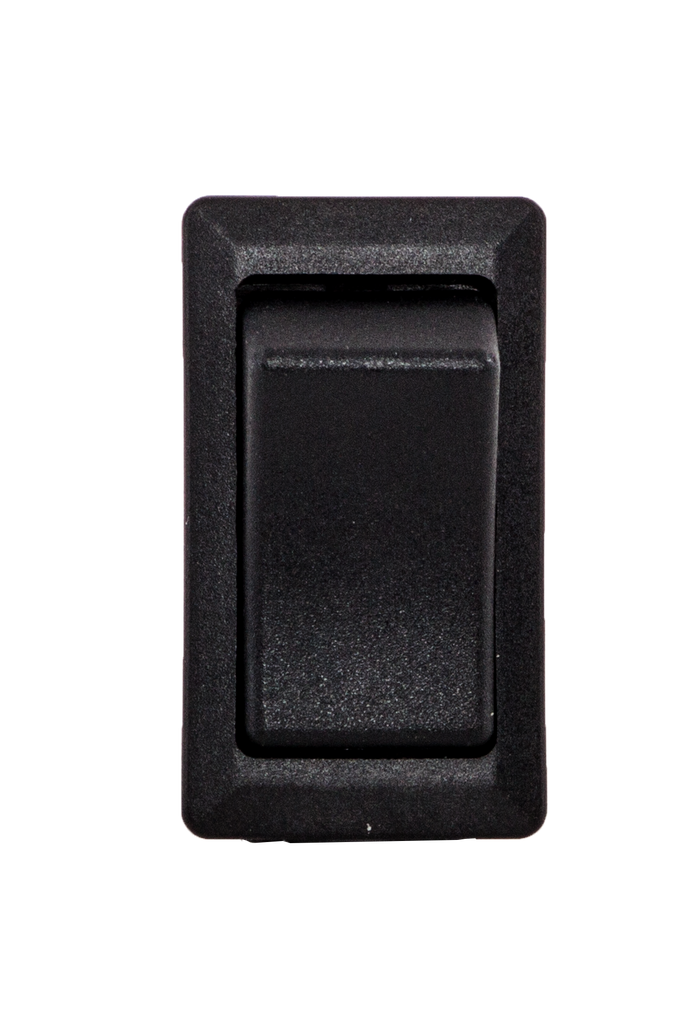

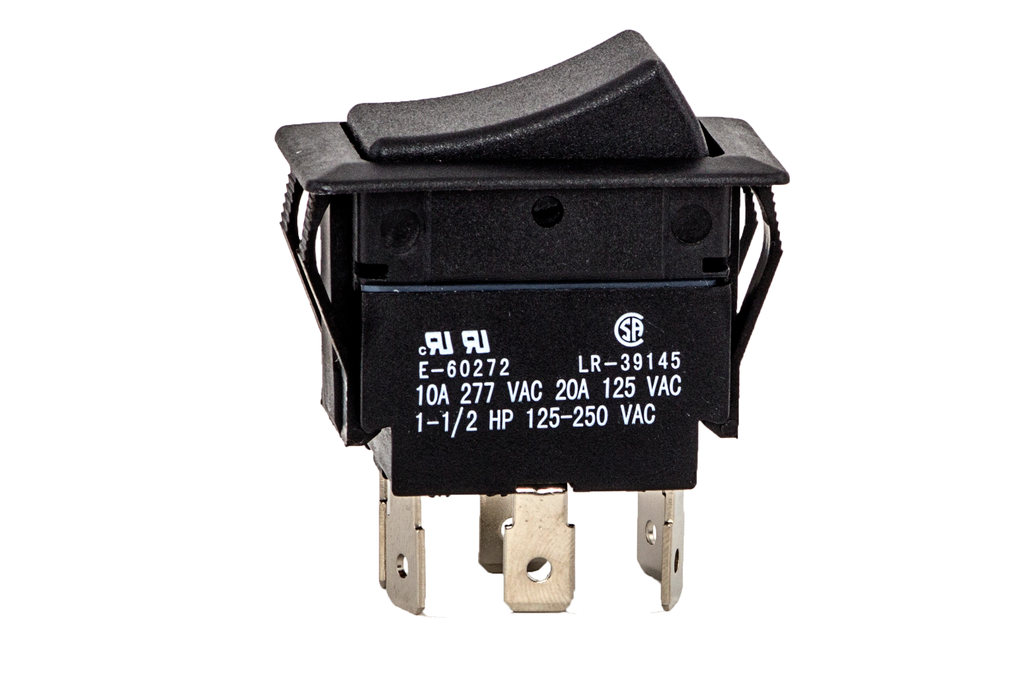

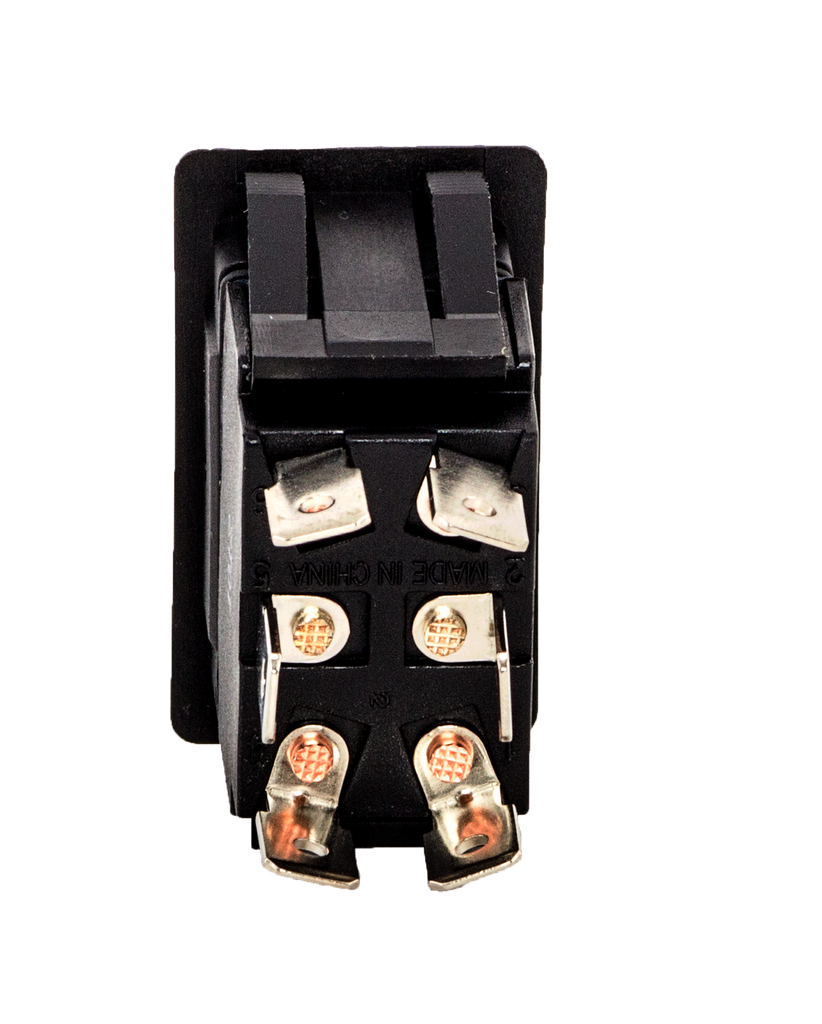

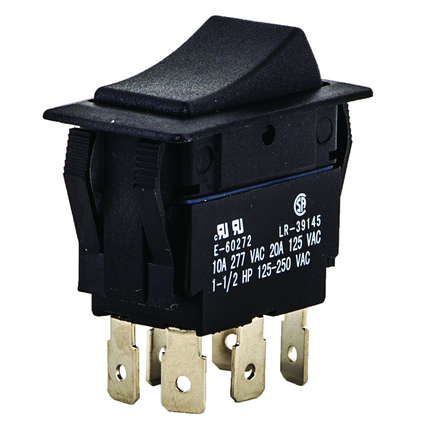

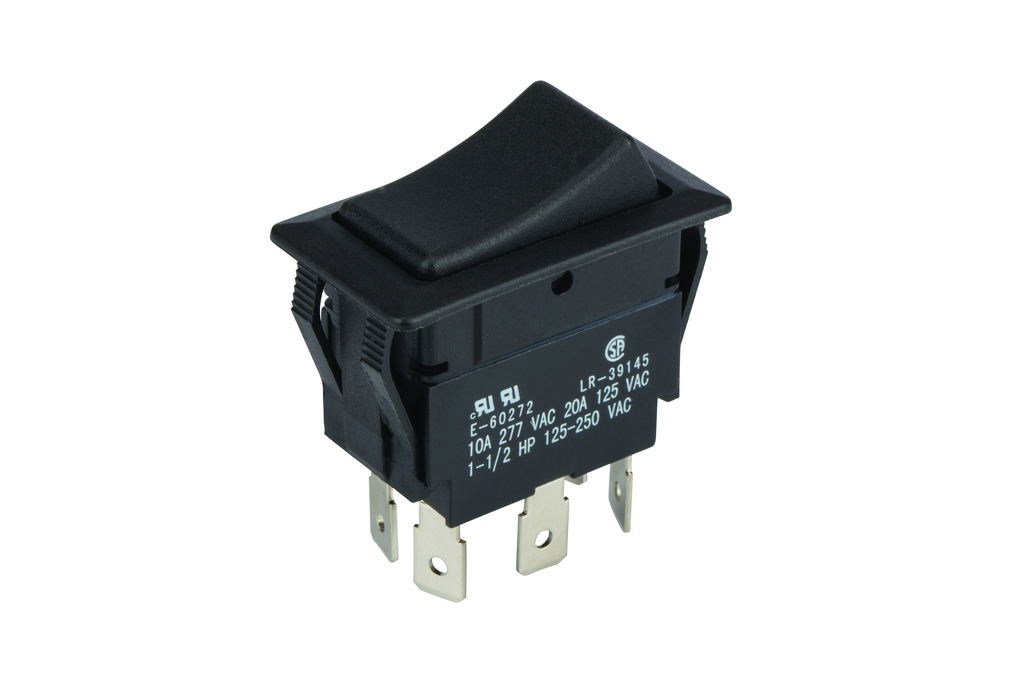

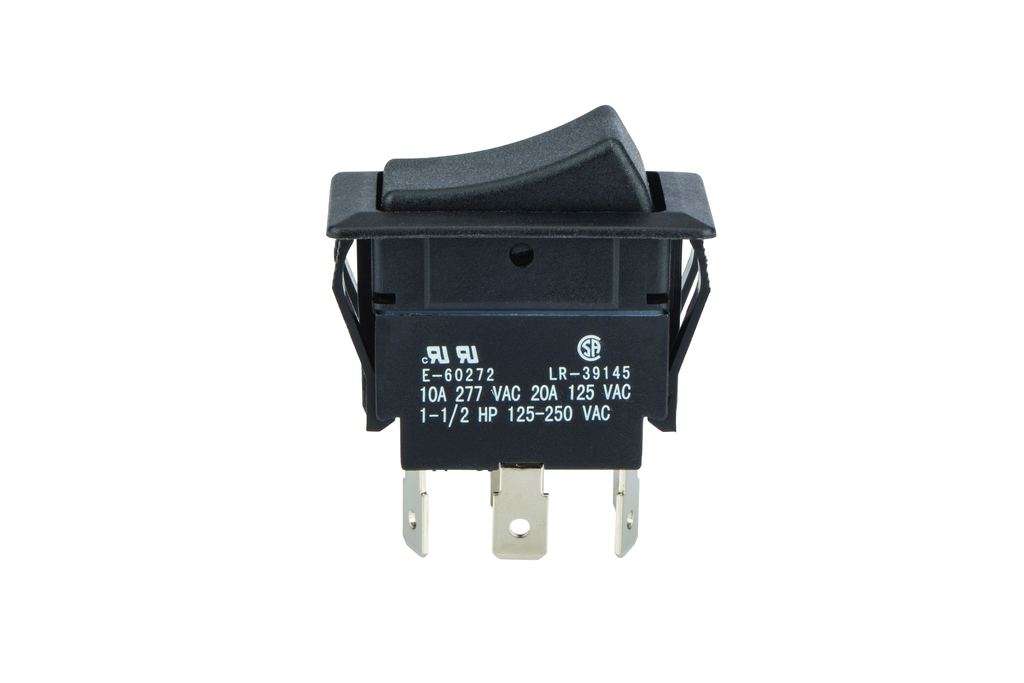

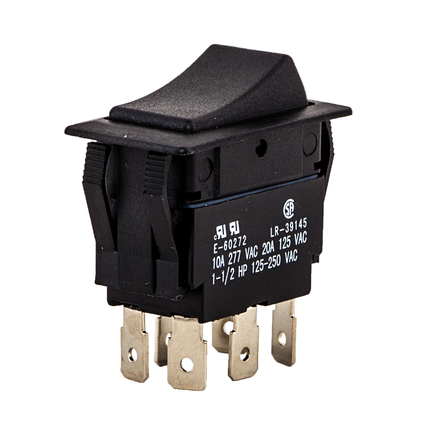

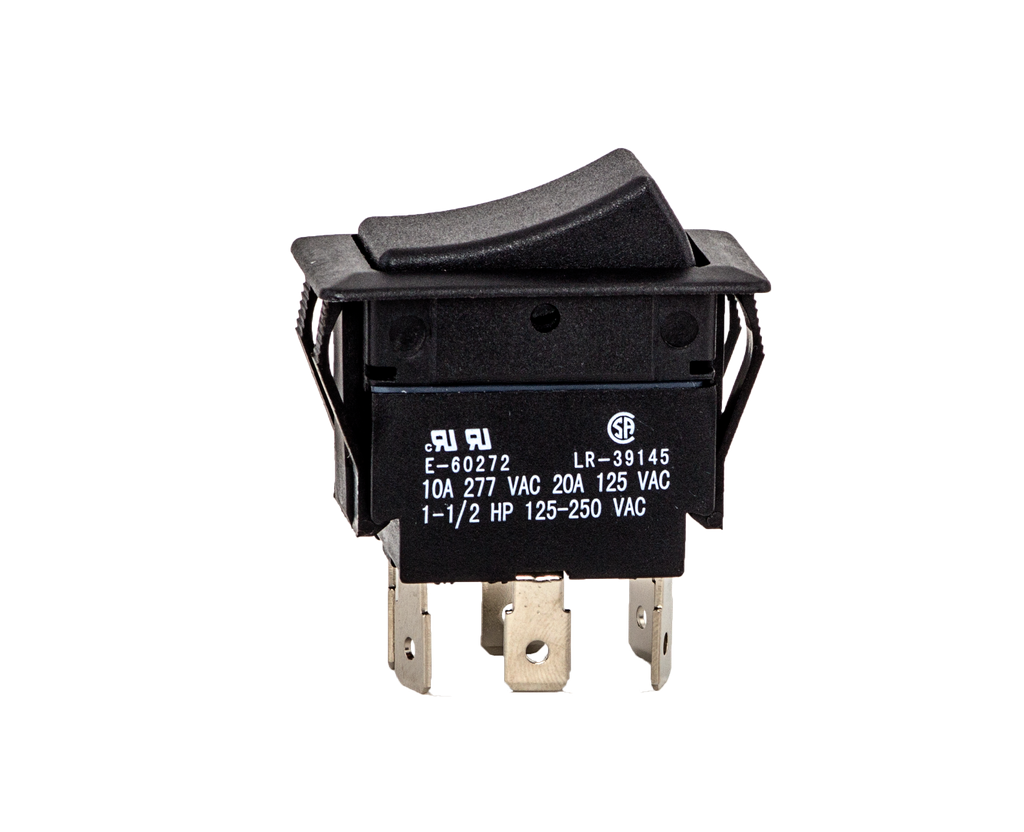

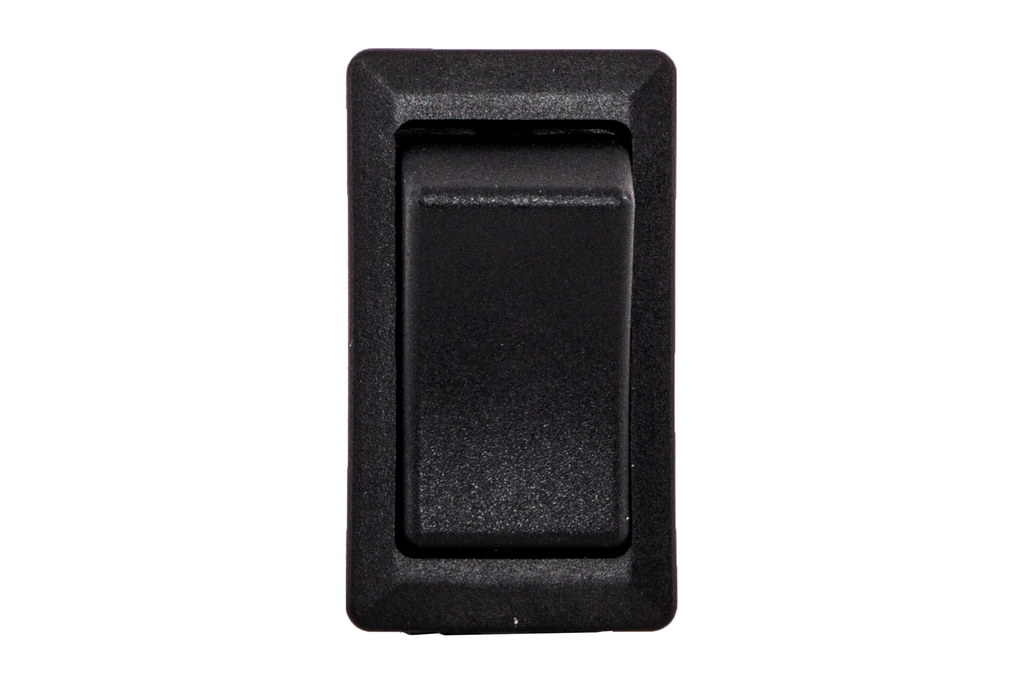

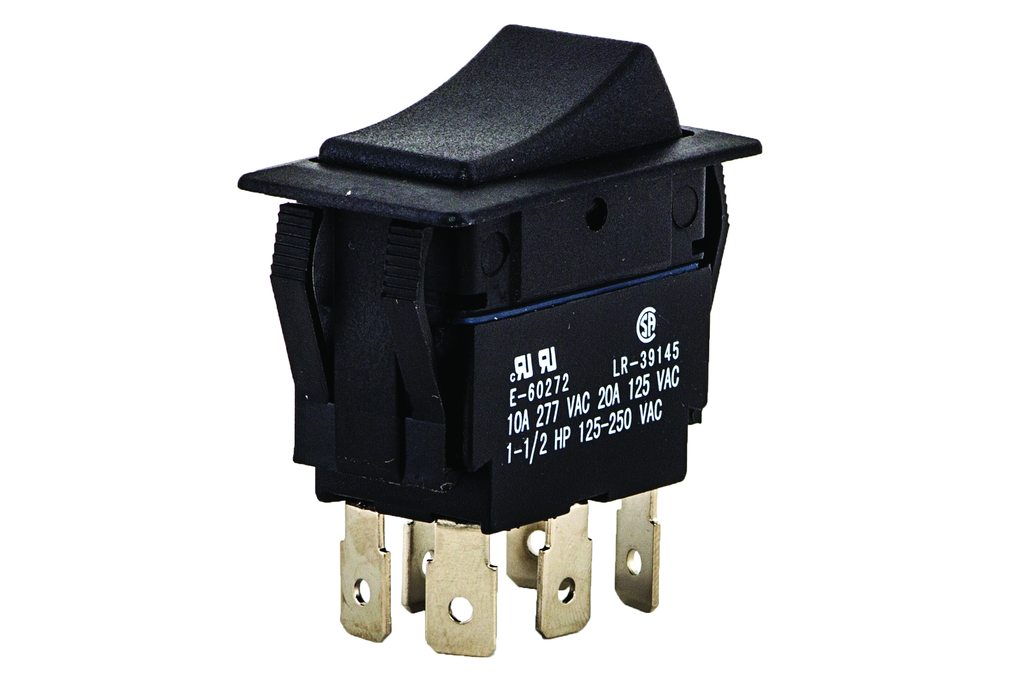

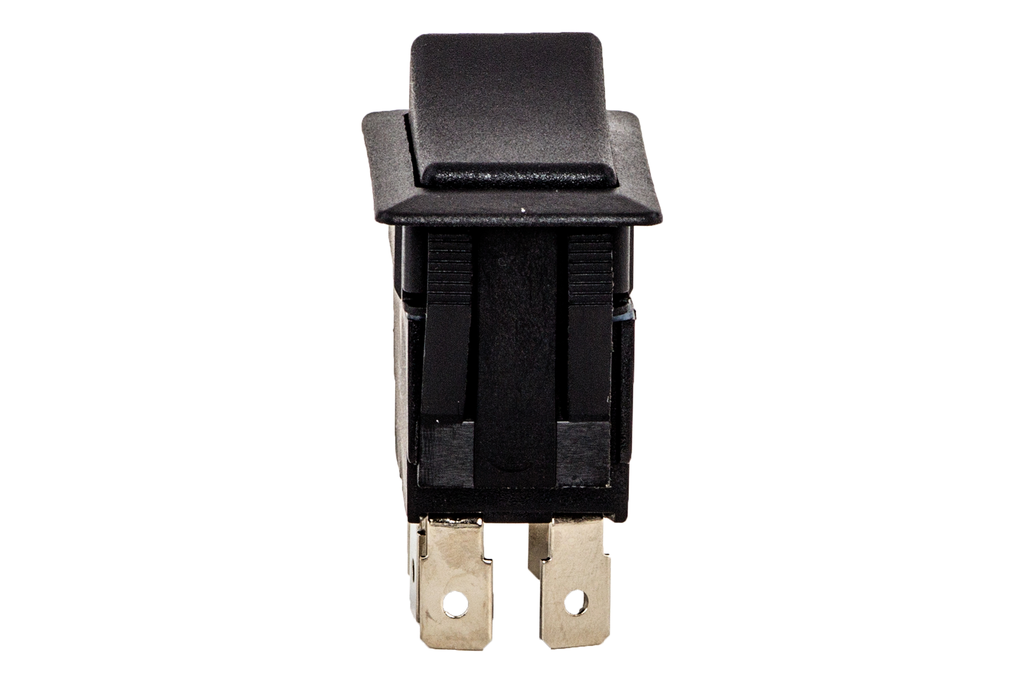

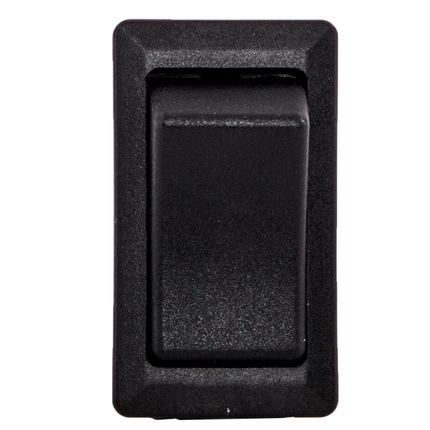

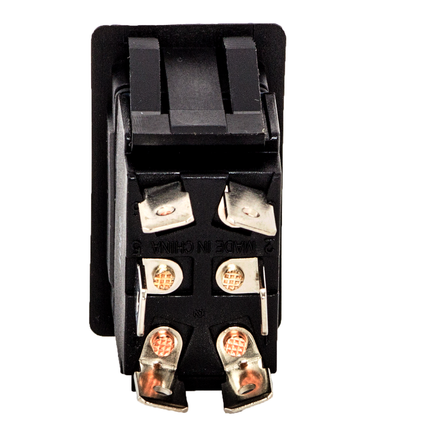

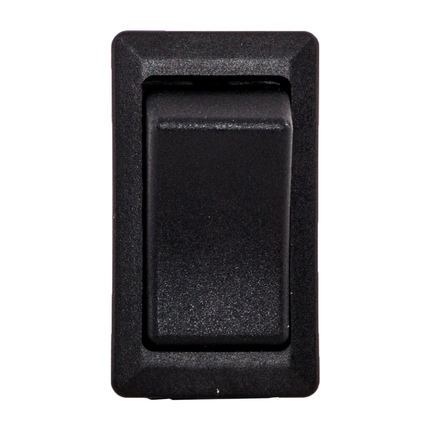

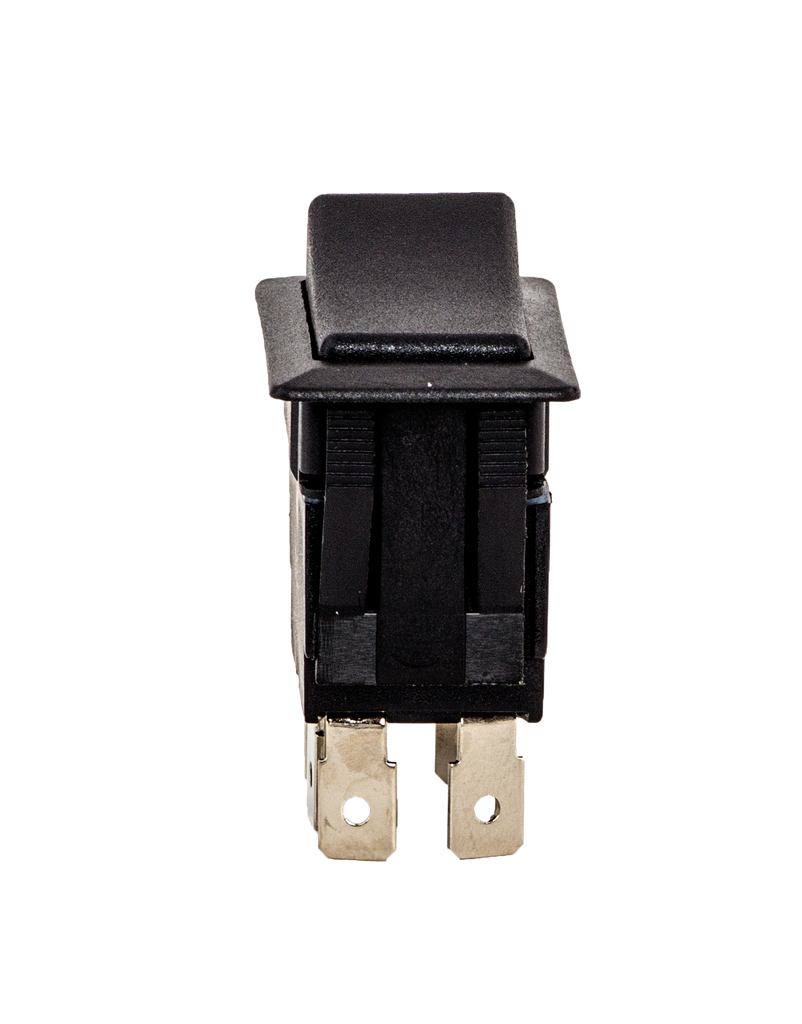

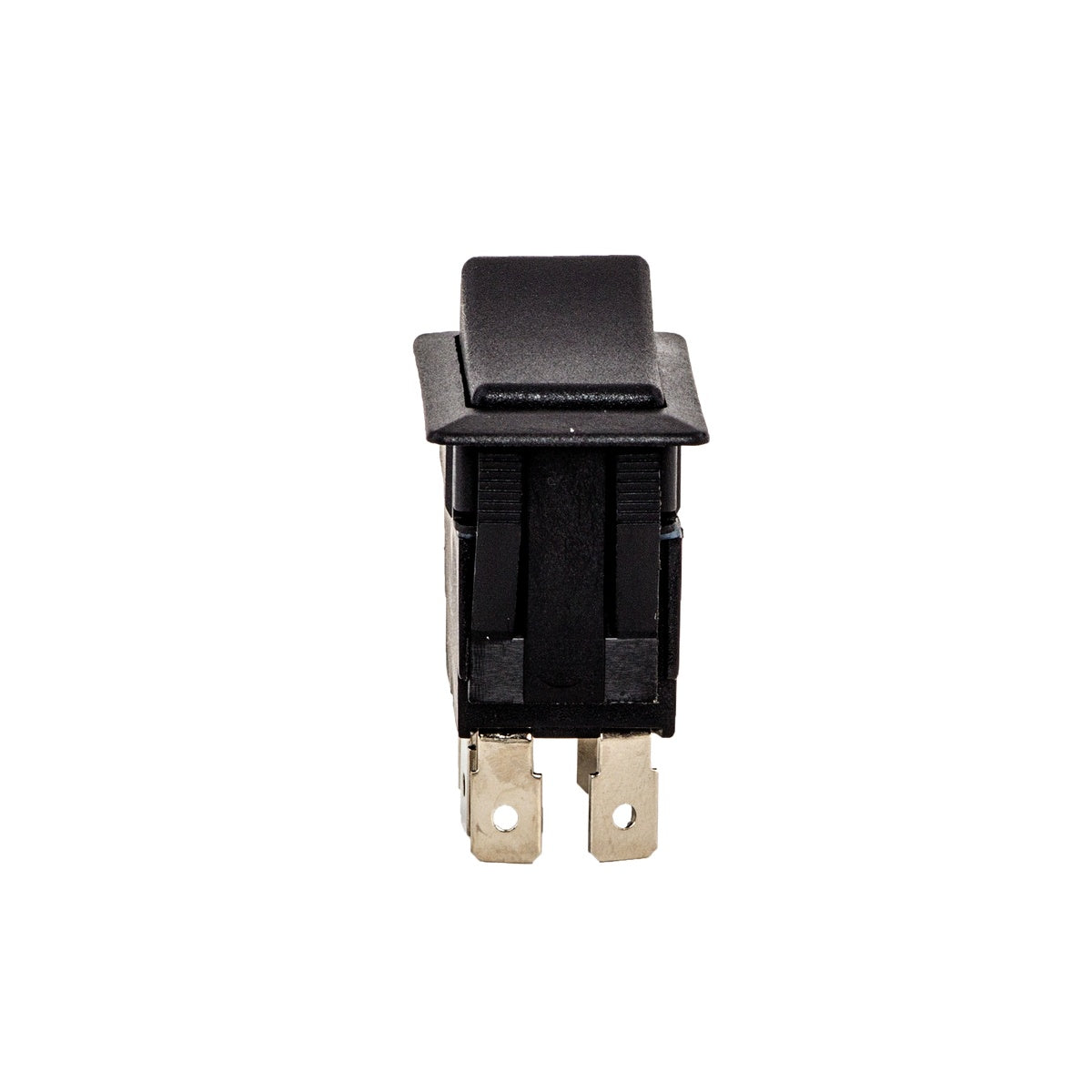

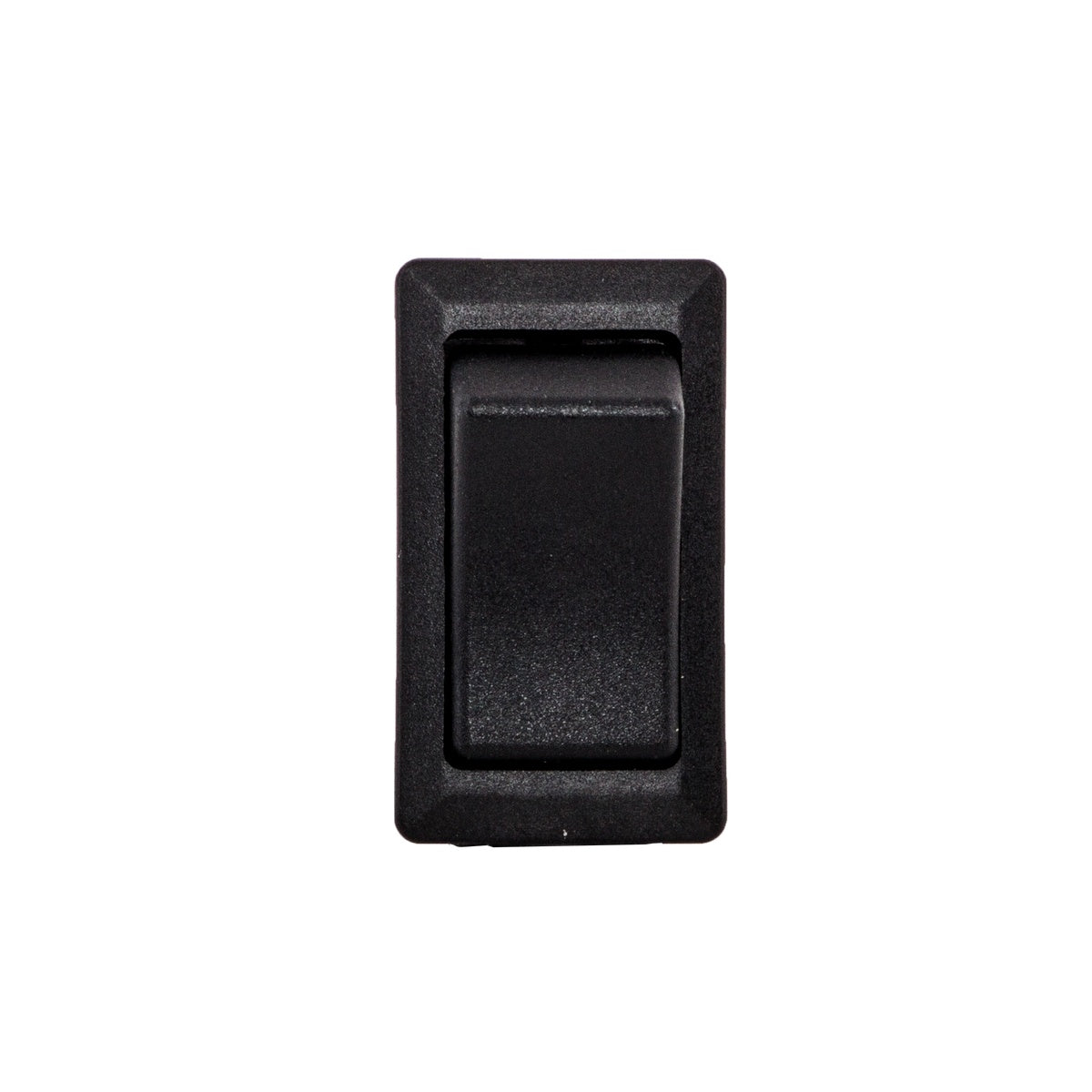

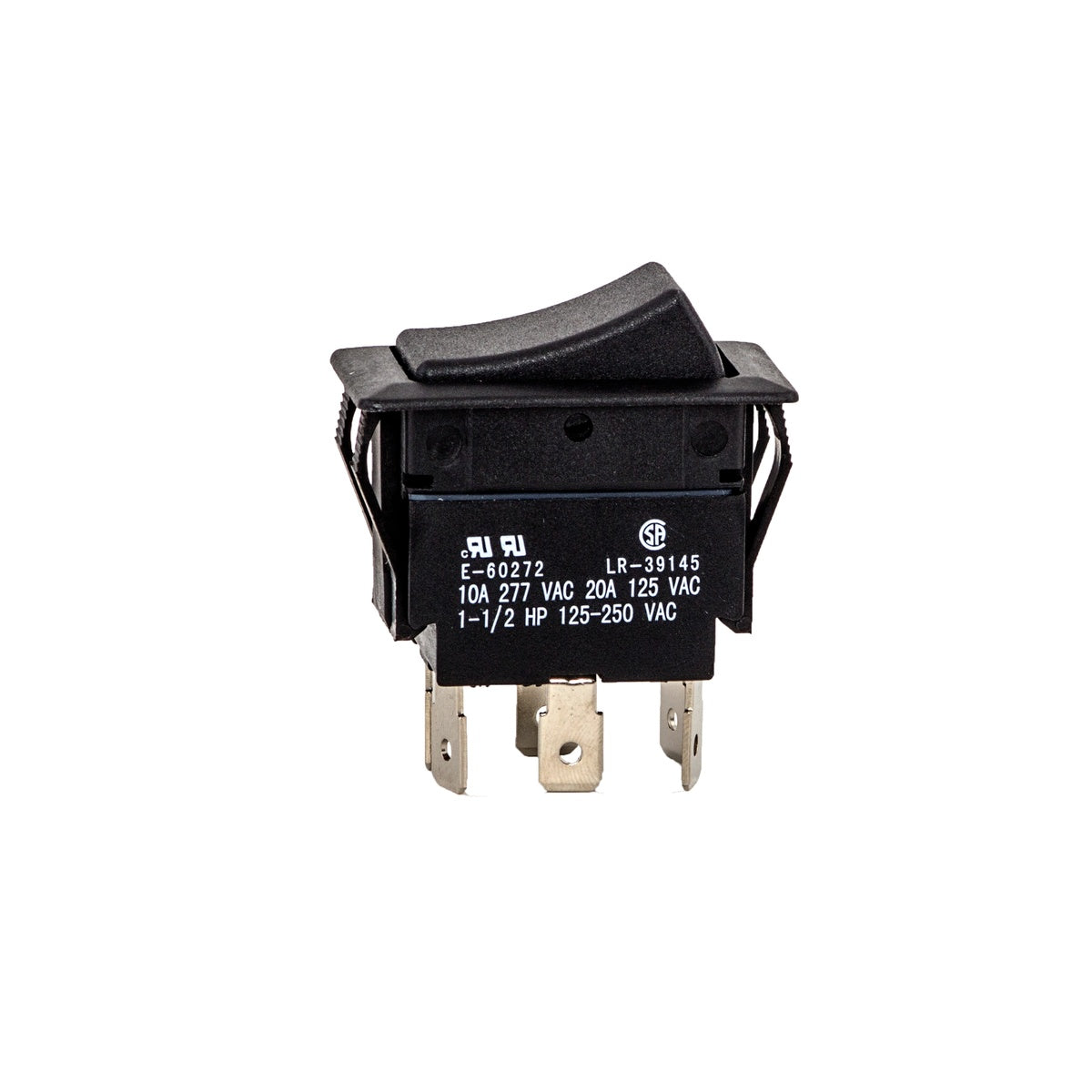

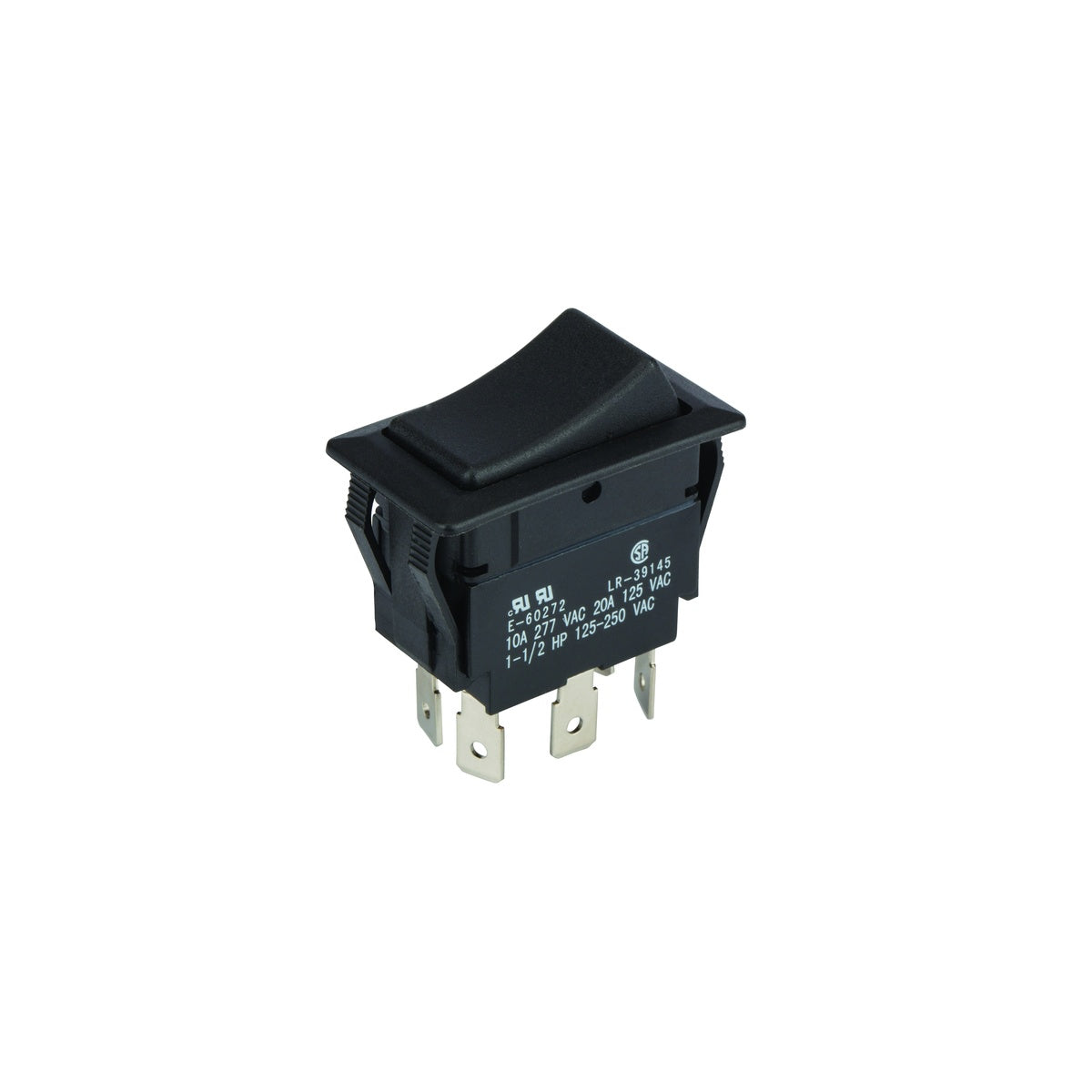

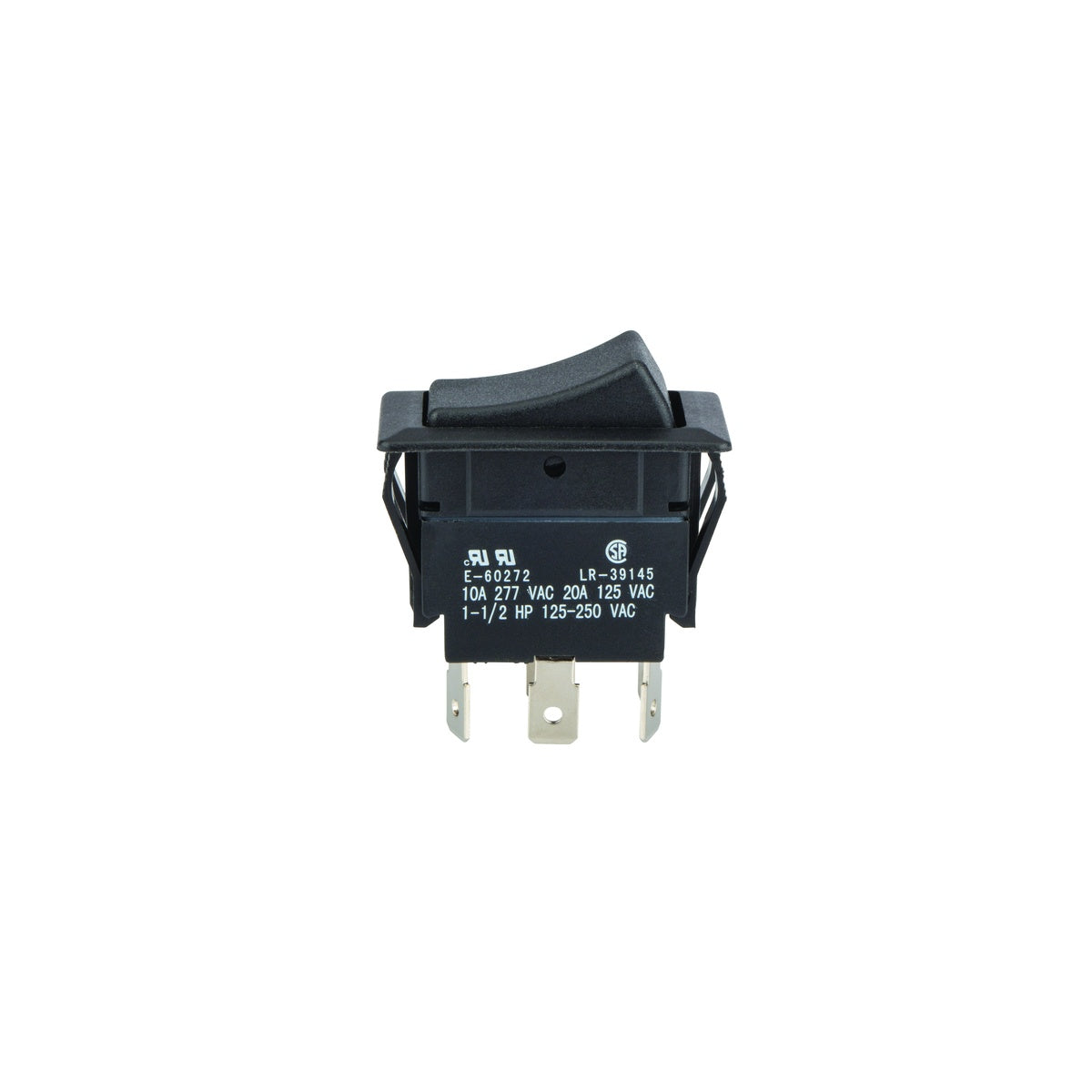

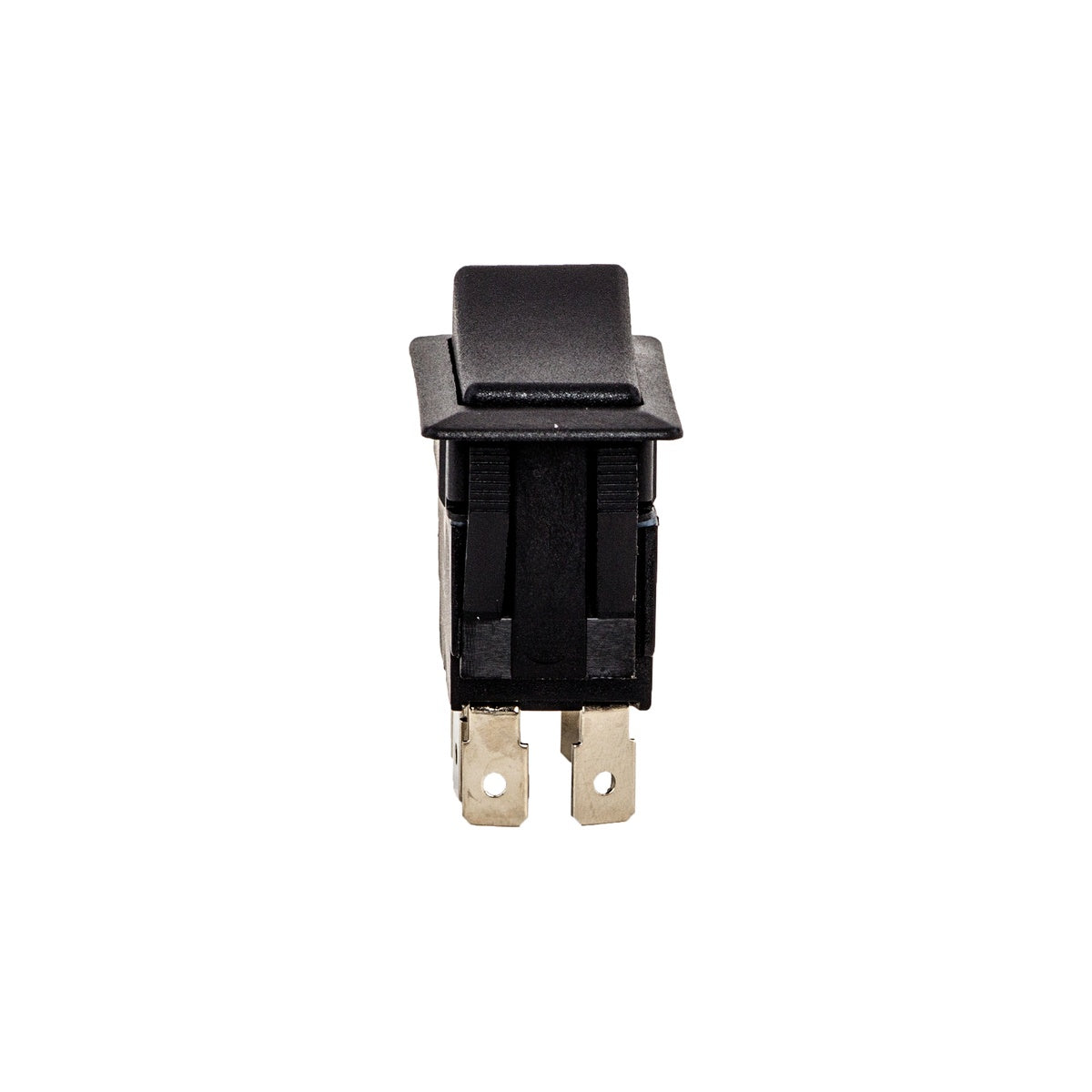

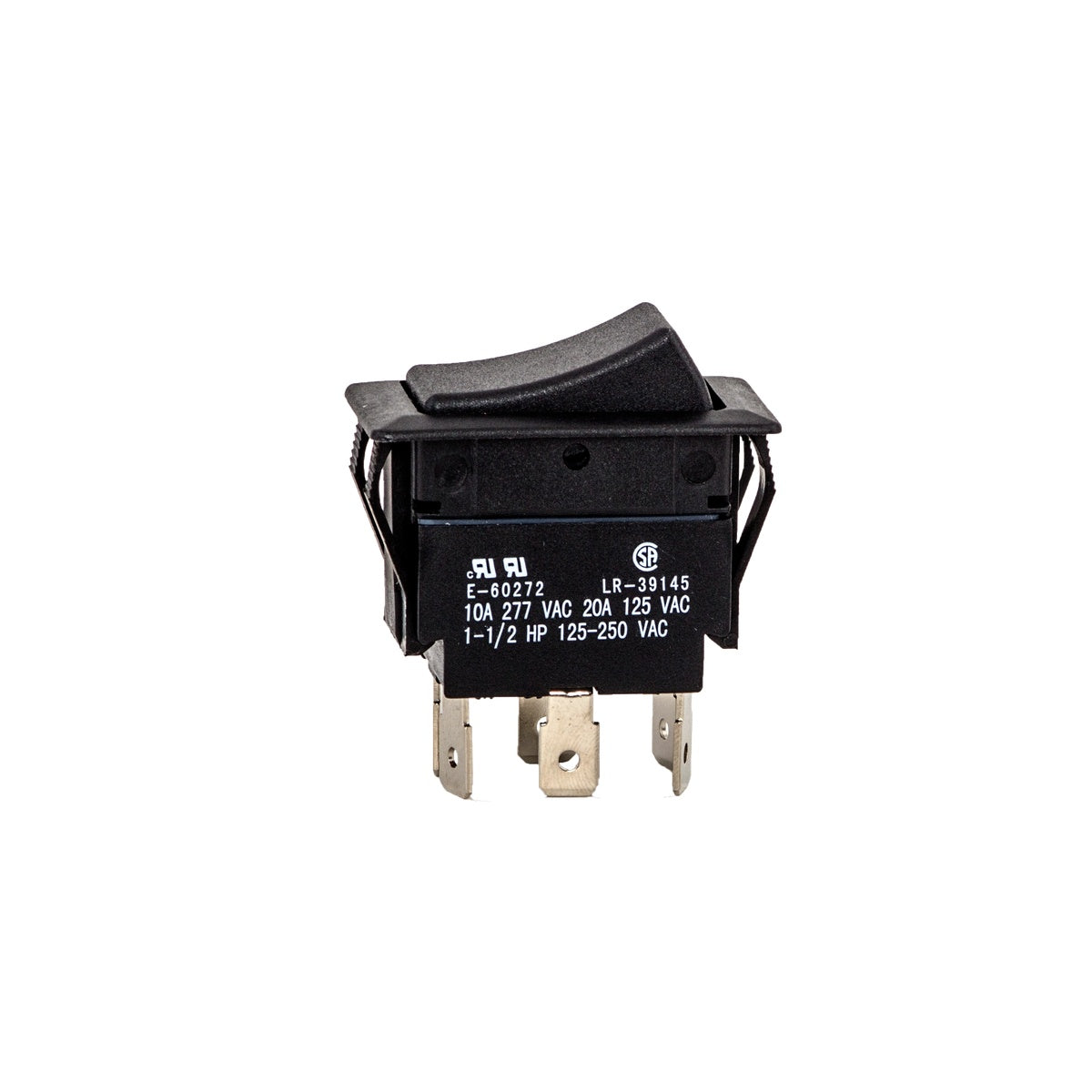

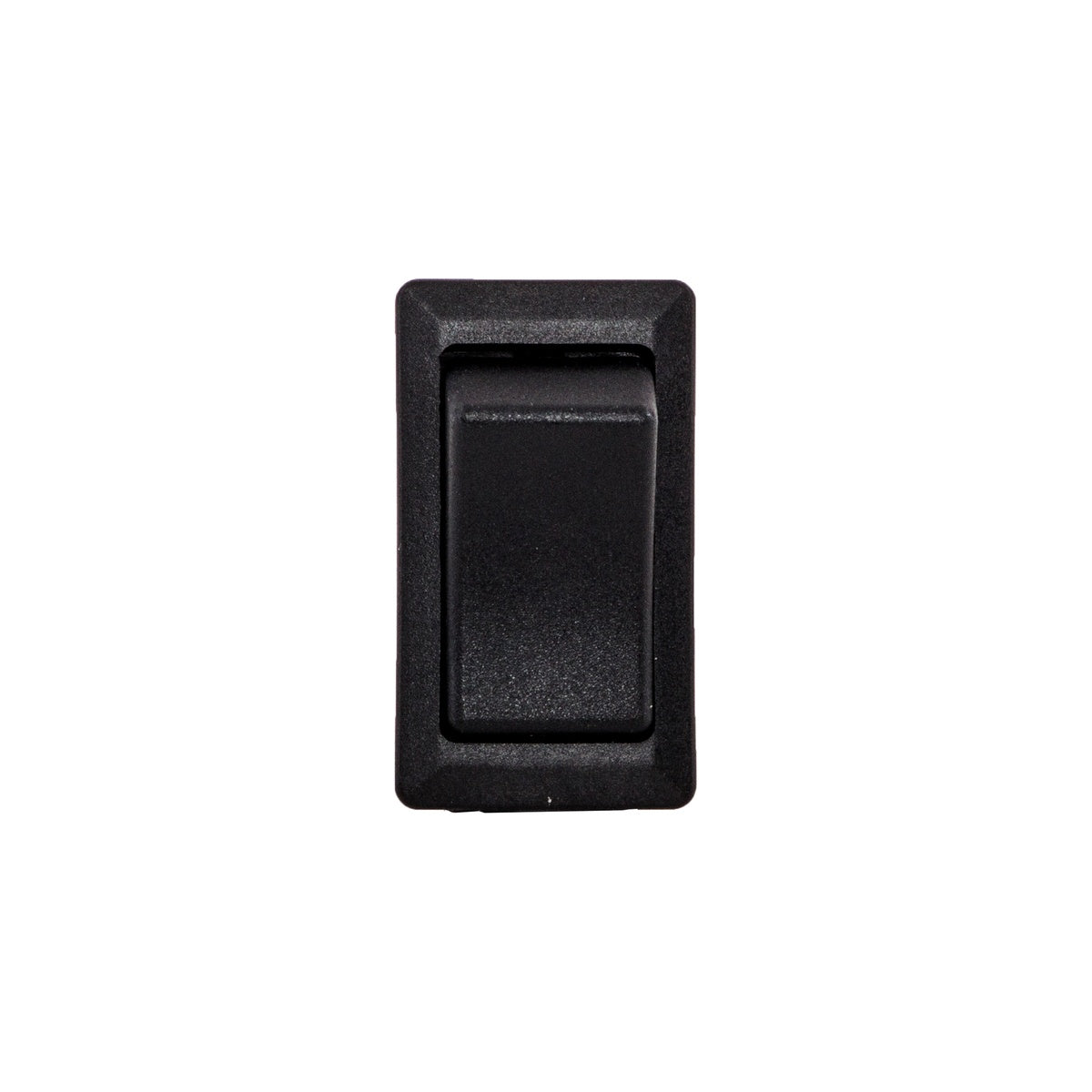

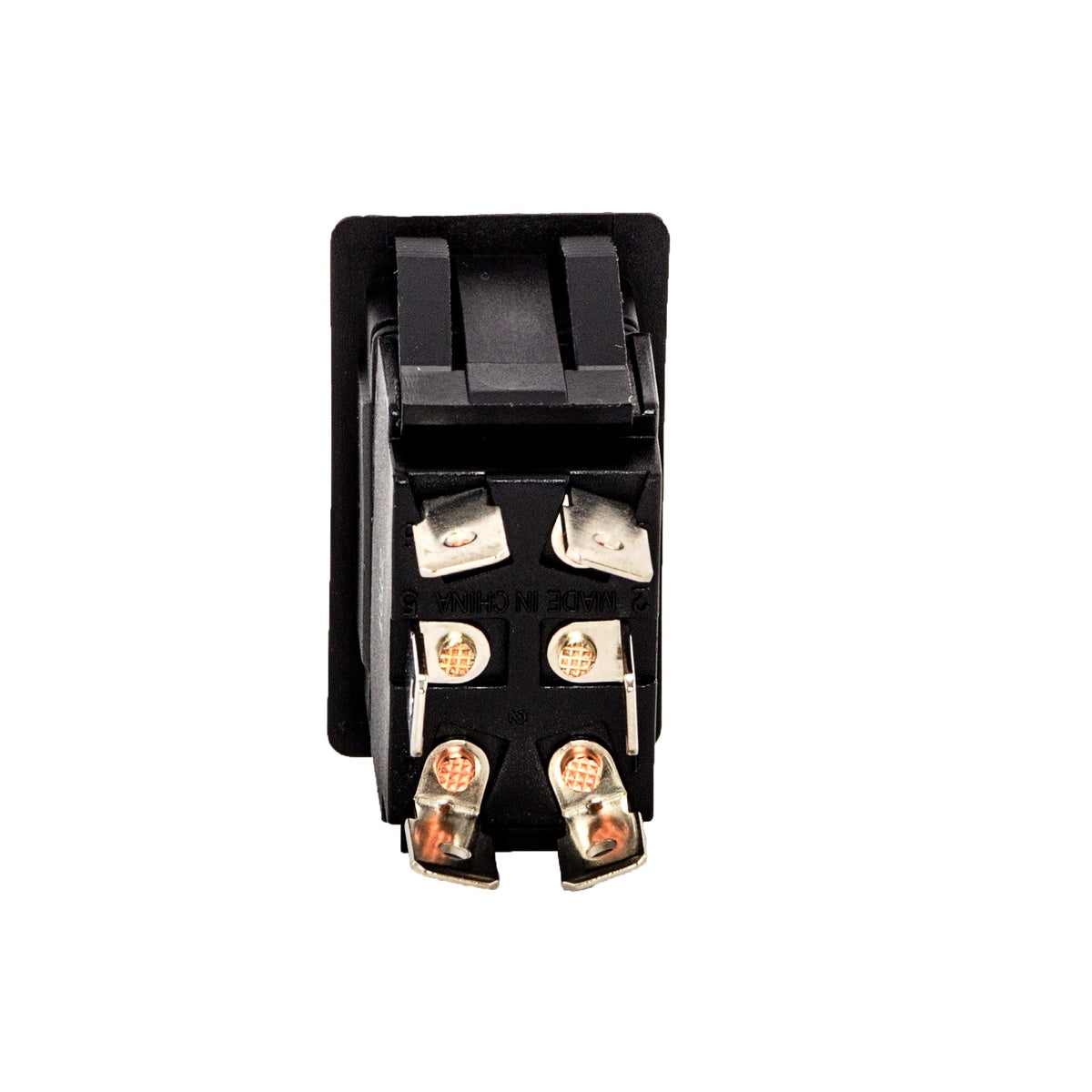

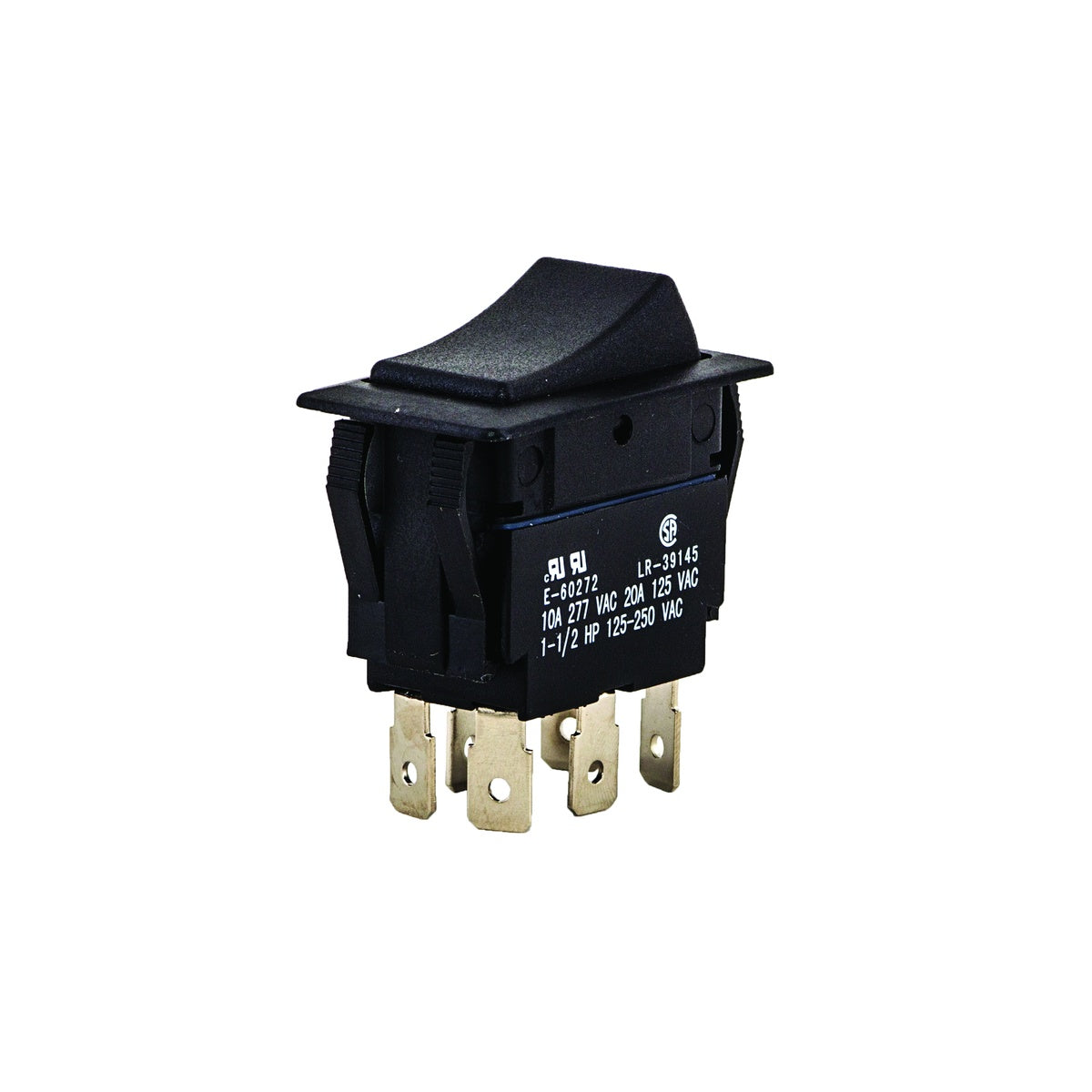

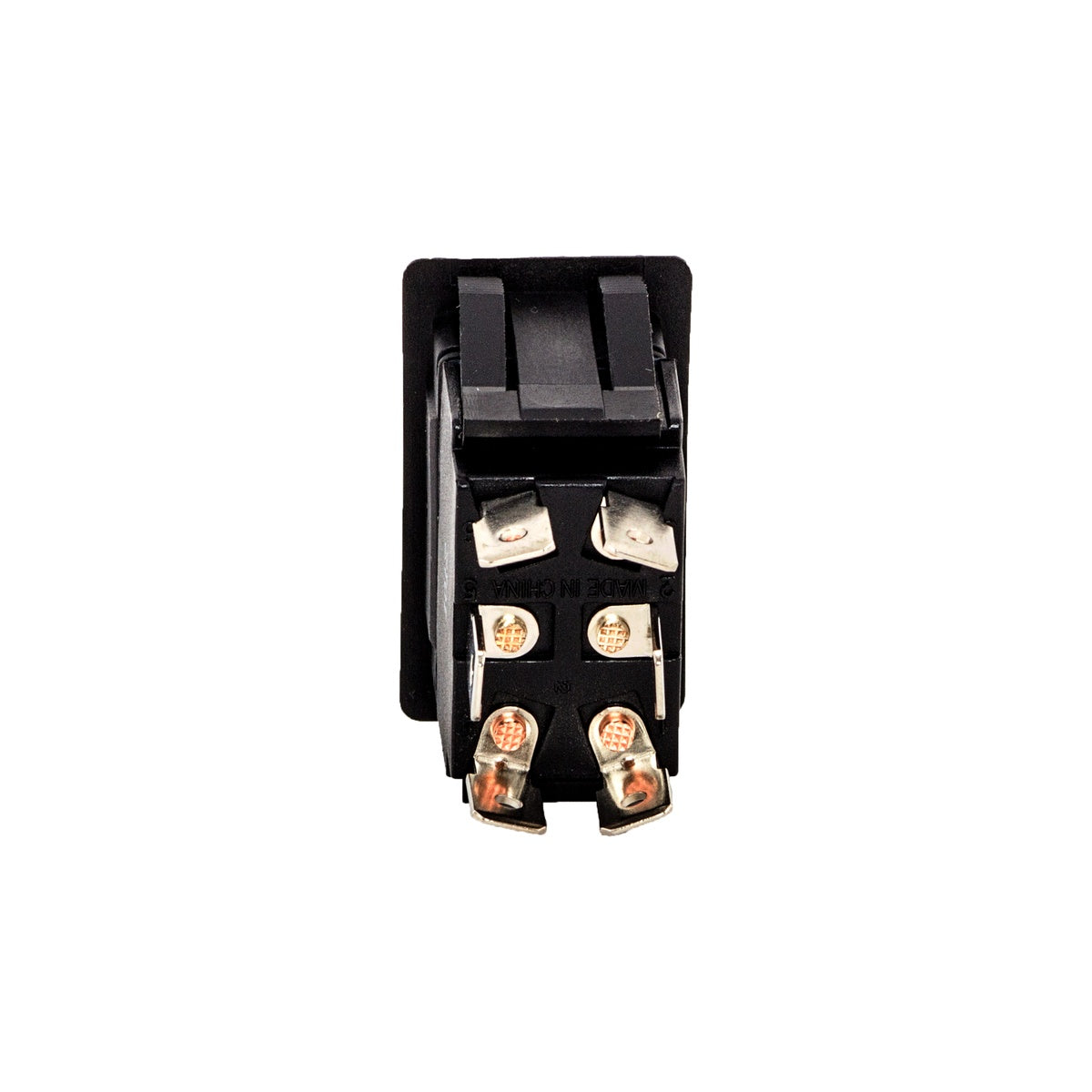

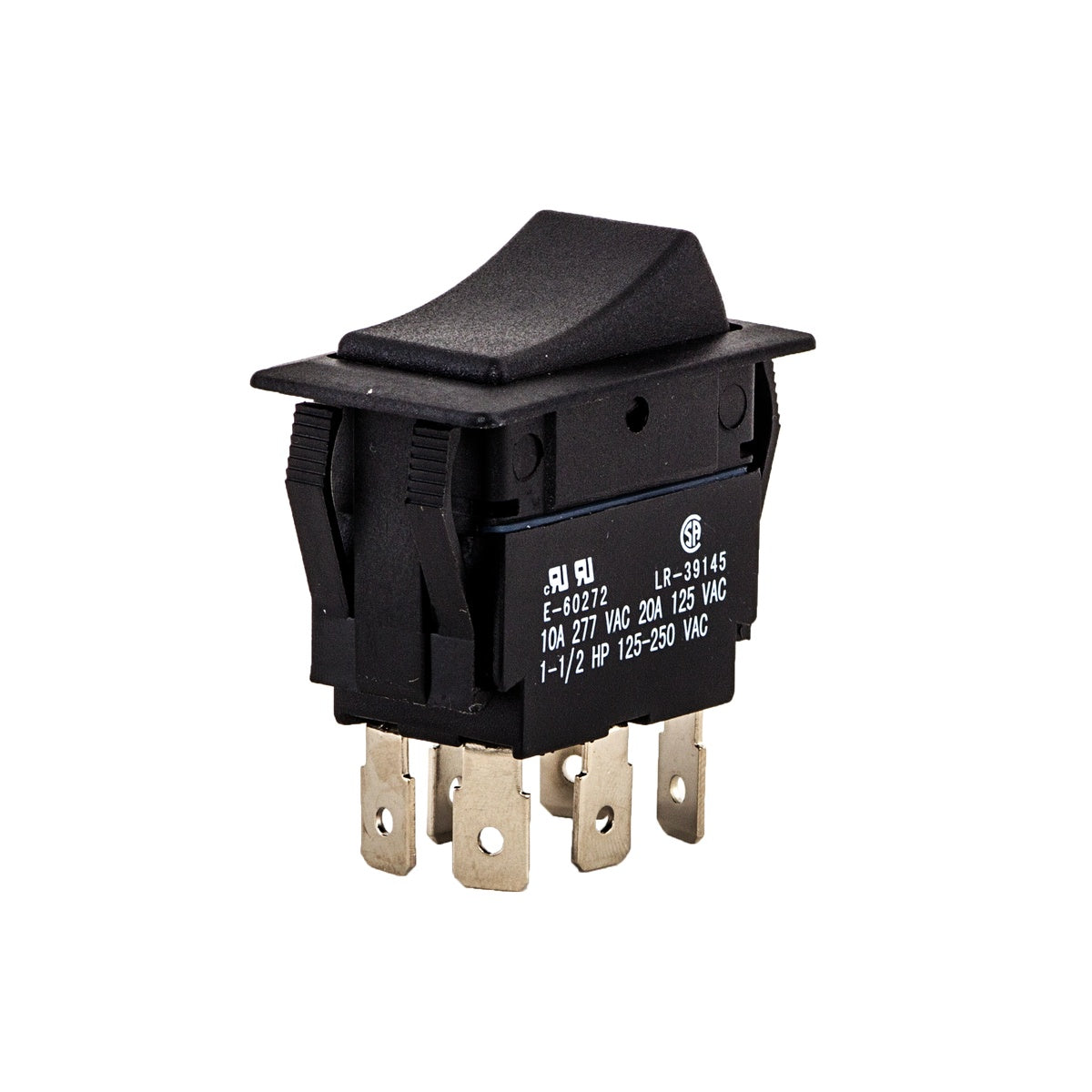

Rocker Switch Maintained DPDT On-On

This Rocker Switch Maintained DPDT On-On is designed for motor-equipment control applications. It is suitable for electrical distributors and lighting solutions requiring reliable switching components. The switch features a black thermoplastic rocker actuator with snap mount installation, ensuring ease of integration into various wire and cable setups. As a component from NSI Industries, it meets the demands of switchgear suppliers seeking durable and precise control switches.

Specifications

• Contact Configuration: DPDT
• Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Number of Poles: 1
• Actuator: Rocker
• Material: Thermoplastic
• Mounting: Snap Mount
• Color: Black
• Dimensions (L x W x H): 1.348 in x 0.75 in x 1.184 in
• Application: Motor-Equipment Control
• Product Weight: 0.0540 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: 77040RQ
• Country of Origin: Taiwan

Features

• Maintained ON-ON switch operation for stable control
• Non-lighted design suitable for various control panels
• QuikConnect terminals for fast and secure wiring
• Compact size optimized for space-constrained applications
