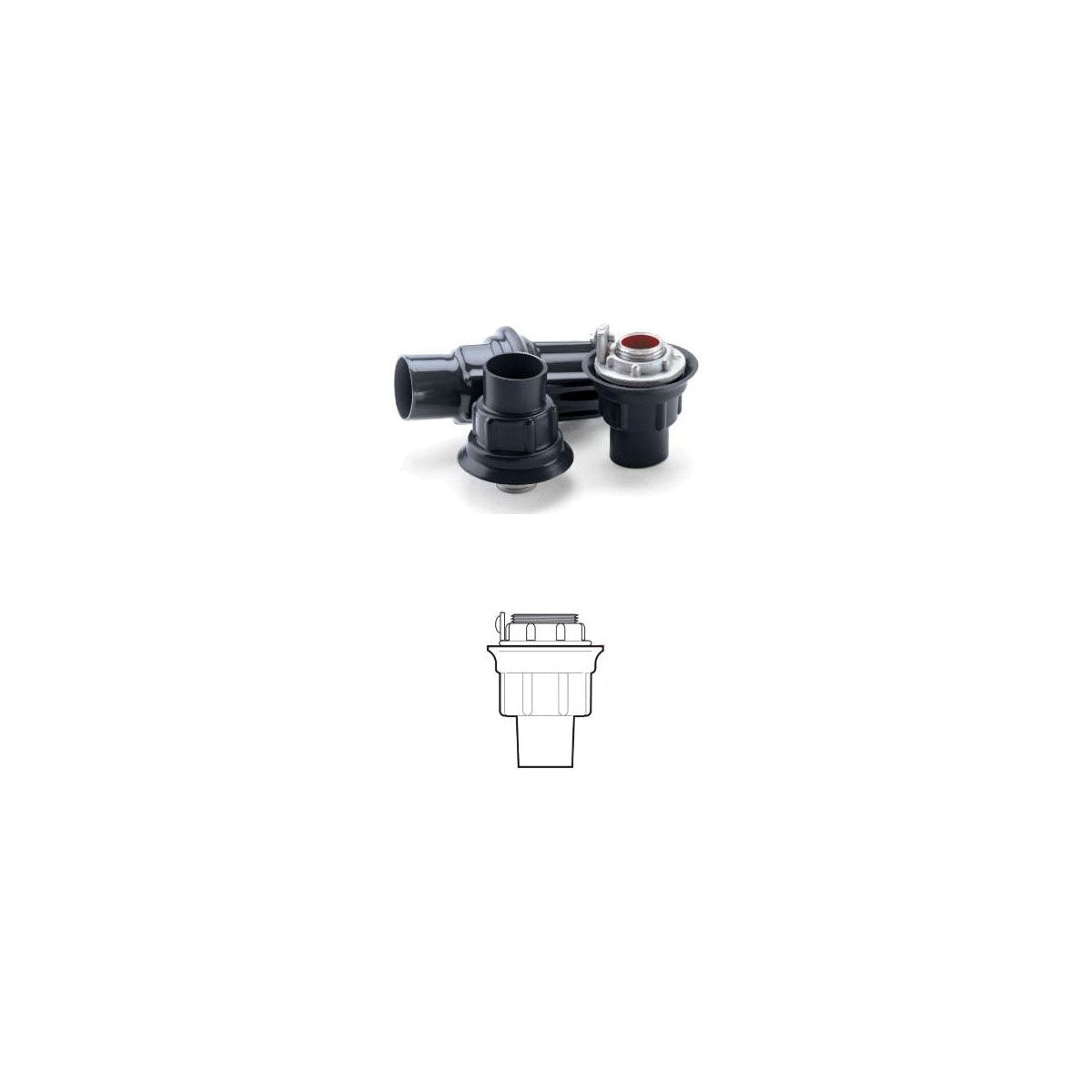

Description
Features
- Sealing Sleeves on Conduit Side of Hub
- Molded PVC Gasket Seals Flush with Enclosure Wall
- O-Ring Gasket Provides Additional Seal
- Furnished with a Grounding Lug
- Used to Terminate Conduit Runs Through the Wall of a Sheet Metal Electrical Enclosure
Additional Information
- Maximum Wall Thickness 0.25 Inch
- Seal Type O-Ring Gasket
- Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2
- Includes Grounding Lug
- Applicable Standard ISO 9001, NEC/CEC
Specifications
- Trade Size: 3 Inch
- Size: 5.25 Inch Diameter
- Constructional Feature: NEMA 2/3/3R/4/4X/11/12
- Ground Type: Grounding
- Material: 2 Mil Red Urethane (Interior)/40 Mil Gray PVC Coated (Exterior) Ferrous Metal
- Approval: UL 514B
- Used On: STG Style Conduit
- Series/Model: STG
- Weight: 2.100 lbs
Downloads
Specification/TechnicalCatalog
Data Sheet
Other 1
Other 2
Other 3
Catalog
Installation/Operator
More Information
Manufacturer Catalog Number
PRSTG8
Weight
2.1000
Material
Steel
Color
Red;Grey
Finish
Polyvinyl Chloride Coating
Outside Diameter
5.25 in
