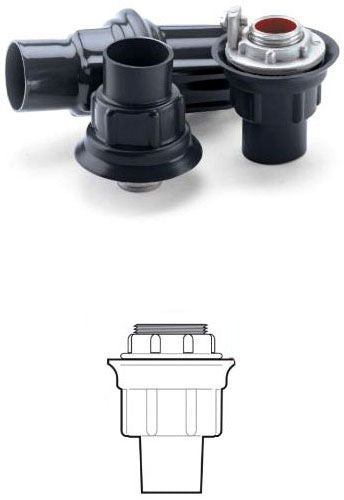

ROBROY PRST2 3/4 Knockout Hub - Electrical Conduit Fitting

The ROBROY PRST2 3/4 Knockout Hub is designed for terminating conduit runs through the wall of electrical enclosures, suitable for electrical and data wire raceways in harsh environments. This product is ideal for electrical distributors and switchgear suppliers seeking durable wire and cable raceway solutions. Manufactured from steel with a red and grey finish, it provides robust protection and reliable sealing for conduit installations.

Specifications

• Material: Steel
• Color: Red; Grey
• Outside Diameter: 2.25 in
• Product Weight: 0.3 lbs
• Manufacturer: Robroy Industries
• Manufacturer Part #: PRST2
• Application: Electrical and Data wire raceways in harsh environments
• Pipe Size: 3/4"
• Dimensions (from catalog data): A = 1.47 in, B = 2.25 in, C = 0.91 in
• Maximum Wall Thickness: 0.19 in
• UL Certification: UL 514B (E200413)
• Compliance: NEC/CEC Class I Division 2, Class II Division 1 & 2, Class III Division 1 & 2

Features

• 40 mil gray PVC exterior coating for corrosion resistance
• Sealing sleeves on conduit side of hub for secure fit
• Molded PVC gasket seals flush with enclosure wall ensuring tight seal
• O-ring gasket provides additional sealing protection
• Available with or without grounding lug
• Compatible with NEMA and UL type enclosures 2, 3, 3R, 4, 4X, 11, and 12
