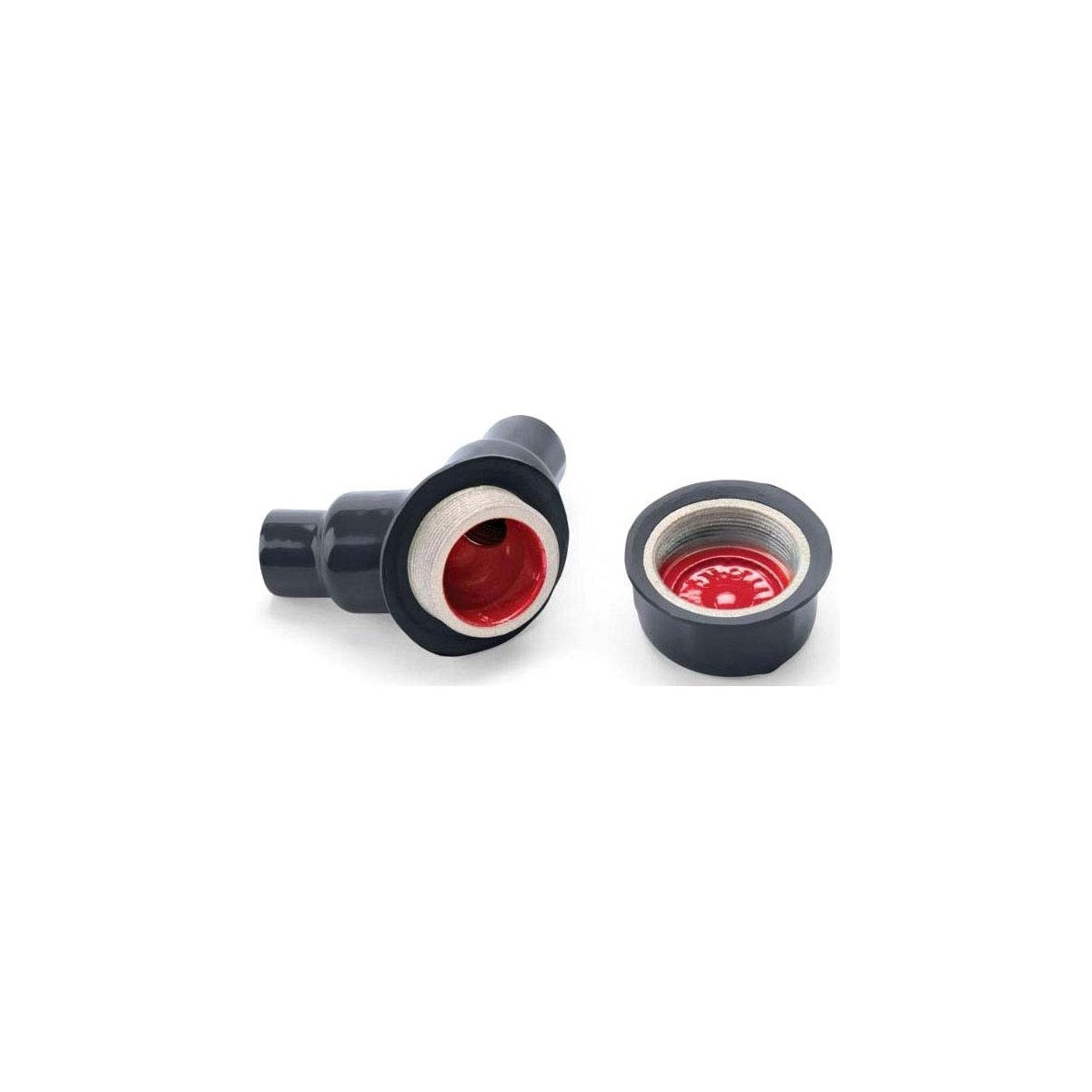

ROBROY PRLBY25 3/4 Service Entrance Elbow for Electrical Wire Raceways

The ROBROY PRLBY25 3/4 Service Entrance Elbow is designed for use in electrical and data wire raceways, particularly in harsh environments. It serves as a conduit fitting to change the direction of conduit runs by 90° where space is limited, typically between the service entrance and vertical weatherhead conduit runs. Suitable for both general service and hazardous locations, this elbow supports reliable wiring installations for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers.

Specifications

• Material: Steel
• Color: Red; Grey
• Outside Diameter: 2.33 in
• Product Weight: 1.7 lbs
• Manufacturer: Robroy Industries
• Manufacturer Part #: PRLBY25
• Application: Electrical and Data wire raceways in harsh environments

Features

• 40 mil gray PVC exterior coating for corrosion resistance
• 2 mil red urethane interior coating for enhanced durability
• Sealing sleeves on all female conduit openings to maintain system integrity
• Molded PVC gasket seals fitting cover to body for secure installation
• Complies with NEC/CEC standards for hazardous locations including Class I, Division 1 & 2 Groups C, D; Class II, Division 1 Groups E, F, G; Class II, Division 2 Groups F, G; and Class III
