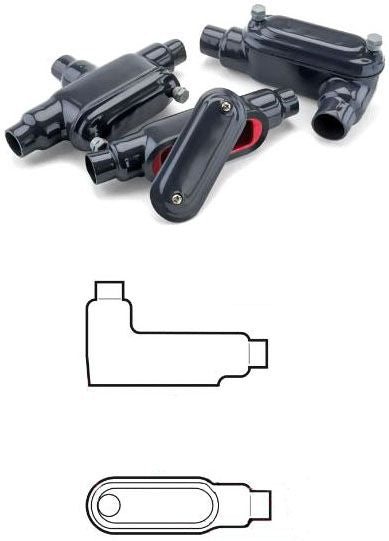

ROBROY PRLB87 3 FORM 7 LB FITTING Electrical Conduit Body

The ROBROY PRLB87 3 Form 7 LB fitting is a coated conduit body designed for electrical and data wire raceways in harsh environments. It provides a durable solution for making 90° bends, pull outlets, taps, splices, and mounting outlets for wiring devices or lighting fixtures. This product is suitable for electrical distributors and switchgear suppliers requiring reliable conduit system continuity and protection.

Specifications

• Material: Steel
• Color: Red; Grey
• Length: 12.54 in
• Product Weight: 13.0 lb
• Application: Electrical and Data wire raceways in harsh environments
• Manufacturer: Robroy Industries
• Manufacturer Part #: PRLB87
• UPC: 784011203703

Features

• 40 mil gray PVC exterior coating
• 2 mil red urethane interior coating
• Sealing sleeves on all female conduit openings
• Form 7 style cover uses retained stainless screw and wedge clip design
• Maintains electrical continuity across assembled joints
• NEMA 3R Raintight when installed with cover and gasket
• UL 514A, 514B, 514D and CSA C22.2 certified

Downloads & Links

• Spec Sheet
• Spec Sheet
