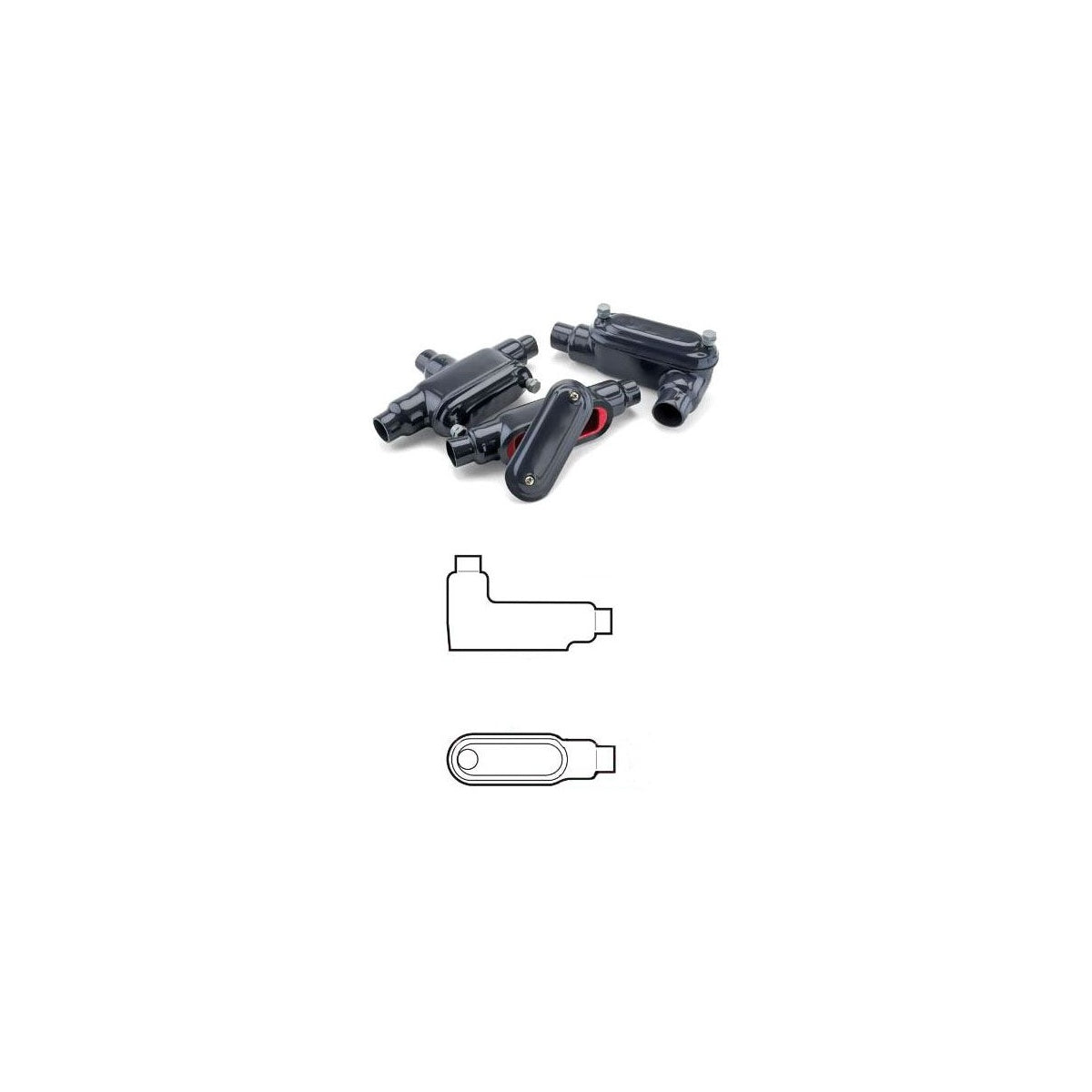

ROBROY PRLB67 2 FORM 7 LB FITTING - Electrical Conduit Body

The ROBROY PRLB67 2 Form 7 LB fitting is a coated conduit body designed for electrical and data wire raceways in harsh environments. Manufactured by Robroy Industries, this steel fitting provides a durable solution for making 90° bends, pull outlets, taps, splices, or mounting outlets for wiring devices and lighting fixtures. It ensures electrical continuity across assembled joints, making it suitable for electrical distributors and switchgear suppliers requiring reliable conduit system components.

Specifications

• Material: Steel
• Color: Red; Grey
• Length: 10.17 in
• Product Weight: 5.2 lbs
• Application: Electrical and Data wire raceways in harsh environments
• Manufacturer: Robroy Industries
• Manufacturer Part #: PRLB67
• Pipe Size: 2"
• Nominal Weight: 5.2 lbs
• Dimensions (inches): A = 8.17, B = 4.25, C = 3.08, D = 2.44, E = 6.38
• UPC: 784011203680

Features

• 40 mil gray PVC exterior coating
• 2 mil red urethane interior coating
• Sealing sleeves on all female conduit openings
• Form 7 style cover with retained stainless steel screw and wedge clip design
• Electrical continuity maintained across assembled joints
• NEMA 3R Raintight when installed with cover and gasket
• UL 514A, 514B, 514D and CSA C22.2 No. 18, No. 42 certified

Downloads & Links

• Spec Sheet
• Spec Sheet
