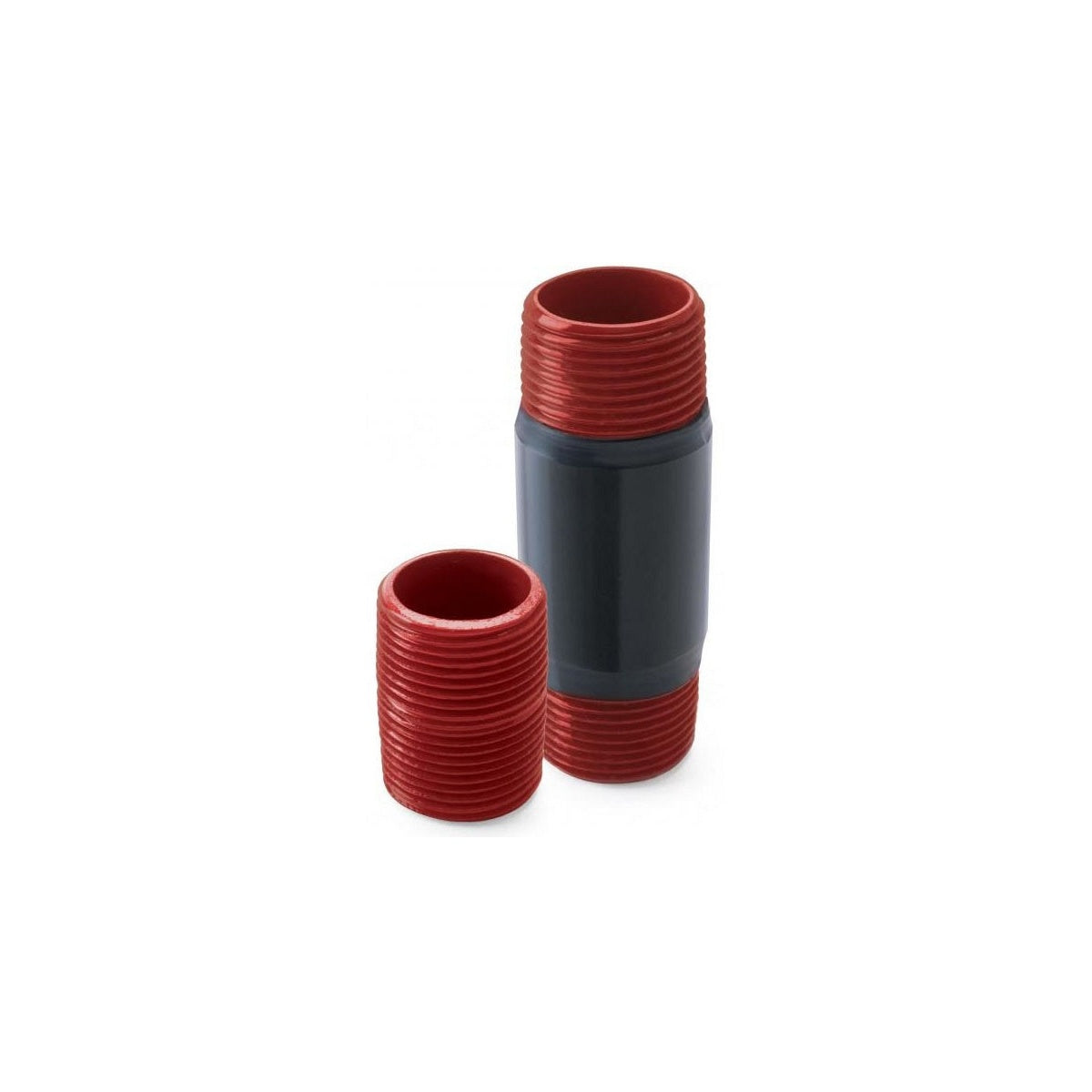

ROBROY PRHNIP-3X12 3X12 NIPPLE Steel Conduit Nipple

The ROBROY PRHNIP-3X12 is a factory-threaded steel nipple designed for electrical and data wire raceways in harsh environments. It features a robust protective coating system suitable for use by electrical distributors and switchgear suppliers requiring durable conduit solutions. The nipple maintains electrical continuity across assembled joints, making it ideal for reliable lighting solutions and wire and cable installations.

Specifications

• Material: Steel
• Color: Red; Grey
• Product Weight: 708.0000 grams
• Application: Electrical and Data wire raceways in harsh environments
• Manufacturer Part #: PRHNIP-3X12
• UPC: 784011210732
• Standards: UL 6 (E2314); UL 6A (E98405); CSA C22.2 No. 45

Features

• 40 mil gray PVC exterior coating
• 2 mil red urethane interior coating
• Factory-threaded for quick installation
• Maintains electrical continuity across assembled joints
• Plastic thread protector caps are color coded for quick size identification
• Available in 12 trade sizes from 1/2” through 6” and 11 standard lengths from 2” through 12”
• Made-to-order lengths available in 1/2” increments
