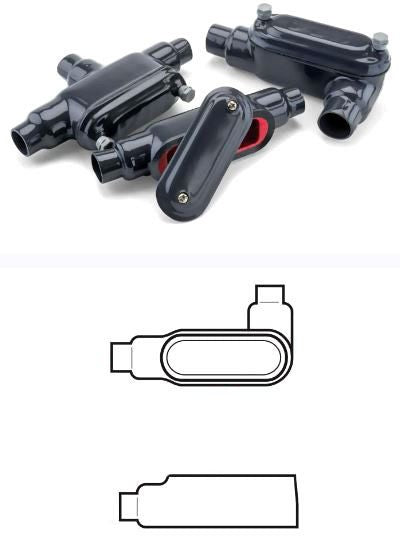

ROBROY PRHLR38 1 FORM 8 LR FITTING - Electrical Conduit Body

The ROBROY PRHLR38 1 Form 8 LR Fitting is a coated conduit body designed for electrical and data wire raceways in harsh environments. Manufactured by Robroy Industries, this steel fitting provides a secure and corrosion-resistant solution for making 90° bends, pull outlets, taps, splices, or mounting outlets for wiring devices and lighting fixtures. It is suitable for use by electrical distributors and switchgear suppliers seeking durable conduit components for reliable wiring systems.

Specifications

• Material: Steel
• Color: Red; Grey
• Length: 7.51 in
• Product Weight: 2.9 lbs
• Manufacturer Part #: PRHLR38
• UPC: 784011203932
• Application: Electrical and Data wire raceways in harsh environments

Features

• 40 mil gray PVC exterior coating for corrosion protection
• 2 mil red urethane interior coating
• Sealing sleeves on all female conduit openings
• Form 8 style cover with plastic encapsulated stainless steel screws and retainers
• Integral V-Seal gasket for superior corrosion resistance
• Maintains electrical continuity across assembled joints
• Meets UL 514A, 514B, 514D and CSA C22.2 No. 18, 42 standards
• Rated IEC IP69 and UL Type 4X for environmental protection
