Features

• Sealing Sleeves on all Female Conduit Openings
• Form 8 Style Cover Uses Plastic Encapsulated Stainless Steel Screws with Retainers Built into Covers
• Electrical Continuity of the Conduit System is Maintained Across Assembled Joint

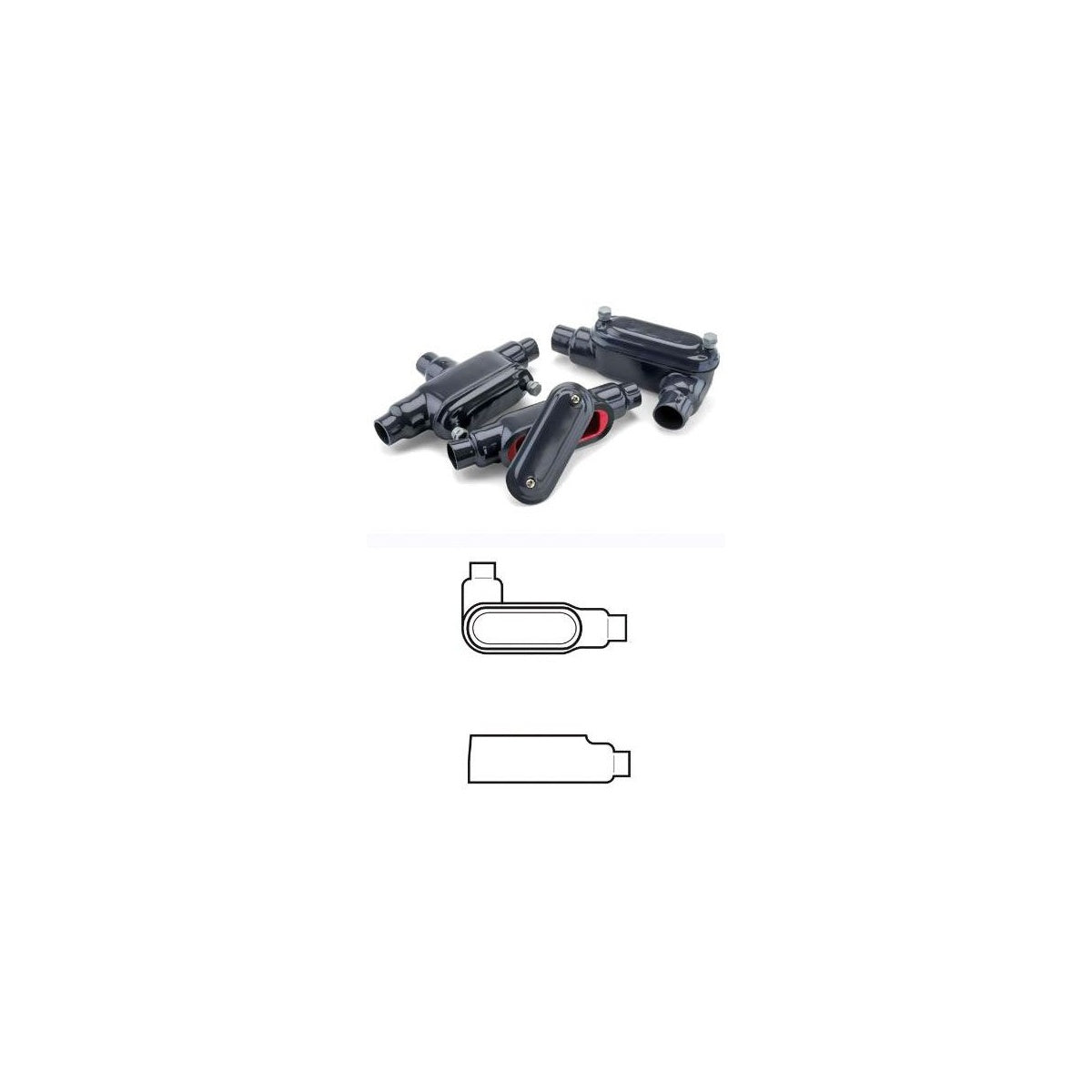

• PVC Coated Form 8 Conduit Bodies with Covers are Offered in Numerous Configurations to Provide a Complete Coated Conduit System
• Electrical Continuity of the Conduit System is Maintained Across Assembled Joints
• Conduit Bodies Connect Sections of Conduit and Provide for Access to Conductors for Maintenance and Future System Changes
• They May be Used for Pull Outlets for Conductors Being Installed or to Provide Openings for Making Taps or Splices in Conductors or to Make 90 Degree Bends
• Offered in Numerous Configurations for 90 Degree Bends, Taps or Splices or Mounting Outlets
• Sealing Sleeves on All Conduit Opening
• Plastic Encapsulated Stainless Steel Screws with Retainers Built into Cover
• V-Seal Gasket

Additional Information

• Cover Seal V-Seal Gasket
• Enclosure Rating NEMA 4X, IP69
• Applicable Standard IEC, ISO 9001

Specifications

• Access Opening: Left Side
• Configuration: LL
• Cover Type: Plastic Encapsulated Stainless Steel Screw
• Hub Location: 90 Degree
• Number of Hubs: 2
• Hub Size: 1 Inch
• Size: 1.98 Inch Width
• Installation: Screw
• Material: 2 Mil Red Urethane (Interior)/40 Mil Gray PVC Coated (Exterior) Ferrous Metal
• Form Type: Form 8
• Approval: UL (Canada and US), UL 514A/514B/514D, CSA C22.2
• Weight: 2.600 lbs
