Features

• Plastic Thread Protector Caps are Color Coded for Quick Identification of Conduit Size
• 12 Trade Sizes from 1/2 Inch Through 6 Inch

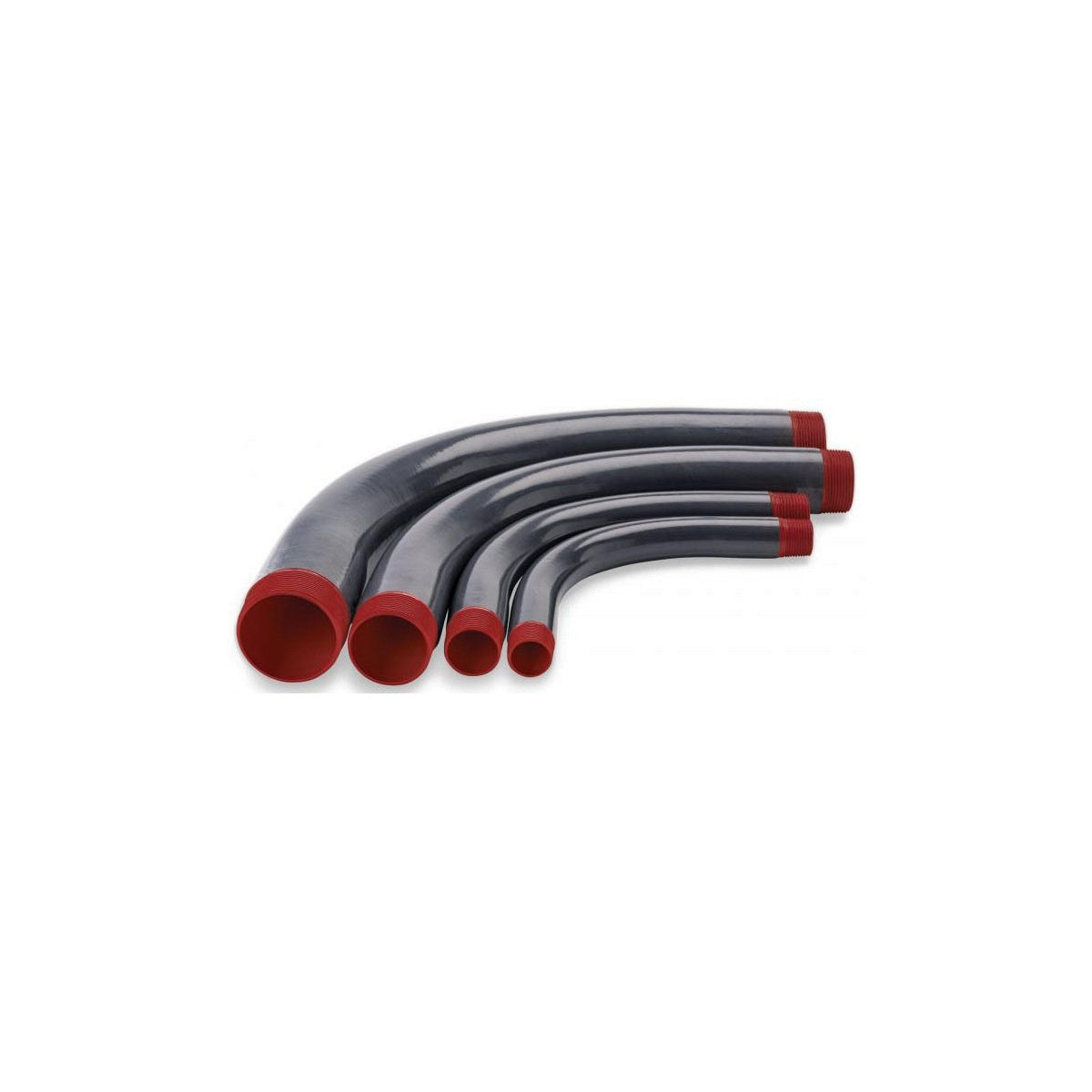

• Factory-Bent PVC Coated Elbows are More Accurate, Quicker to Install and More Economical Because they Eliminate Field Bending Time and Waste of Material
• Electrical Continuity is Maintained across Assembled Joints
• Both PVC and Zinc Coatings have been Investigated as Primary Protection Against Corrosion
• Restricted for Use with Threaded Fittings Only
• Factory Bent Elbows are More Accurate, Quicker to Install and More Economical, Because they Save Field Bending Time and Do Not Waste Materials
• Electrical Continuity is Maintained Across Assembled Joints

Additional Information

• Nipple Length 14-3/4 Inch
• Thread Protector Color Blue

Specifications

• Type: Standard Radius
• Trade Size: 1 Inch
• Bend Angle: 90 Degree
• Bend Radius: 5.75 Inch
• End Type: External Threaded
• Material: Steel
• Finish: 2 Mil Red Urethane (Interior and Thread)/40 Mil Gray PVC (Exterior)
• Standard Package: 20 per Pack
• Approval: UL (Canada and US), UL 6, CSA C22.2
• Applicable Standard: ISO 9001
• Series/Model: PRHELB
• Weight: 205.000 100
