Features

• Protects Conductors from Mechanical Damage and Corrosive Attack Electrical Continuity is Maintained Across Assembled Joint
• One "No Charge" Coupling Included with Each 10 Foot Length of Conduit
• Color-Coded Thread Protector Caps for Quick Identification of Conduit Size

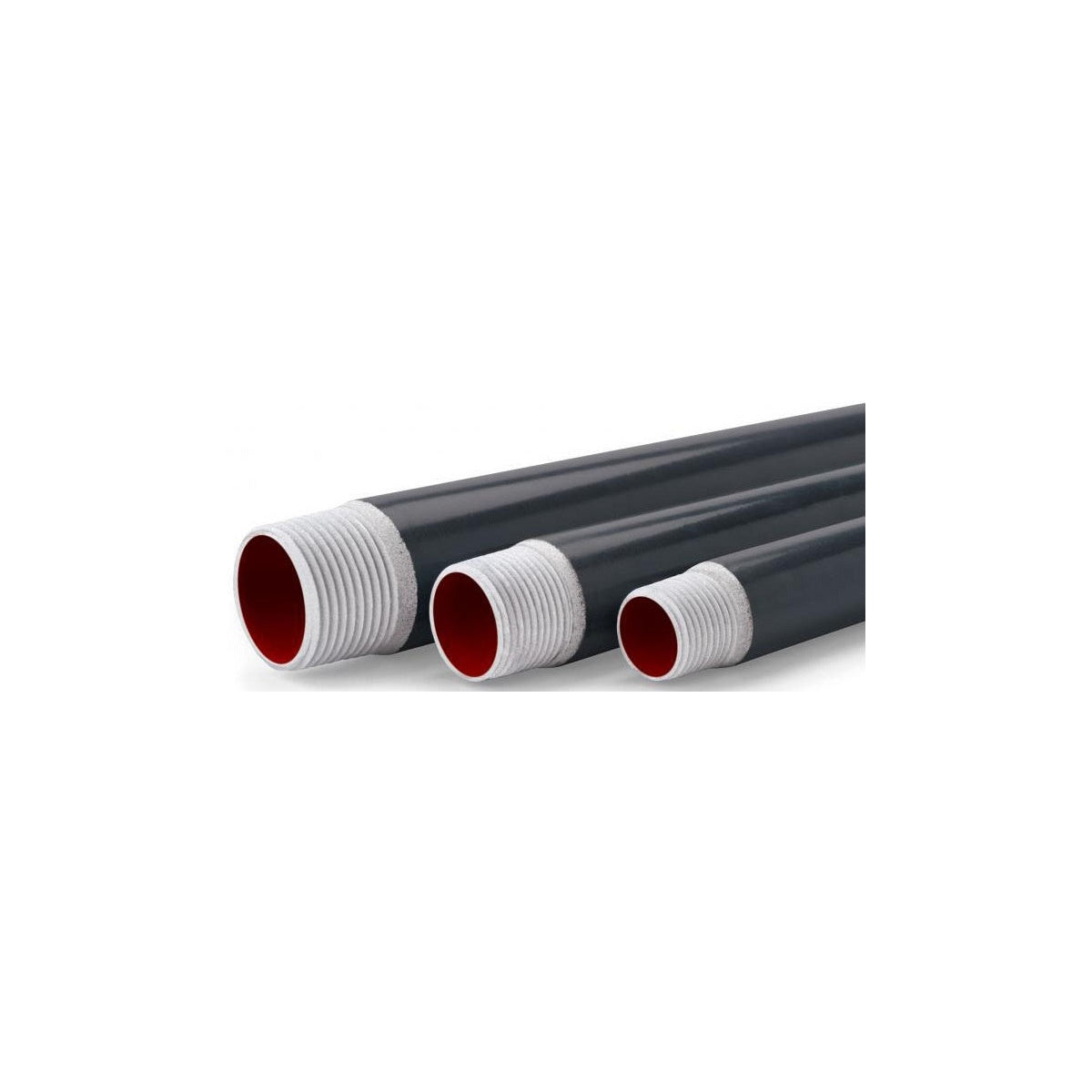

• PVC Coated Galvanized Rigid Conduit with Urethane Interior Coating Protects Conductors from Mechanical Damage and Corrosive Attack
• Electrical Continuity is Maintained Across Assembled Joints
• A Clear Urethane Coating Over Hot Galvanized Threads

Additional Information

• Thread Protector Color Black
• Traverse Area 0.314 Square Inch
• Includes Coupling

Specifications

• Trade Size: 1/2 Inch
• Length: 10
• Inner Diameter: 0.632 Inch
• Outer Diameter: 0.92 Inch
• Wall Thickness: 0.104 Inch
• End Style: Threaded
• Material: Galvanized Steel
• Finish: 2 Mil Red Urethane (Interior)/40 Mil Gray PVC (Exterior)/Clear Urethane Coated (Thread)
• Standard Package: 2170 Foot per Pack
• Approval: UL (Canada and US), UL 6, CSA C22.2, ETL
• Applicable Standard: ANSI C80.1, ISO 9001
• Weight: 85.000 lbs
