Features

• Sealing Sleeves on all Female Conduit Openings
• Neoprene O-Ring is Standard
• Molded-In PVC Seal Preserves Venting Characteristics of Fitting but Seals Out Corrosives
• Standard Material is a Cast Iron Alloy Body with a Copper-Free Aluminum Cover, Consult Factory for Availability of Cast Iron Covers
• Internal Green Grounding Screw is Standard
• Molded-In PVC Seal Preserves Venting Characteristics of Fitting but Seals out Corrosives
• Sealing Sleeves on All Conduit Opening
• Standard Material is a Cast Iron Alloy Body with a Copper-Free Aluminum Cover
• Installed in Hazardous Location to Serve as Pull and Splice Boxes to Change the Direction of a Conduit Run to Connect Runs of Conduit or to Provide Access to Conductors

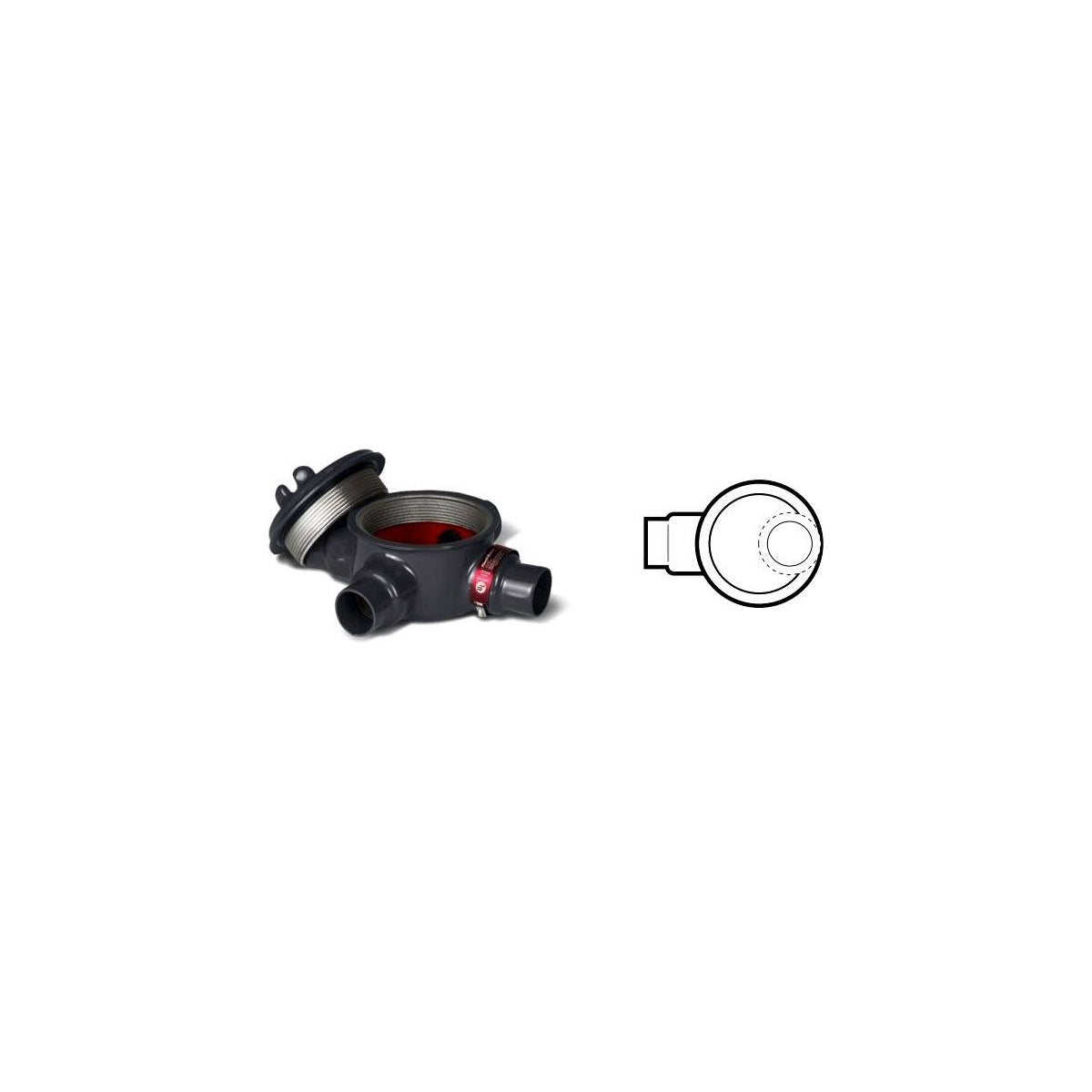

• PVC Coated GUA Series Conduit Outlet Boxes are Installed in Hazardous Location Conduit Systems to Serve as Pull and Splice Boxes to Change the Direction of a Conduit Run to Connect Runs of Conduit or to Provide Access to Conductors
• Electrical Continuity of the Conduit System is Maintained Across Assembled Joints

Additional Information

• Includes Copper-Free Aluminum Cover
• Application Hazardous Location
• Applicable Standard ANSI C33.27, NEC/CEC, ISO 9001

Specifications

• Style: GUAB
• Hub Size: 1 Inch
• Hub Type: External
• Number of Hubs: 3
• Hub Location: (3) Side
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4
• Material: 2 Mil Red Urethane (Interior)/40 Mil Gray PVC Coated (Exterior) Ferrous Metal
• Approval: UL (Canada and US), UL 1203, CSA C22.2
• Series/Model: GUA
• Weight: 3.800 lbs
