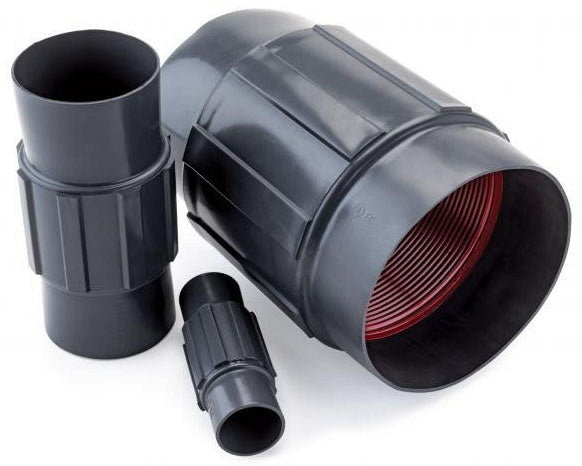

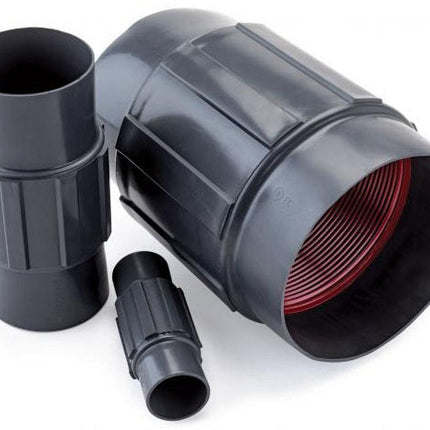

ROBROY PRCPLG-3/4 3/4 COUPLING - PVC-Coated Coupling for Electrical Wire Raceways

The ROBROY PRCPLG-3/4 3/4 Coupling is designed for connecting conduit sections in electrical and data wire raceways, particularly in harsh environments. This steel coupling features a PVC-coated exterior with a red urethane interior to maintain electrical continuity and protect threaded joints from corrosive liquids and vapors. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant fittings.

Specifications

• Material: Steel
• Color: Red; Grey
• Outside Diameter: 1.531" IN
• Product Weight: 32.0000 lbs per 100 units
• Application: Electrical and Data wire raceways in harsh environments
• Manufacturer: Robroy Industries
• Manufacturer Part #: PRCPLG-3/4

Features

• 40 mil gray PVC exterior coating
• 2 mil red urethane interior coating over galvanized threads
• Sealing sleeves on both ends to prevent corrosion at threaded joints
• Molded external ribs for ease of installation (on sizes 1/2” through 4”)
• Couplings are straight tapped for secure connection
• Maintains electrical continuity across assembled joints
