Features

• Sealing Sleeves on Both Ends
• Molded External Ribs on 1/2 Inch Through 4 Inch for Ease of Installation
• 12 Trade Sizes from 1/2 Inch Through 6 Inch
• Electrical Continuity is Maintained across Assembled Joints
• PVC Sleeves Overlap Conduit, Preventing Corrosive Liquids and Vapors from Attacking Threaded Joints
• Over Galvanized Thread Finish Interior

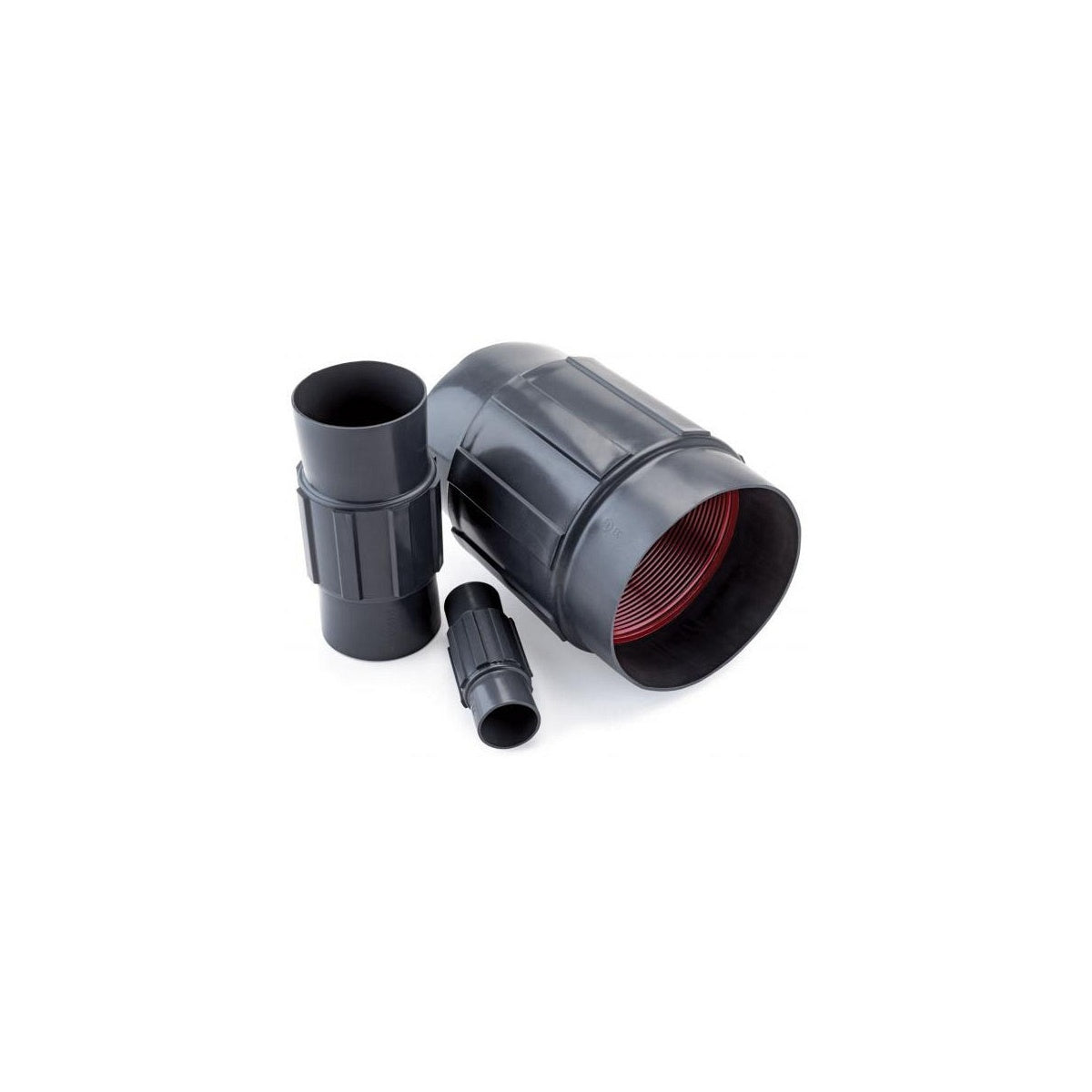

• PVC Coated Rigid Metal Conduit Couplings with Red Urethane Interior Coating Connects Coated Conduit Sections
• Electrical Continuity is Maintained Across Assembled Joints
• PVC Sleeves on Couplings Seal Off on Conduit PVC Coating When Assembled to Prevent Corrosive Liquids and Vapors from Attacking Threaded Joints
• Couplings are Straight Tapped

Additional Information

• Type Straight Tapped
• Threads Per Inch 14
• Length 0.7815 Inch (Thread to Vanish), 0.5337 Inch (Effective)
• Pitch Diameter 1.7584 Inch
• Outer Diameter 1.344 Inch
• Thread Size 14 TPI

Specifications

• Trade Size: 1/2 Inch
• End Type: Threaded Female
• Material: Steel
• Finish: 2 Mil Red Urethane Coated Over Galvanized (Interior), 40 Mil Gray PVC Coated (Exterior)
• Standard Package: 50
• Approval: UL (Canada and US), UL 6, CAN/CSA C22.2
• Applicable Standard: ISO 9001
• Series/Model: PRCPLG
• Weight: 19.000 lbs
