Features

• Sealing Sleeves on Both Ends
• Molded External Ribs on 1/2 Inch Through 4 Inch for Ease of Installation
• 12 Trade Sizes from 1/2 Inch Through 6 Inch
• Electrical Continuity is Maintained across Assembled Joints
• PVC Sleeves Overlap Conduit, Preventing Corrosive Liquids and Vapors from Attacking Threaded Joints
• Over Galvanized Thread Finish Interior

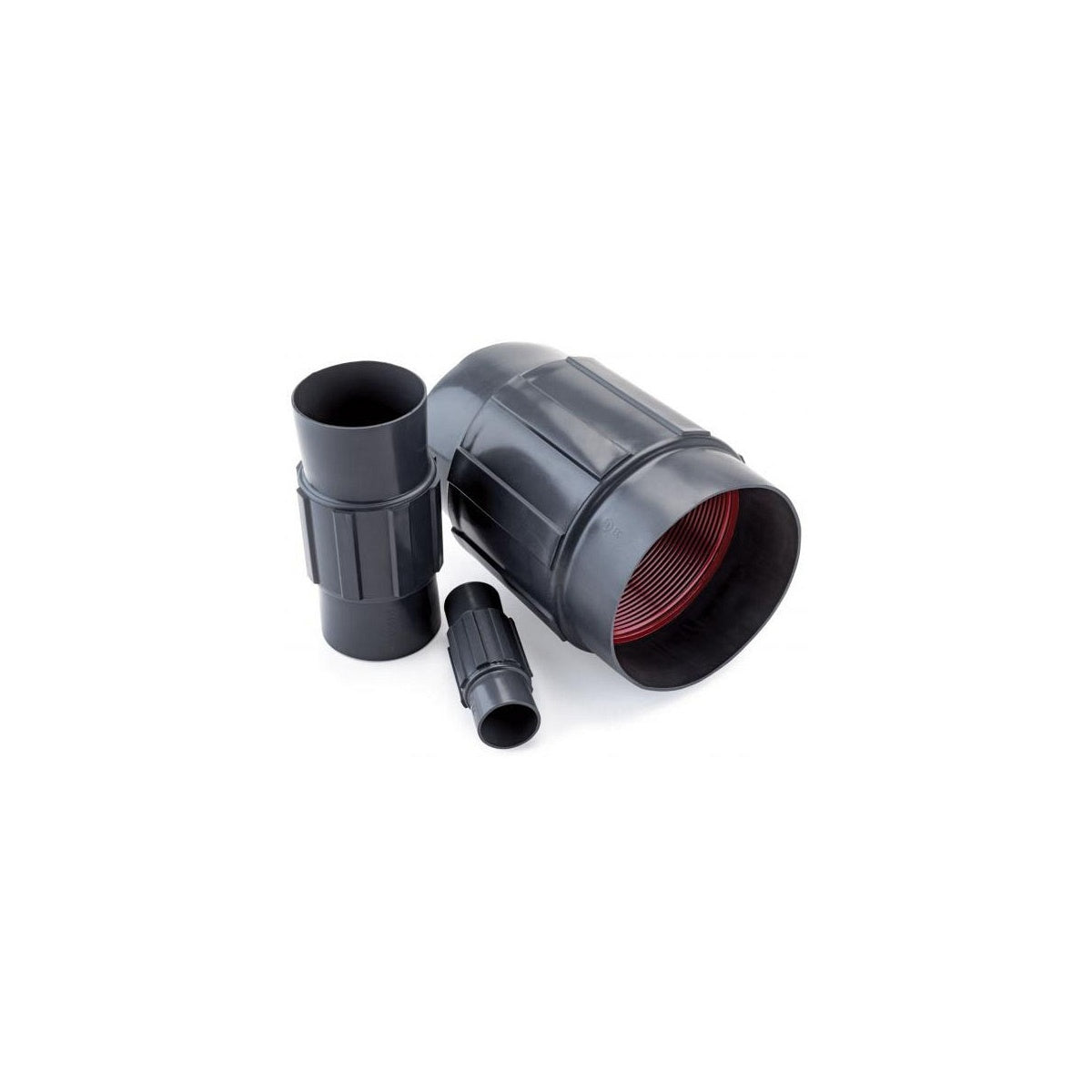

• PVC Coated Rigid Metal Conduit Couplings with Red Urethane Interior Coating Connects Coated Conduit Sections
• Electrical Continuity is Maintained Across Assembled Joints
• PVC Sleeves on Couplings Seal Off on Conduit PVC Coating When Assembled to Prevent Corrosive Liquids and Vapors from Attacking Threaded Joints
• Couplings are Straight Tapped

Additional Information

• Type Straight Tapped
• Threads Per Inch 11-1/2

Specifications

• Trade Size: 1-1/4 Inch
• End Type: Threaded
• Material: Steel
• Finish: 2 Mil Red Urethane (Interior)/40 Mil Gray PVC Coated (Exterior)
• Standard Package: 50 per Pack
• Approval: UL (Canada and US), UL 6, CSA C22.2
• Applicable Standard: ISO 9001
• Series/Model: PRCPLG
• Weight: 50.000 100
