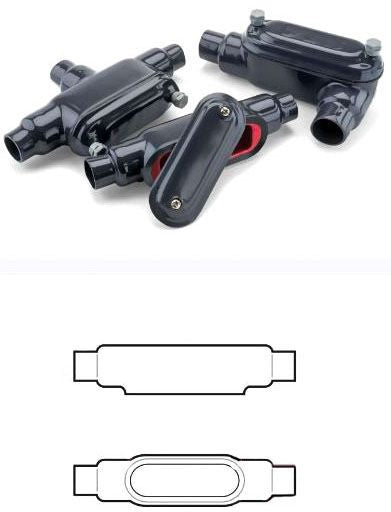

ROBROY PRC27 3/4 FORM 7 C FITTING – Conduit Body for Electrical Distributor Applications

The ROBROY PRC27 3/4 Form 7 C fitting is a steel conduit body designed for electrical and data wire raceways in harsh environments. This fitting is suitable for making 90° bends, pull outlets, taps, splices, and mounting outlets for wiring devices or lighting fixtures. As a component in lighting solutions and wire and cable management systems, it maintains electrical continuity across assembled joints, making it an essential part of switchgear supplier inventories and electrical distributor offerings.

Specifications

• Manufacturer: Robroy Industries
• Manufacturer Part #: PRC27
• Pipe Size: 3/4"
• Material: Steel
• Length: 7.5 in
• Weight: 1.4 lbs
• Color: Red; Grey
• Application: Electrical and Data wire raceways in harsh environments
• UPC: 784011203468

Features

• 40 mil gray PVC exterior coating for corrosion resistance
• 2 mil red urethane interior coating for additional protection
• Sealing sleeves on all female conduit openings to ensure secure connections
• Form 7 style cover uses retained stainless steel screw and wedge clip design
• Maintains electrical continuity across conduit joints
• UL 514A, 514B, 514D and CSA C22.2 No. 18, No. 42 certified
• NEMA 3R Raintight when installed with cover and gasket
