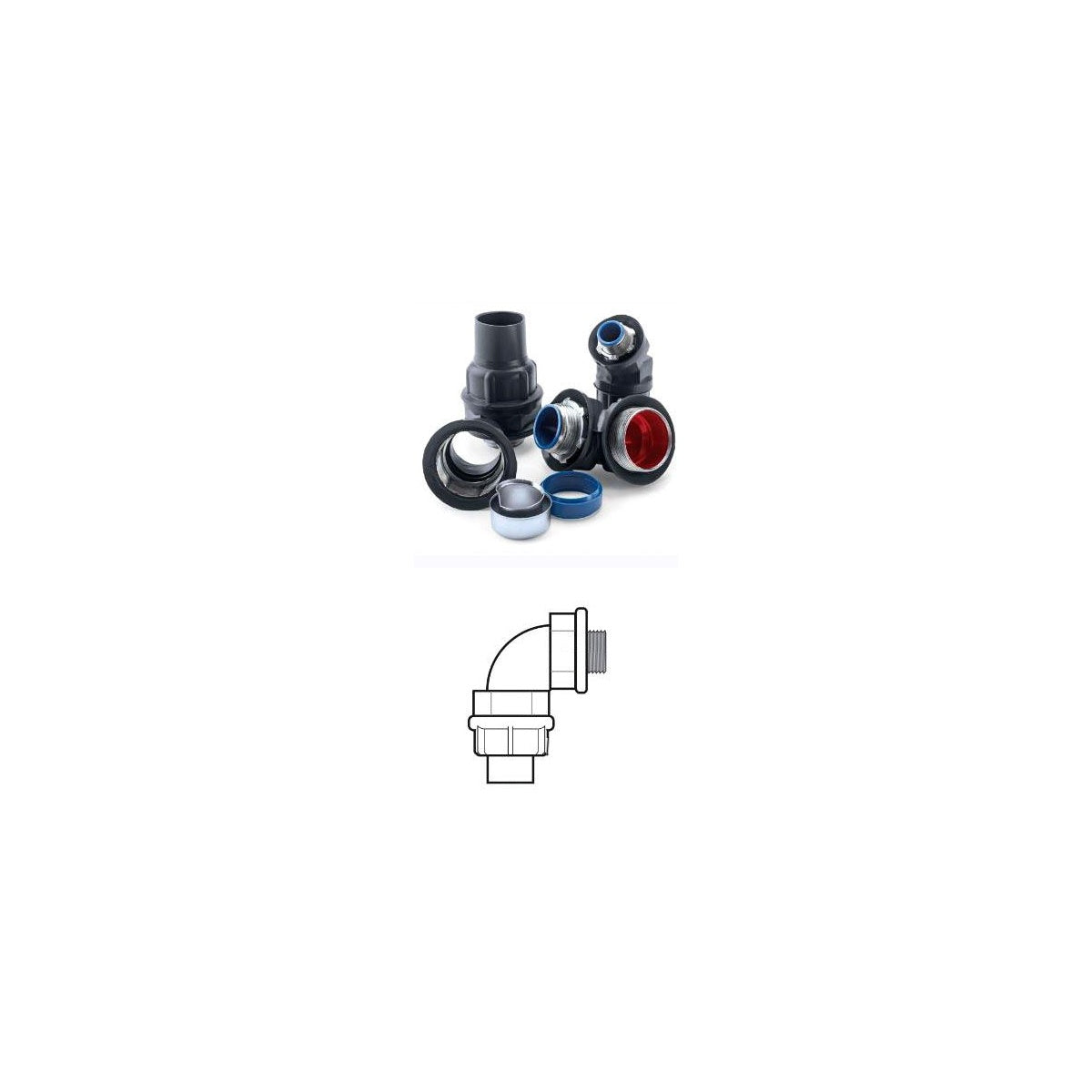

ROBROY PR5358GR 2-1/2 90° Liquid Tight Connector with Ground

The ROBROY PR5358GR is a 2-1/2 inch 90° liquid tight connector designed for electrical and data wire raceways in harsh environments. Manufactured by Robroy Industries, this connector is used to securely connect and terminate liquid tight flexible metallic conduit (LFMC) to boxes or enclosures, providing protection against mechanical damage, vibration, and exposure to water, oils, coolants, and other contaminants. It is suitable for industrial applications including process controls, motors, pumps, and processing equipment. The product is ideal for electrical distributors and switchgear suppliers seeking durable and corrosion-resistant wiring solutions.

Specifications

• Material: Ferrous Metal
• Color: Red; Grey
• Product Weight: 3.8 lbs
• Pipe Size: 2-1/2 inch
• Configuration: 90° Connector with Ground
• Dimensions (inches): A = 4.52, B = 8.88, C = 1.00
• Standards: UL 514B (E200413), UL 467 (E217890)

Features

• 40 mil gray PVC exterior coating for corrosion resistance
• 2 mil red urethane interior coating for added protection
• Sealing sleeves on all female conduit openings to ensure tight seal
• Available in straight, 45°, or 90° body configurations
• Includes external grounding lug for grounding continuity
• Designed for use with liquid tight flexible metallic conduit (LFMC)
