ROBROY KNRA-3/4 3/4 RIGHT ANGLE CLAMP
SKU: #168095
Part: #KNRA-3/4
UPC: 784011155057
ROBROY KNRA-3/4 3/4 RIGHT ANGLE CLAMP
SKU: #168095
Part: #KNRA-3/4
UPC: 784011155057
Description

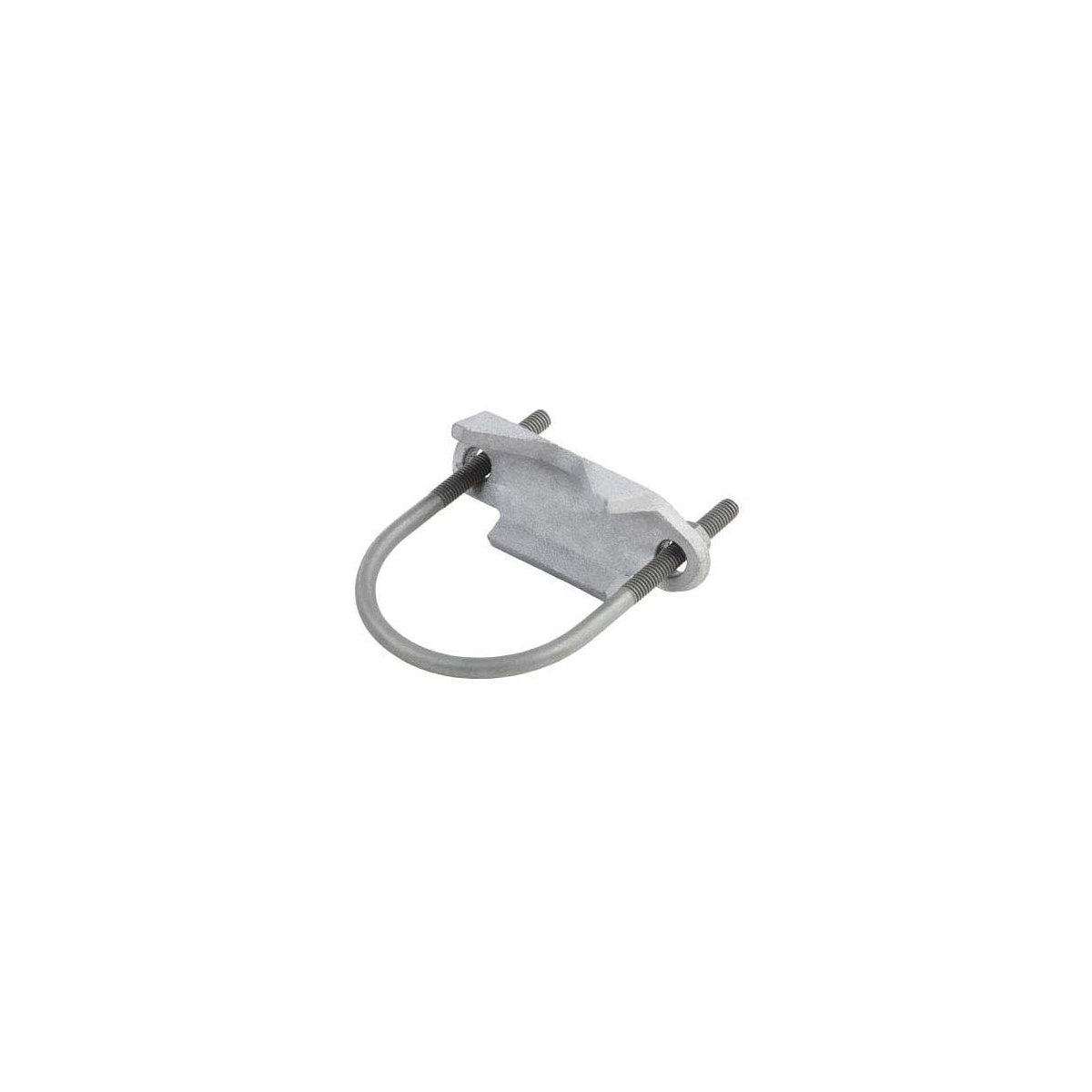

ROBROY KNRA-3/4 3/4 Right Angle Clamp for Electrical Wire Raceways
The ROBROY KNRA-3/4 Right Angle Clamp is designed for securing rigid conduit, intermediate metal conduit (IMC), or electrical metallic tubing (EMT) perpendicular to beam, channel, and angle supports. This clamp is suitable for electrical distributors and switchgear suppliers requiring reliable fastening solutions in wire and cable management systems and lighting solutions.
Specifications
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNRA-3/4
- Application: Electrical and Data wire raceways
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 43.0 lbs
- Trade Size: 3/4"
- Dimensions (inches):
- A: 1-1/8"
- B: 1-3/8"
- C: 2-13/16"
- D: 1-13/16"
- E: 2-1/4"
- Load Rating: 50 lbs
- Pieces per Box: 120
- Weight per Carton: 38.6 lbs
Features
- Designed to secure GRC, IMC, or EMT perpendicular to beam, channel, and angle supports
- Two hex nuts for secure fastening
- RoHS compliant
- Hot-dip galvanized finish on clamp for corrosion resistance
- Mechanically galvanized U-bolt for durability
