ROBROY KNRA-3 3 RIGHT ANGLE CLAMP
SKU: #168089
Part: #KNRA-3
UPC: 784011155170
ROBROY KNRA-3 3 RIGHT ANGLE CLAMP
SKU: #168089
Part: #KNRA-3
UPC: 784011155170
Description

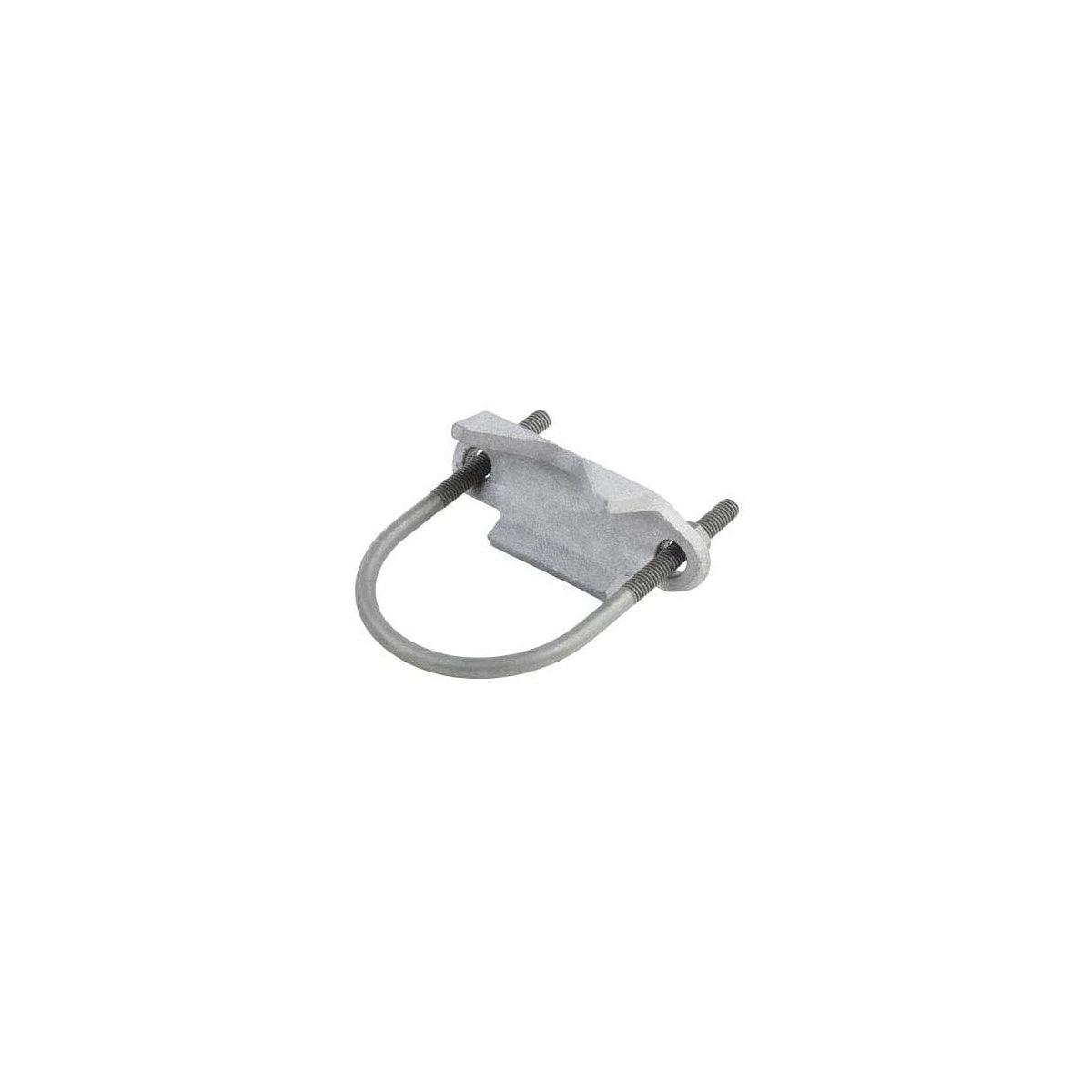

ROBROY KNRA-3 3" Right Angle Clamp for Electrical Wire Raceways
The ROBROY KNRA-3 right angle clamp is designed for securing rigid conduit, IMC, or EMT perpendicular to beam, channel, and angle supports. It is suitable for electrical distributors and lighting solutions requiring reliable fastening of wire and cable raceways. This clamp is made of galvanized malleable iron with a silver finish, ensuring durability and corrosion resistance in electrical installations.
Specifications
- Application: Electrical and Data wire raceways
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 110 lbs
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNRA-3
- Trade Size: 3"
- Dimensions (inches): A - 3-5/8", B - 3-7/8", C - 5-3/8", D - 2-5/8", E - 5-1/8"
- Load Rating: 10 lbs
Features
- Designed to secure GRC, IMC, or EMT perpendicular to beam, channel, and angle supports
- Two hex nuts for secure fastening
- RoHS compliant
- Hot-dip galvanized right angle clamp for corrosion resistance
- Mechanically galvanized U-bolt for durability
- Complies with ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70 National Electric Code, and Canadian Electric Code (CEC), Part 1
