ROBROY KNRA-3-1/2 3 1/2 RIGHT ANGLE CLAMP
SKU: #168094
Part: #KNRA-3-1/2
UPC: 784011155194
ROBROY KNRA-3-1/2 3 1/2 RIGHT ANGLE CLAMP
SKU: #168094
Part: #KNRA-3-1/2
UPC: 784011155194
Description
ROBROY KNRA-3-1/2 3 1/2 RIGHT ANGLE CLAMP for Electrical Wire Raceways

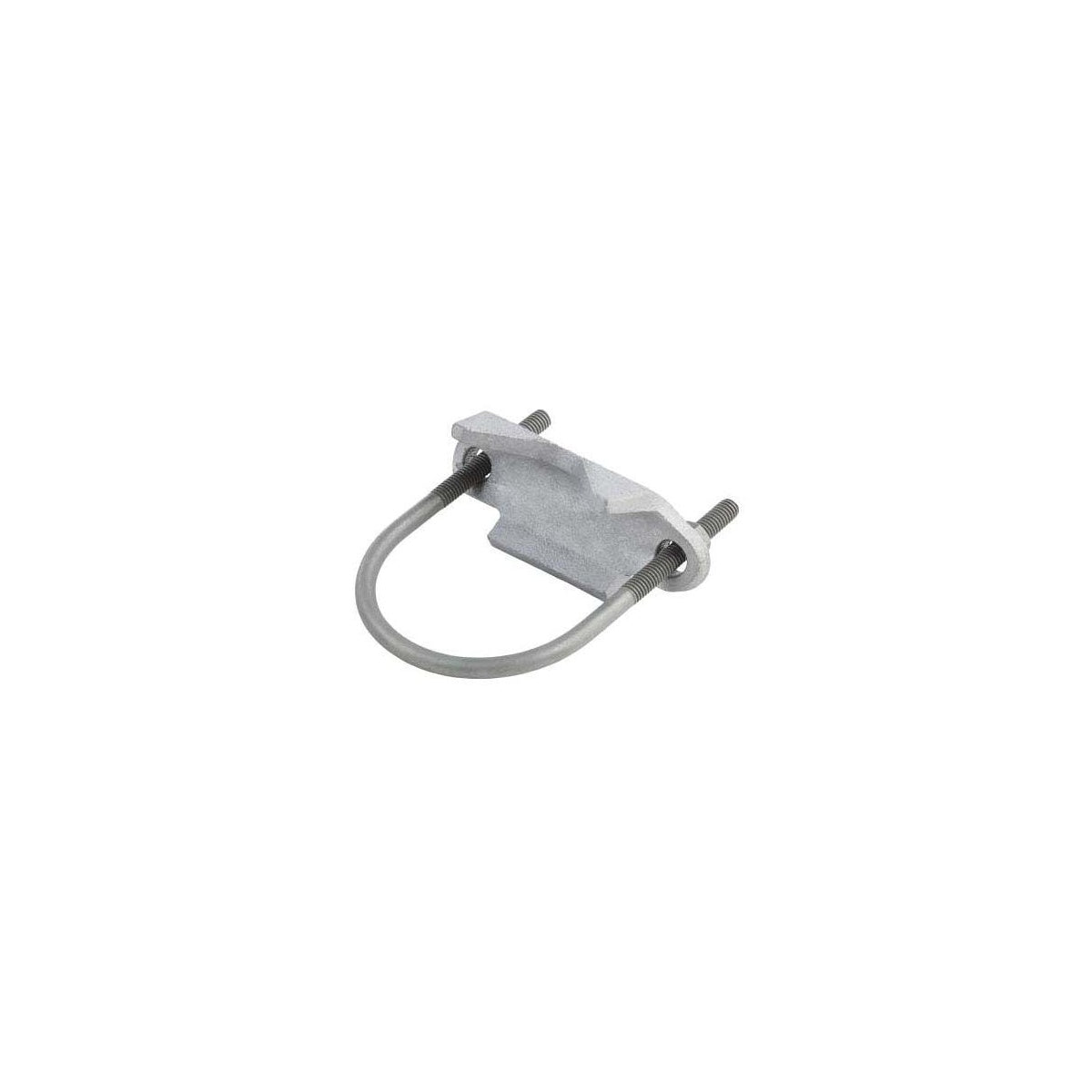

The ROBROY KNRA-3-1/2 Right Angle Clamp is designed for securing rigid conduit, intermediate metal conduit (IMC), or electrical metallic tubing (EMT) perpendicular to beam, channel, and angle supports. This product is suitable for electrical distributors and switchgear suppliers requiring reliable clamp solutions for wire and cable installations in industrial and commercial lighting solutions.
Specifications
- Application: Electrical and Data wire raceways
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 128 lbs
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNRA-3-1/2
- Trade Size: 3 1/2"
- Dimensions (inches): A - 4-1/16, B - 4-9/16, C - 5-7/8, D - 2-5/8, E - 5-5/8
- Load Rating: 10 lbs
- Units Per Box: 30
- Weight Per Carton: 136 lbs
Features
- Designed to secure GRC, IMC, or EMT perpendicular to beam, channel, and angle supports
- Two hex nuts for secure fastening
- RoHS compliant
- Constructed with hot-dip galvanized right angle clamp and mechanically galvanized U-bolt for corrosion resistance
- Steel U-bolts and nuts with malleable iron clamp body
- Complies with ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70 National Electric Code, and Canadian Electric Code (CEC), Part 1
