ROBROY KNRA-1-1/4 1 1/4 RIGHT ANGLE CLAMP
SKU: #168066
Part: #KNRA-1-1/4
UPC: 784011155095
ROBROY KNRA-1-1/4 1 1/4 RIGHT ANGLE CLAMP
SKU: #168066
Part: #KNRA-1-1/4
UPC: 784011155095
Description

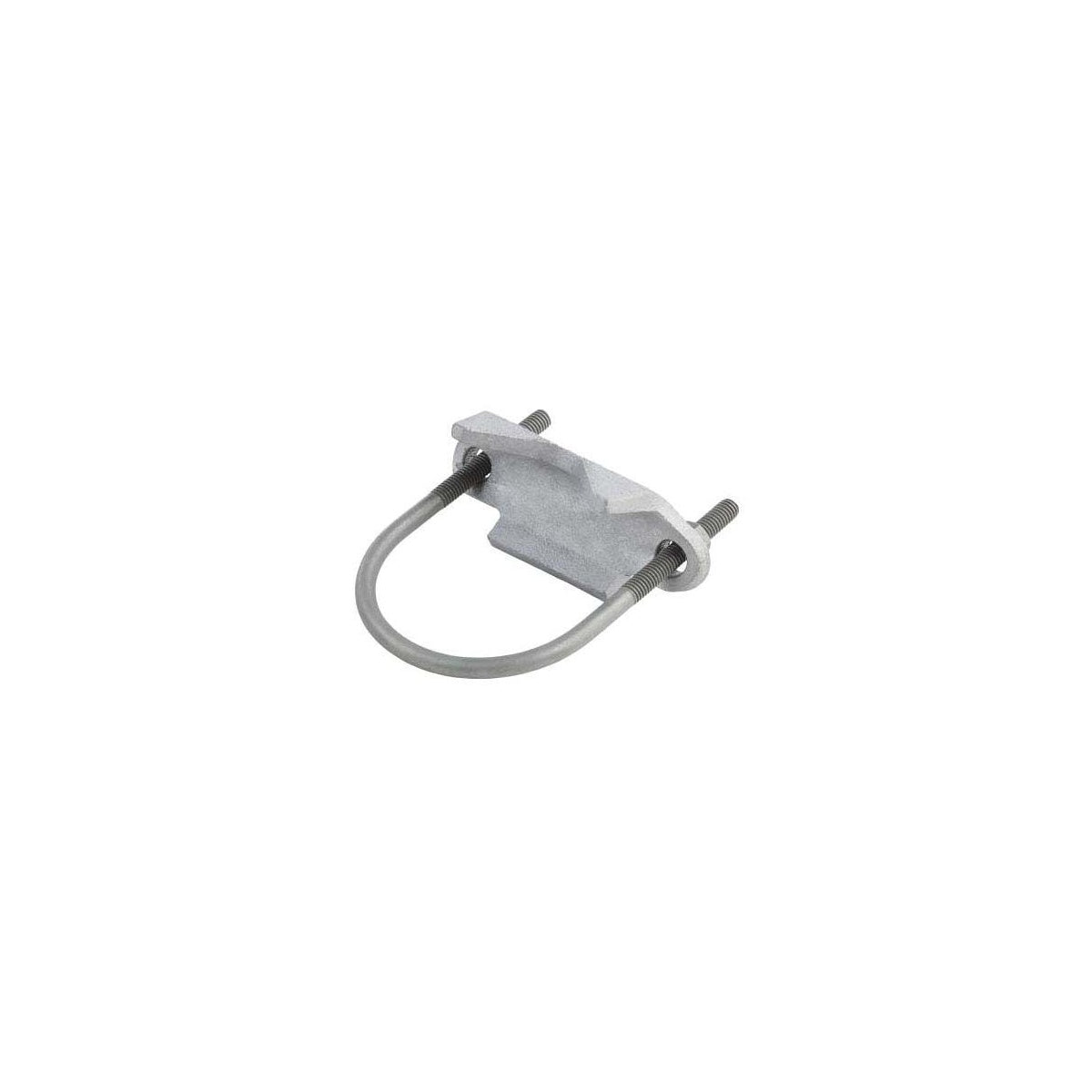

ROBROY KNRA-1-1/4 1 1/4 RIGHT ANGLE CLAMP - Electrical Conduit Clamp
The ROBROY KNRA-1-1/4 Right Angle Clamp is designed for securing rigid conduit, IMC, or EMT perpendicular to beam, channel, and angle supports. Suitable for electrical distributors and lighting solutions requiring reliable wire and cable management, this clamp provides a sturdy and compliant method for raceway installations in commercial and industrial electrical systems.
Specifications
- Application: Electrical and Data wire raceways
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 53.0 lbs
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNRA-1-1/4
- Trade Size: 1-1/4"
- Dimensions (inches): A: 1-3/4, B: 2, C: 3-3/16, D: 1-13/16, E: 2-7/8
- Load Rating: 25 lbs
- Units Per Box: 90
- Weight Per Carton: 48.5 lbs
Features
- Designed to secure GRC, IMC, or EMT perpendicular to beam, channel, and angle supports
- Two hex nuts for secure fastening
- RoHS compliant
- Hot-dip galvanized right angle clamp for corrosion resistance
- Mechanically galvanized U-bolt
- Constructed with steel U-bolts and malleable iron for strength and durability
- Certified to ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70, and Canadian Electric Code (CEC), Part 1
