ROBROY KNPAR-2-1/2 2 1/2 PARALLEL CLAMP
SKU: #168050
Part: #KNPAR-2-1/2
UPC: 784011154227
ROBROY KNPAR-2-1/2 2 1/2 PARALLEL CLAMP
SKU: #168050
Part: #KNPAR-2-1/2
UPC: 784011154227
Next day delivery
Description

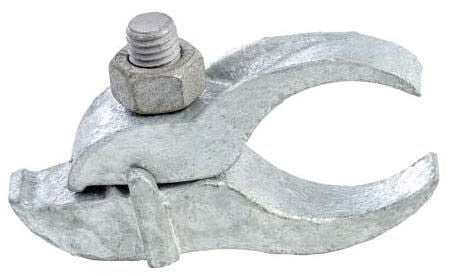

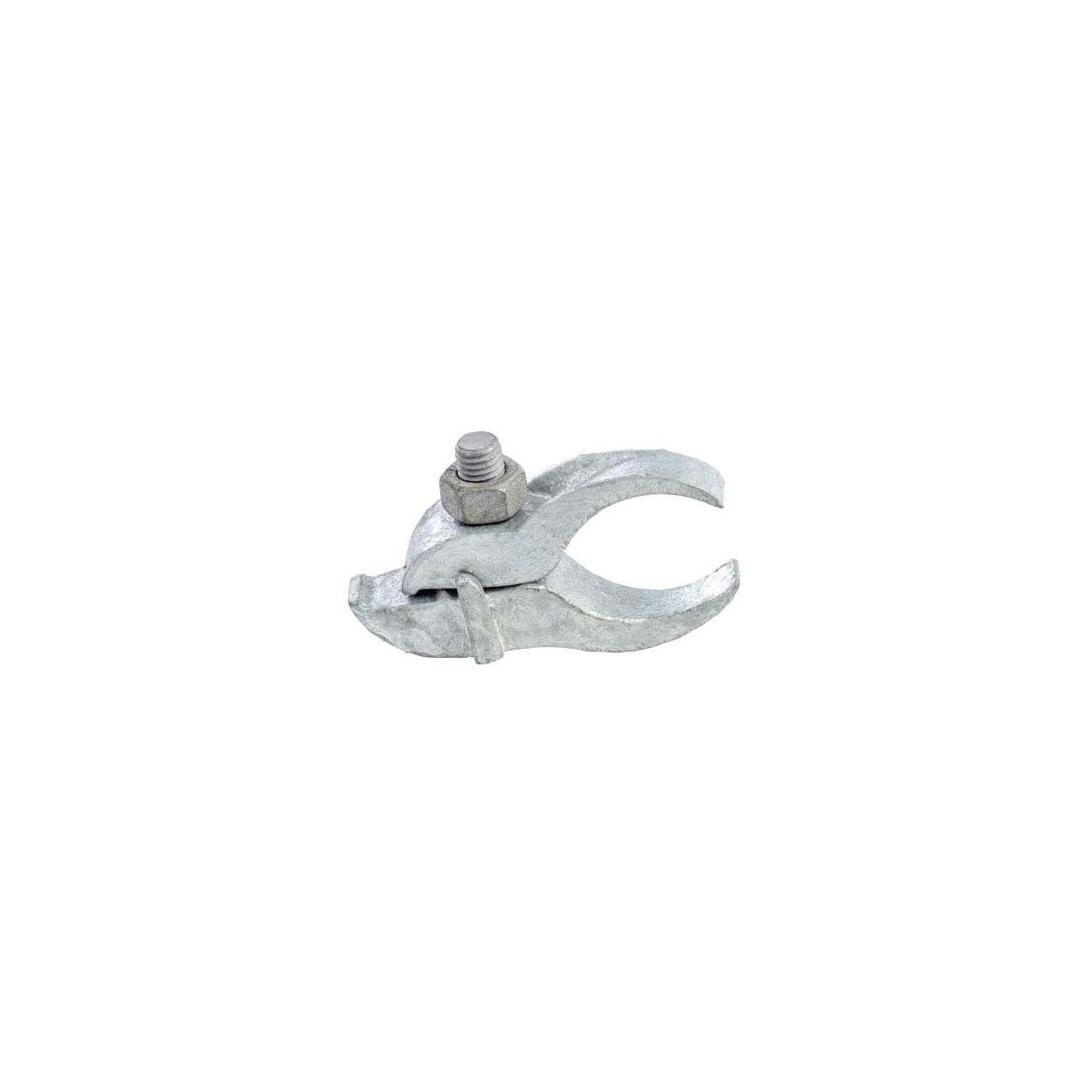

ROBROY KNPAR-2-1/2 2 1/2 Parallel Clamp for Electrical Wire Raceways
The ROBROY KNPAR-2-1/2 Parallel Clamp is designed for securing rigid conduit systems including GRC, IMC, and EMT across or parallel to beams, channels, and angle supports. It is suitable for electrical distributors and lighting solutions requiring durable and reliable wire raceway support. This clamp is manufactured from galvanized malleable iron, providing corrosion resistance and mechanical strength for demanding electrical installation environments.
Specifications
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNPAR-2-1/2
- Material: Galvanized Malleable Iron
- Color: Silver
- Application: Electrical and Data wire raceways
- Weight: 135.0 grams
- Trade Size: 2-1/2"
- Dimensions (A x B): 5-1/4" x 3-1/4" (from product catalog)
- Load Rating: 125 lbs (from product catalog)
- Standards: ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70 National Electric Code, Canadian Electric Code (CEC), Part 1
Features
- Designed to secure rigid conduit, IMC, or EMT conduit parallel or across structural supports
- Easily installed clamp with bolt and nut fastening
- Capable of withstanding heavy loads up to 125 lbs
- RoHS compliant
- Hot-dip galvanized malleable iron clamp for corrosion resistance
- Steel bolts mechanically galvanized for durability
