ROBROY KNPAR-1/2 1/2 PARALLEL CLAMP
SKU: #168041
Part: #KNPAR-1/2
UPC: 784011154043
ROBROY KNPAR-1/2 1/2 PARALLEL CLAMP
SKU: #168041
Part: #KNPAR-1/2
UPC: 784011154043
Next day delivery
Description

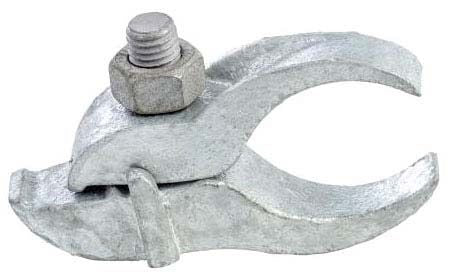

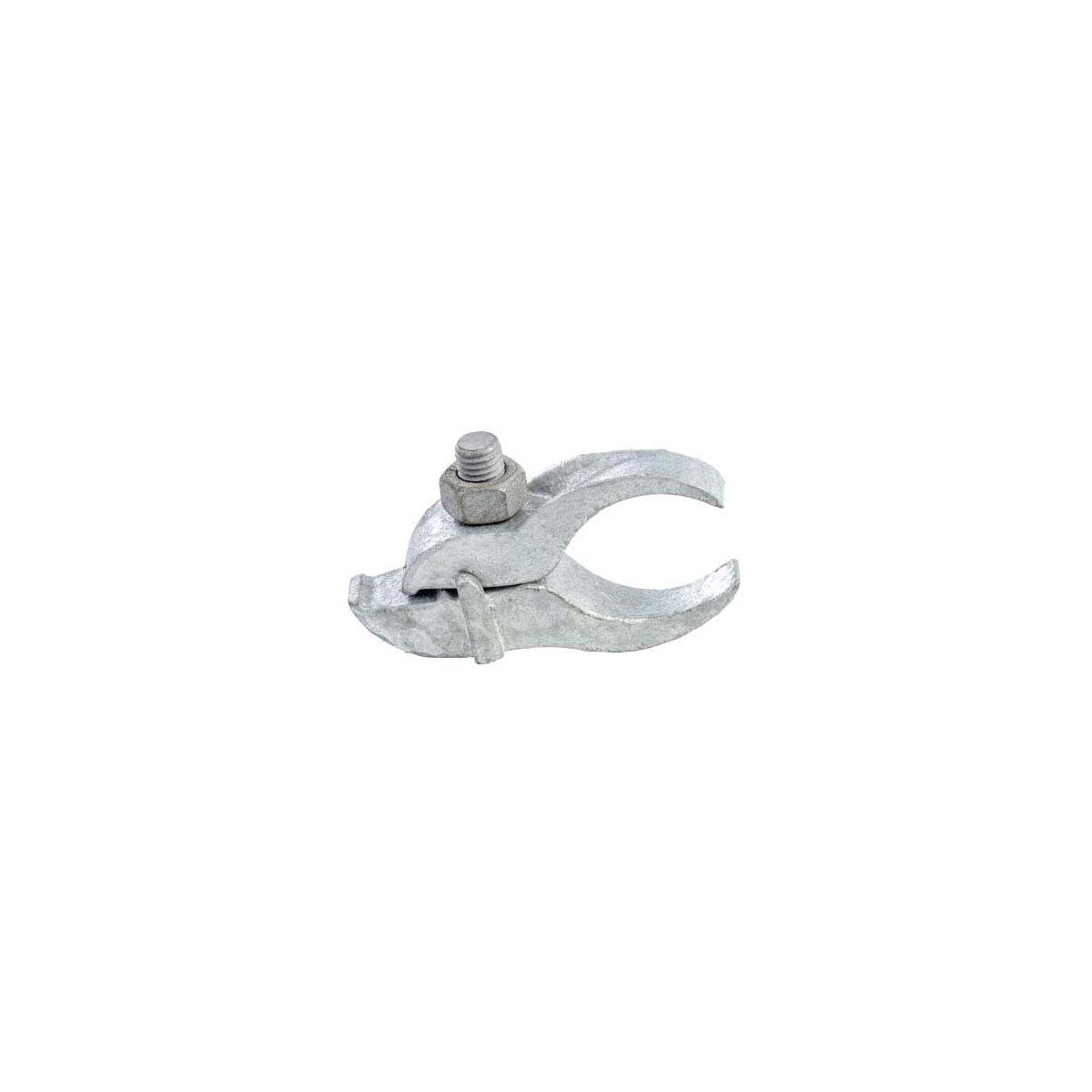

ROBROY KNPAR-1/2 1/2 Parallel Clamp for Electrical Raceway Systems
The ROBROY KNPAR-1/2 1/2 Parallel Clamp is designed for securing rigid conduit systems such as GRC, IMC, or EMT across or parallel to beam, channel, and angle supports. This clamp is suitable for electrical distributors and lighting solutions requiring durable and reliable wire and cable raceway supports. It is an essential component for switchgear suppliers and electrical contractors managing conduit installations in commercial and industrial environments.
Specifications
- Application: Electrical and Data wire raceways
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 58 lbs
- Manufacturer: Robroy Industries
- Manufacturer Part #: KNPAR-1/2
- Load Rating: 30 lbs (per catalog data for 1/2" size)
- Dimensions: A = 2-7/8", B = 1-7/16" (from catalog specs for 1/2" trade size)
- UPC: 784011154043
Features
- Designed to secure GRC, IMC, or EMT conduit across or parallel to structural supports
- Easily installed for efficient assembly in electrical raceway systems
- Capable of withstanding heavy loads, ensuring reliable conduit support
- RoHS compliant for environmental safety standards
- Hot-dip galvanized malleable iron clamp with mechanically galvanized steel bolts
