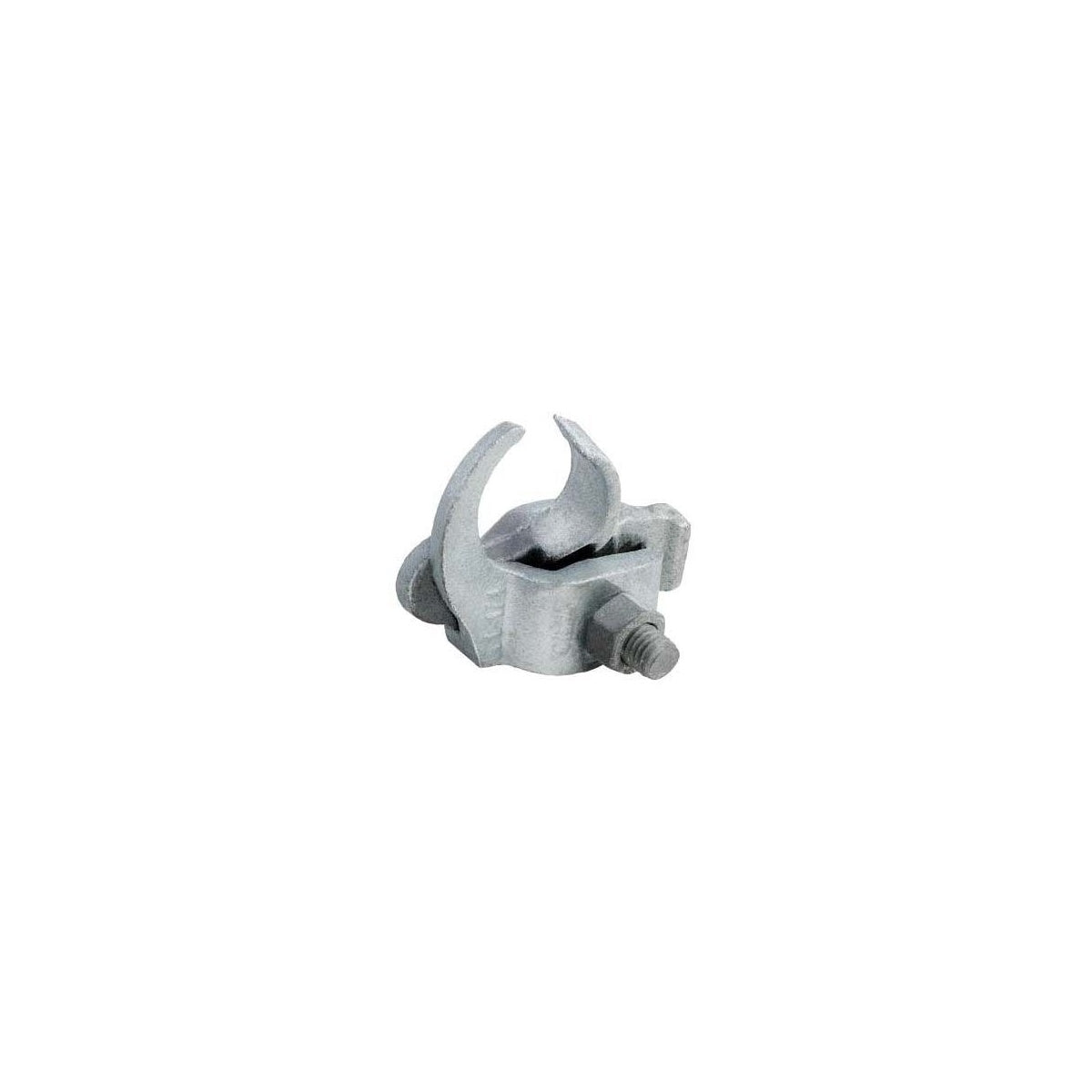

ROBROY KNET-2-1/2 2 1/2 EDGE CLAMP
SKU: #168026
Part: #KNET-2-1/2
UPC: 784011151141
ROBROY KNET-2-1/2 2 1/2 EDGE CLAMP
SKU: #168026
Part: #KNET-2-1/2
UPC: 784011151141
Description
ROBROY KNET-2-1/2 2 1/2 EDGE CLAMP - Electrical Conduit Clamp
The ROBROY KNET-2-1/2 Edge Clamp is designed for securing rigid conduit, IMC, or EMT across or perpendicular to beam, channel, and angle supports. This product is suitable for electrical distributors and lighting solutions requiring reliable wire and cable raceway management. Manufactured from galvanized malleable iron, it offers durable performance for electrical and data wire raceways in various industrial and commercial applications.
Specifications
- Manufacturer Part #: KNET-2-1/2
- Material: Galvanized Malleable Iron
- Color: Silver
- Product Weight: 183.0000 grams
- Application: Electrical and Data wire raceways
- UPC: 784011151141
- Trade Size: 2 1/2"
- Dimensions: A = 5-1/8", B = 4-5/8" (from manufacturer datasheet)
- Compliance: RoHS compliant
- Standards: ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70 National Electric Code, Canadian Electric Code (CEC), Part 1
Features
- Easily installed clamp for rigid conduit, IMC, and EMT
- Capable of withstanding heavy loads
- Hot-dip galvanized malleable iron clamp with mechanically galvanized steel bolts
- Designed to secure conduit across or perpendicular to structural supports
- Suitable for use by switchgear suppliers and electrical distributors managing wire and cable raceways
