RISER CLP PIPE SIZE 5IN STL
SKU: #62171
Part: #C720 5
UPC: 616013147153
RISER CLP PIPE SIZE 5IN STL
SKU: #62171
Part: #C720 5
UPC: 616013147153
Next day delivery
Description

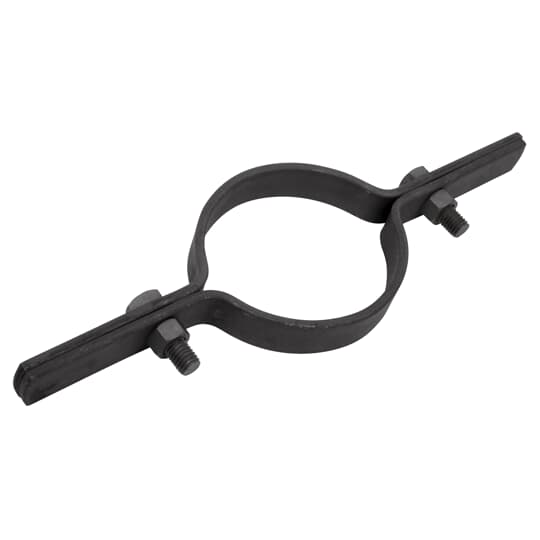

RISER CLP PIPE SIZE 5IN STL – Pipe Clamp for Vertical Pipe Support
This Superstrut riser clamp, model C720 5, is designed for the support and steadying of vertical pipe risers. Manufactured from steel with a GoldGalv® finish, it firmly grips vertically mounted pipes or conduits, distributing the load evenly to the supporting structure. This product is suitable for electrical distributors and switchgear suppliers requiring reliable pipe support components in their wire and cable or lighting solutions installations.
Specifications
- Material: Steel
- Pipe Size: 5 Inch
- Width: 14 Inches
- Stock Size: 1/4 x 1-1/2 Inch
- Bolt Size: 1/2 Inch x 1-3/4 Inch
- Finish: GoldGalv® (Trivalent Gold Chromium electroplated zinc finish)
- Color: Gold
- Product Weight: 2.0 lbs
- Manufacturer Part #: C720 5
- Compliance: Federal Specification A-A-1192A Type 8, MSS-SP-69 (Type 8), BSPSS-BS3974
Features
- Designed specifically for supporting or steadying vertical pipe risers
- Firm grip on pipe to transmit load to structure through clamp ears
- GoldGalv® finish provides corrosion resistance with RoHS-compliant trivalent chromium coating
- Suitable for use under pipe couplings, hubs, or welded lugs for secure installation
- Firmly grips vertically mounted pipe or conduit and distributes load over a larger area
- Not designed to be supported with rods; torque installation guidelines must be followed
