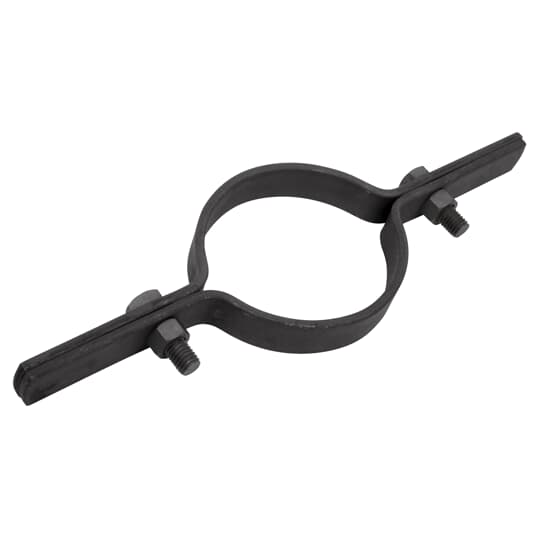

RISER CLP PIPE SIZE 3IN STL – Pipe Clamp for Vertical Pipe Support

The RISER CLP PIPE SIZE 3IN STL by Superstrut is a steel clamp specifically designed for the support and steadying of vertical pipe risers. This pipe clamp is commonly used in electrical distributor setups, lighting solutions, wire and cable installations, and as part of switchgear supplier systems where secure pipe support is critical. It firmly grips vertically mounted pipes or conduits and distributes the load evenly over a larger area, ensuring structural stability and safety in various industrial and commercial applications.

Specifications

• Material: Steel (Carbon Steel)
• Pipe Size: 3 Inch
• Width: 11-13/16 Inches
• Stock Size: 1/4 x 1 Inch
• Bolt Size: 3/8 Inch x 1-1/2 Inch
• Finish: GoldGalv® (Trivalent Gold Chromium Electroplated Zinc Finish)
• Color: Gold
• Number of Holes: 1
• Product Weight: 45.06 lbs
• Compliance: Federal Specification A-A-1192A Type 8, MSS-SP-69 (Type 8), BSPSS-BS3974
• Manufacturer: Superstrut
• Manufacturer Part #: C720 3
• Application: Designed for the support or steadying of vertical pipe risers

Features

• Firmly grips vertical pipes or conduits, distributing load over a larger area to prevent pipe damage
• GoldGalv® finish provides corrosion resistance via a multi-step electroplating process with trivalent chromium, ensuring durability and compliance with RoHS and OSHA standards
• Steel construction offers strength and reliability for pipe support in industrial environments
• Single-hole design for secure fastening and easy installation
• Suitable for use in electrical distributor systems, lighting solutions, wire and cable management, and switchgear installations
• Not designed for rod support; installation requires adherence to maximum suggested torque values for safety

Downloads and Links

• Technical Data Sheet: C720 3 (available as "Data Sheet, Technical C720 3")
