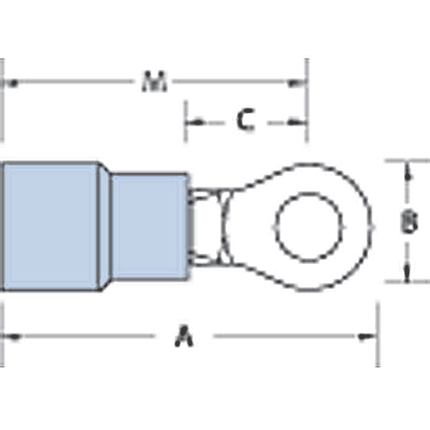

Ring Terminal Insulated Nylon for Wire and Cable Connections

This Ring Terminal by Thomas & Betts is designed for secure electrical connections in wire and cable applications. It features insulated nylon construction suitable for wire range 22-16 AWG and stud size #4, providing reliable performance for electrical distributors and lighting solutions. The terminal is electro tin-plated and made of copper for optimal conductivity and corrosion resistance, making it a dependable component for switchgear suppliers and wire and cable assemblies.

Specifications

• Material: Copper
• Insulation Type: Insulated Nylon
• Color: Red
• Finish: Electro Tin-Plated
• Flammability Class: Rated V-2 Per UL94
• Wire Range: 22-16 AWG
• Stud Size: #4
• Product Weight: 1.0000 (unit not specified)

Features

• Long barrel design with selective annealing for improved crimping and strain relief
• Deep internal serrations ensure low electrical resistance and strong wire retention
• Funnel entry barrel for easier wire insertion and reduced strand damage
• Brazed or overlapped seam provides up to 2.5 times the tensile strength of butted seams
• Anti-rotational tongue prevents terminal shorting and secures terminal in terminal blocks
• UL Listed E9809 compliant
• Terminals are deburred and degreased to ensure proper plating and insulation
• Clear wire and stud size identification printed on the terminal tongue
