Rigid Pull Elbow Connector 3/4", Zinc, For 90˚ Bends, With Cover – Pull Elbow Rigid Conduit 90° Bend

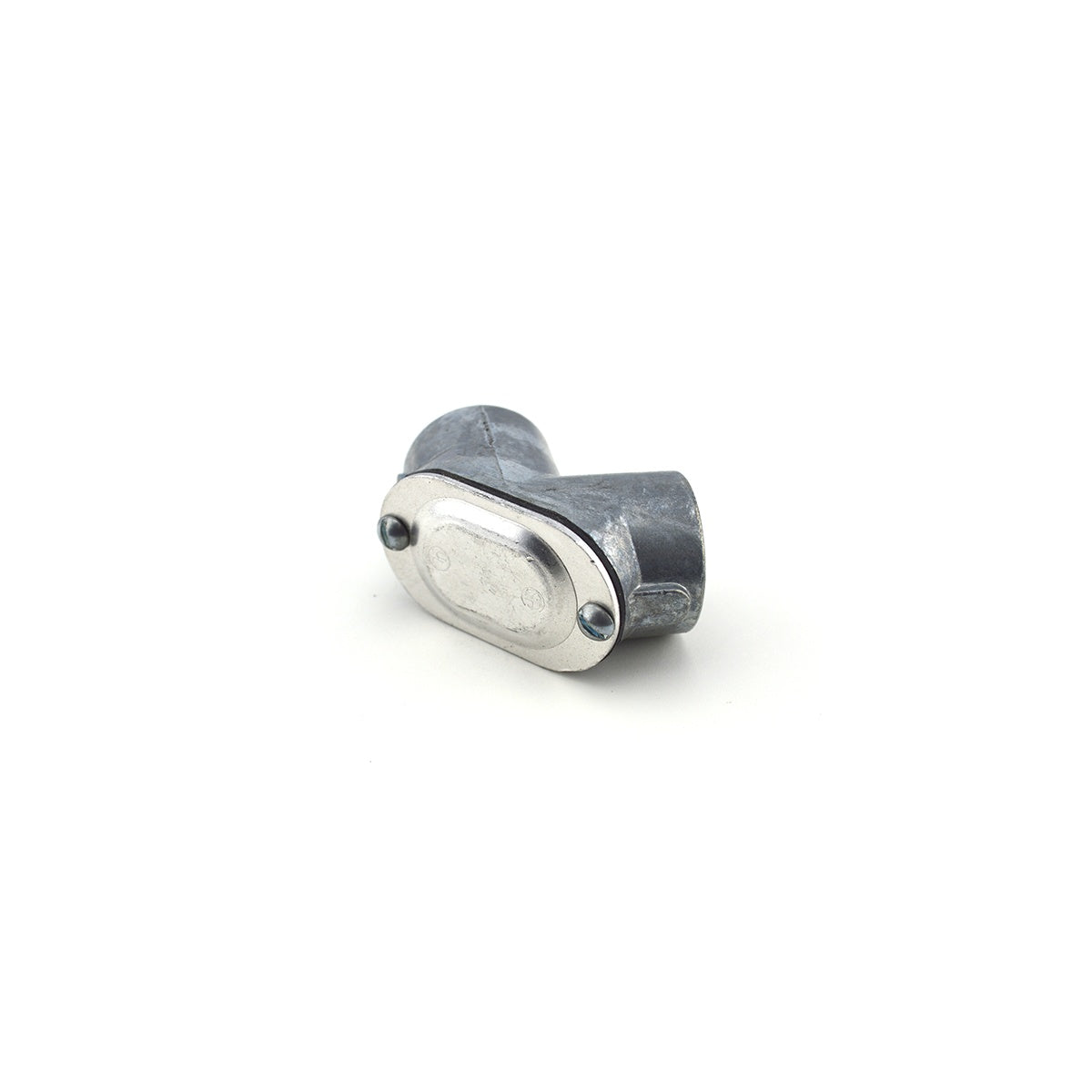

The Bridgeport 82-DC 3/4" Rigid Pull Elbow Connector is designed for making 90° bends in 3/4" threaded rigid conduit or IMC systems. It facilitates wire pulling through conduit bends by incorporating a removable aluminum cover and neoprene gasket, which seal out dirt, dust, and moisture. This product is suitable for electrical distributors and switchgear suppliers requiring reliable conduit fittings for wire and cable management in lighting solutions and electrical installations.

Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished
• Length: 1.5625 in
• Application: Used for connecting rigid or IMC to form 90¬∞ bend; removable cover and neoprene gasket facilitate wire pulling
• Flexibility: Threaded Rigid or IMC
• Product Weight: 0.2920 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 82-DC
• Standards: Meets NEMA FB-1 and UL 514B

Features

• Removable aluminum cover allows easy wire pulling and feeding through conduit bends
• Neoprene gasket provides environmental sealing against dirt, dust, and moisture
• Zinc-plated steel set screws secure the connection firmly
• Designed for use with 3/4" rigid conduit or IMC to form 90¬∞ bends

Downloads & Links

• Spec Sheet
