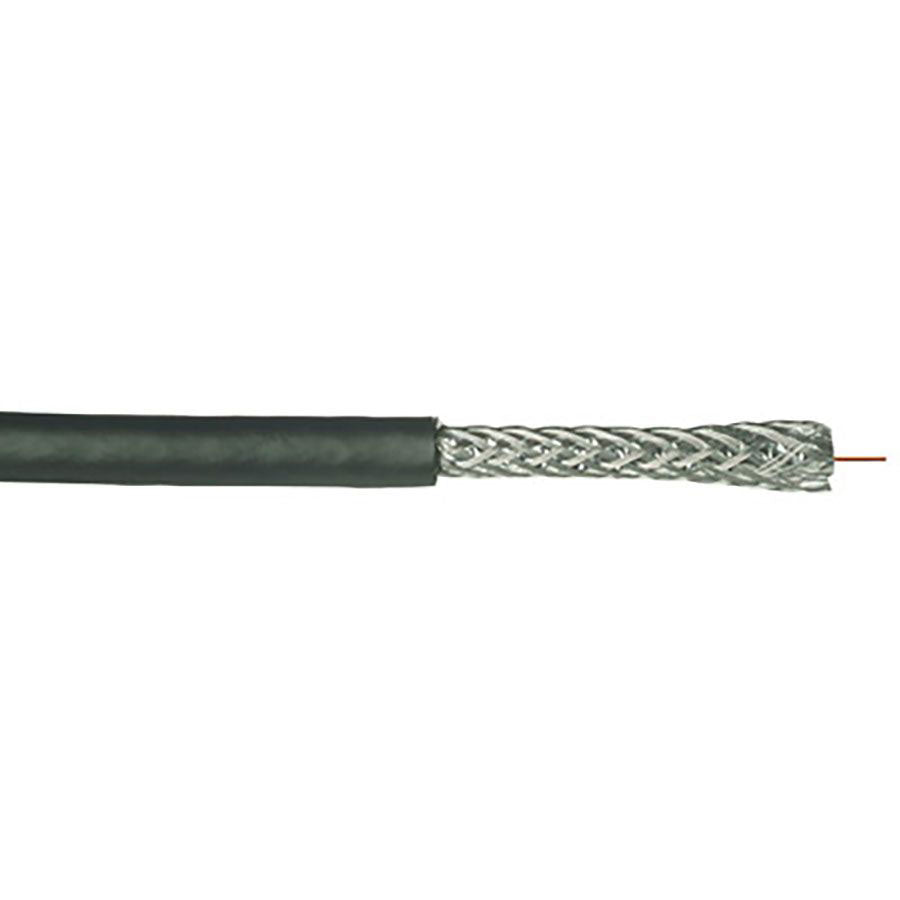

RG6/U-CCS-BK-ETL 18AWG Coaxial Cable for Electrical Distributor Applications

This RG6/U-CCS-BK-ETL coaxial cable is designed for signal transmission in CATV and other communication systems. It features an 18 AWG copper-clad steel conductor with bonded aluminum foil and a 60% aluminum braid shield, providing effective shielding and signal integrity. The cable jacket is made of flame-retardant PVC in black, meeting ETL CM installation standards suitable for use by electrical distributors and wire and cable suppliers.

Specifications

• Conductor Material: Copper-clad steel
• Conductor Size: 18 AWG √ó 1 conductor
• Insulation Material: Foamed polyethylene (Foamed-PE)
• Insulation Thickness: Average 1.80 mm
• Shielding: Bonded aluminum foil (22 microns) + 60% aluminum braid (64 strands of 0.12 mm magnesium aluminum wire)
• Jacket Material: Flame-retardant PVC (45P - PVC)
• Jacket Thickness: Average 0.75 mm
• Jacket Color: Black (FR-PVC)
• Characteristic Impedance: 90 ¬± 15 ohms
• Operating Temperature Range: -20¬∞C to +75¬∞C
• Rated Voltage: 300V
• Capacitance: Maximum 5000 pF/km
• Conductor Resistance: Maximum 108 ohm/km at 20¬∞C
• Bend Radius: Minimum 20 times cable diameter (105 mm)
• Compliance: ETL CM, EU RoHS 2011/65 compliant

Features

• High shielding effectiveness with bonded aluminum foil and 60% aluminum braid
• Durable flame-retardant PVC jacket suitable for indoor installations
• Consistent electrical performance with controlled impedance and low capacitance
• Suitable for CATV and general coaxial cable applications in electrical distribution and lighting solutions
• Complies with ETL CM safety standards and RoHS environmental regulations
