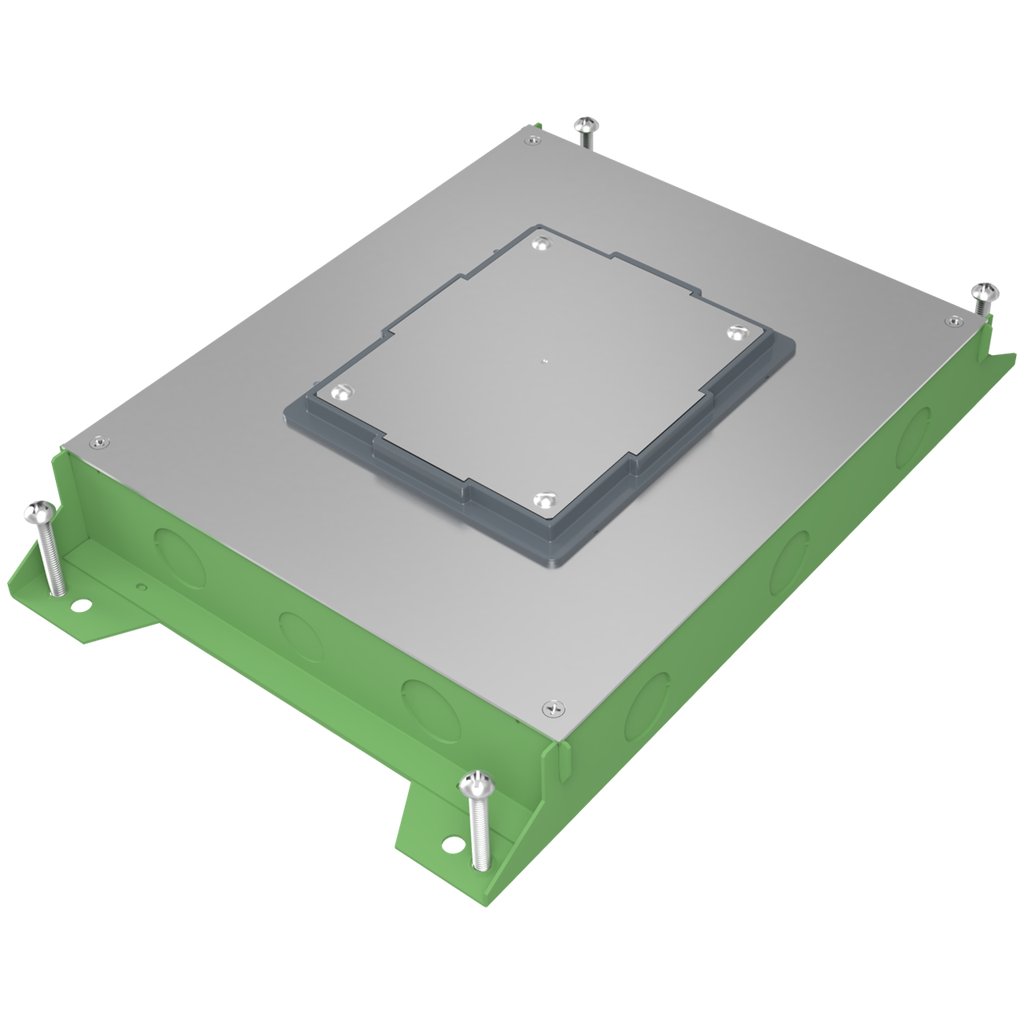

RFBA 4-Gang Shallow Floor Box - On Grade | Floor Box Solutions

The RFBA 4-Gang Shallow Floor Box by Wiremold is designed for efficient power and data service activations in open spaces or workstations. This floor box is ideal for electrical distributors and lighting solutions providers seeking versatile, recessed wire and cable management options. Suitable for installation in various floor types including tile, stone, carpet, terrazzo, wood, and polished concrete, it supports a wide range of commercial applications such as schools, financial institutions, offices, hospitality, and residential environments.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: RFBA4R25OG
• Number of Gangs: 4
• Width: 11.937 in
• Depth: 2.5 inches
• Material: Steel
• Country of Origin: Mexico
• Product Weight: 13.98 lbs
• UPC: 786564105381

Features

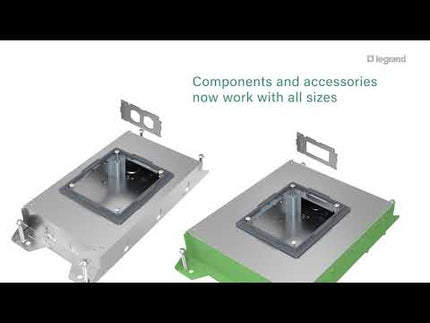

• Mix-and-match components and accessories compatible across all RFBA series sizes for streamlined project installations
• Improved wire and cable routing for easier wire pulling in adjacent compartments and around corners
• Accepts 1” conduit feed for 2- and 4-gang shallow boxes
• Available in multiple gang sizes: 2, 4, 6, and 10
• Two cover options: round and rectangular with sufficient egress capacity
• Two finishes available: standard zinc-plated or lightweight slab-on-grade with fusion-bonded epoxy corrosion-resistant paint
• Removable dividers fully adjustable before and after concrete pour
• Common mounting plates usable across the RFBA series reduce lifecycle costs
• FloorPort activation covers provide TopGuard protection from water, dirt, and debris
• Supports industry standard and proprietary data and A/V connectivity options
• Height adjustable using 4” extension ring for flush floor mounting
• UL Listed for use with tile, terrazzo, and carpet-covered concrete floors
