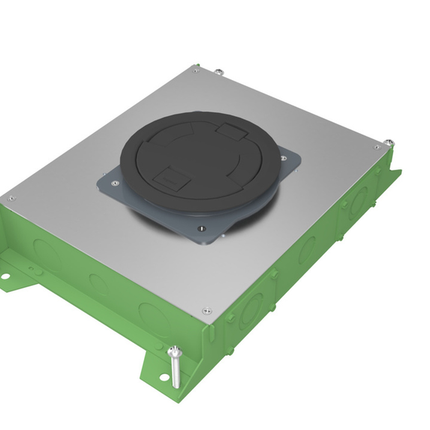

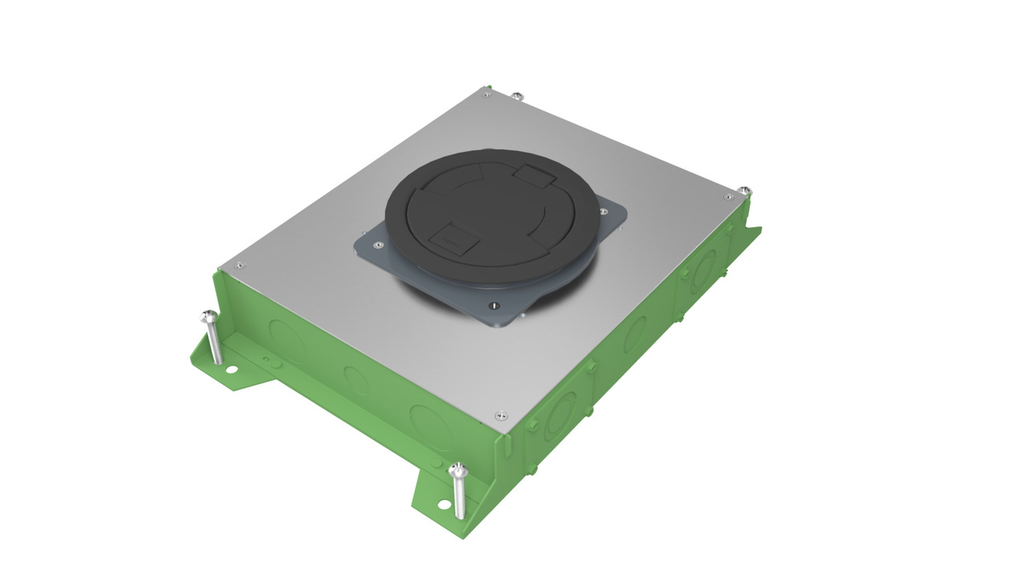

RFBA 4-Gang Round Cover Floor Box - On Grade | Floor Box Electrical Solutions

The RFBA 4-Gang Round Cover Floor Box - On Grade by Wiremold is a versatile recessed floor box designed to provide power, communication, and audio/video services in open spaces or directly at workstations. This steel floor box, featuring a corrosion-resistant finish, is suitable for installation in various floor types including tile, stone, carpet, terrazzo, wood, and polished concrete. It is ideal for a wide range of applications such as schools, financial institutions, commercial offices, hospitality, and residential buildings. The product supports improved wire and cable routing for easier wire pulling in adjacent compartments and around corners, making it a practical choice for electrical distributors and lighting solution providers.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: RFBA4C30OG
• Number of Gangs: 4
• Material: Steel
• Finish: Corrosion Resistant
• Dimensions (L x W x H): 17.75 in x 8.652 in x 3.75 in
• Weight: 13.3 lbs
• Country of Origin: Mexico
• Order Minimum: 1 unit
• UPC: 786564105442

Features

• Compatible with Evolution‚Ñ¢ Series 6" round die-cast aluminum covers available in multiple finishes including powder coated black, gray, bronze, and durable brushed aluminum, satin brass plated, and satin nickel plated.
• Designed for on-grade installation with fusion-bonded epoxy coating for durability on metal reinforcement bars before concrete encapsulation.
• Fully adjustable before and after concrete pour, allowing for precise installation.
• Available in shallow (3.25") and standard (3.75") depths; this model is the standard 3.75" depth.
• Improved internal compartments for enhanced wire and cable routing, facilitating easier wire pulling.
• Features numerous conduit knockouts on all sides and bottom for flexible installation options.

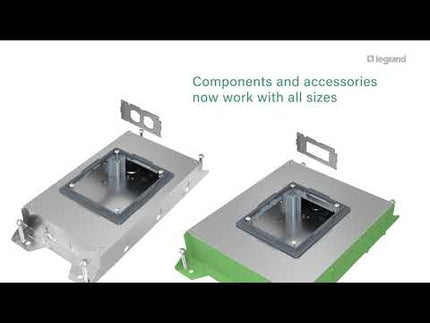

• Shares common mounting plates with other RFBA models, allowing interchangeable configurations of power and data within the same box.
• Post-pour adjustment and removable dividers enable customization before or after concrete pour.
• Suitable for installation in a variety of floor finishes including carpet, tile, wood, terrazzo, and polished concrete.

Downloads & Links

• RFBA2R30, RFBA2R30OG CAD Drawing"
• RFBAMAAP CAD Drawing
• RFBAB CAD Drawing
• RFBA Series Round Activation Floor Boxes Cutsheet
• RFBA6A CAD Drawing
• Spec Sheet
• RFBAS1 CAD Drawing
• RFB Series Floor Boxes
• Device Plate Installation RFBA Series Floorboxes-1025683
• RFBA Series Floor Box Brochure
• RFBA Floor Boxes - Guide Form Specifications-26 05 33.16
• RFBA Furniture Feed Barrier Kit Installation Instructions
• RFBA Series Floor Box BIM
• Wiremold 2, 4 & 6 Gang RFBA Series Floorboxes"
• RFBA4R30, RFBA2R30OG CAD Drawing"
• RFBA4 Resource Floor Boxes Installation Instructions
• RFBADEC CAD Drawing
• RFBAAP CAD Drawing
• RFBA2R25, RFBA2R25OG CAD Drawing - 3149"
• RFBAS2 CAD Drawing
• RFBADP CAD Drawing
• RFBA4R25, RFBA2R25OG CAD Drawing - 3151"
