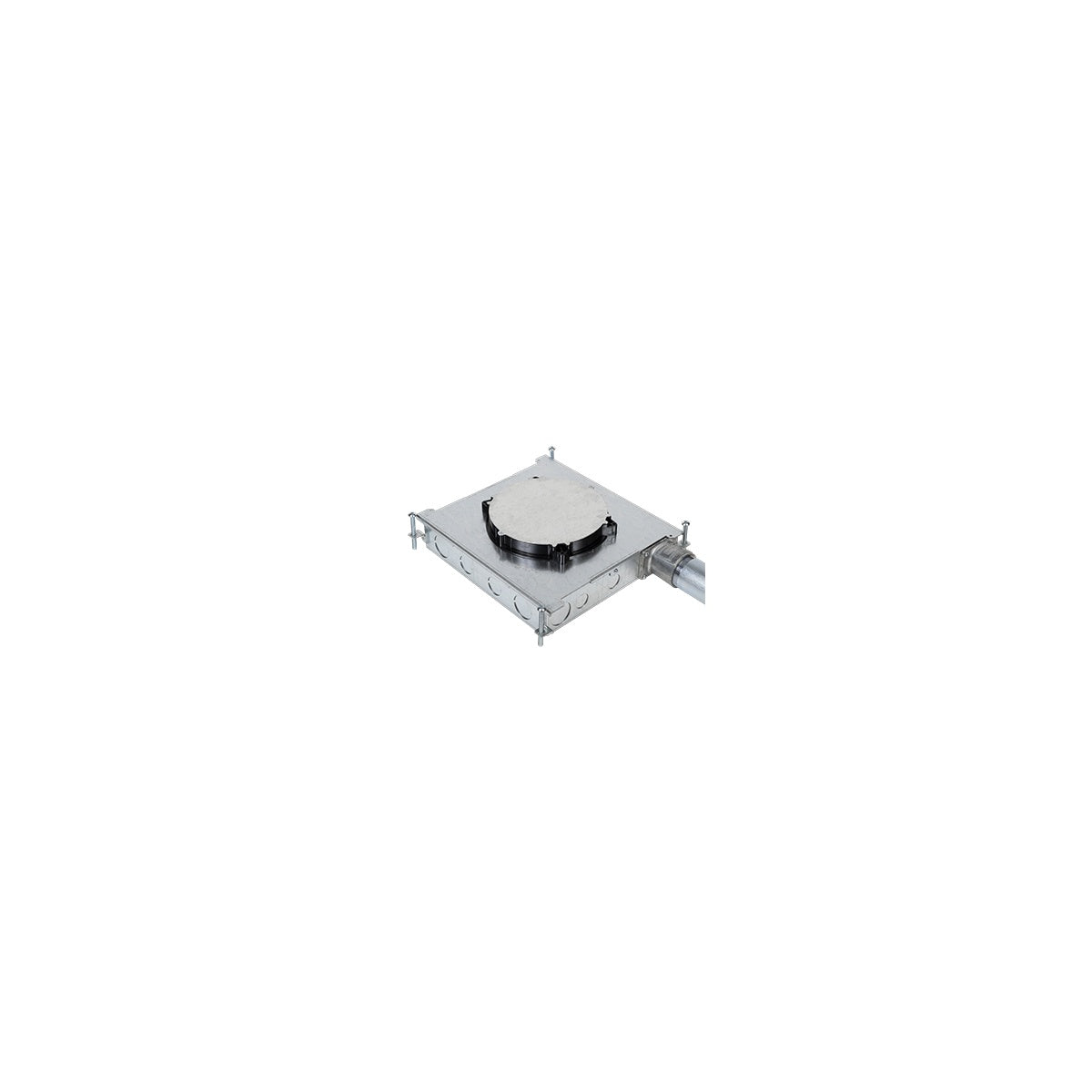

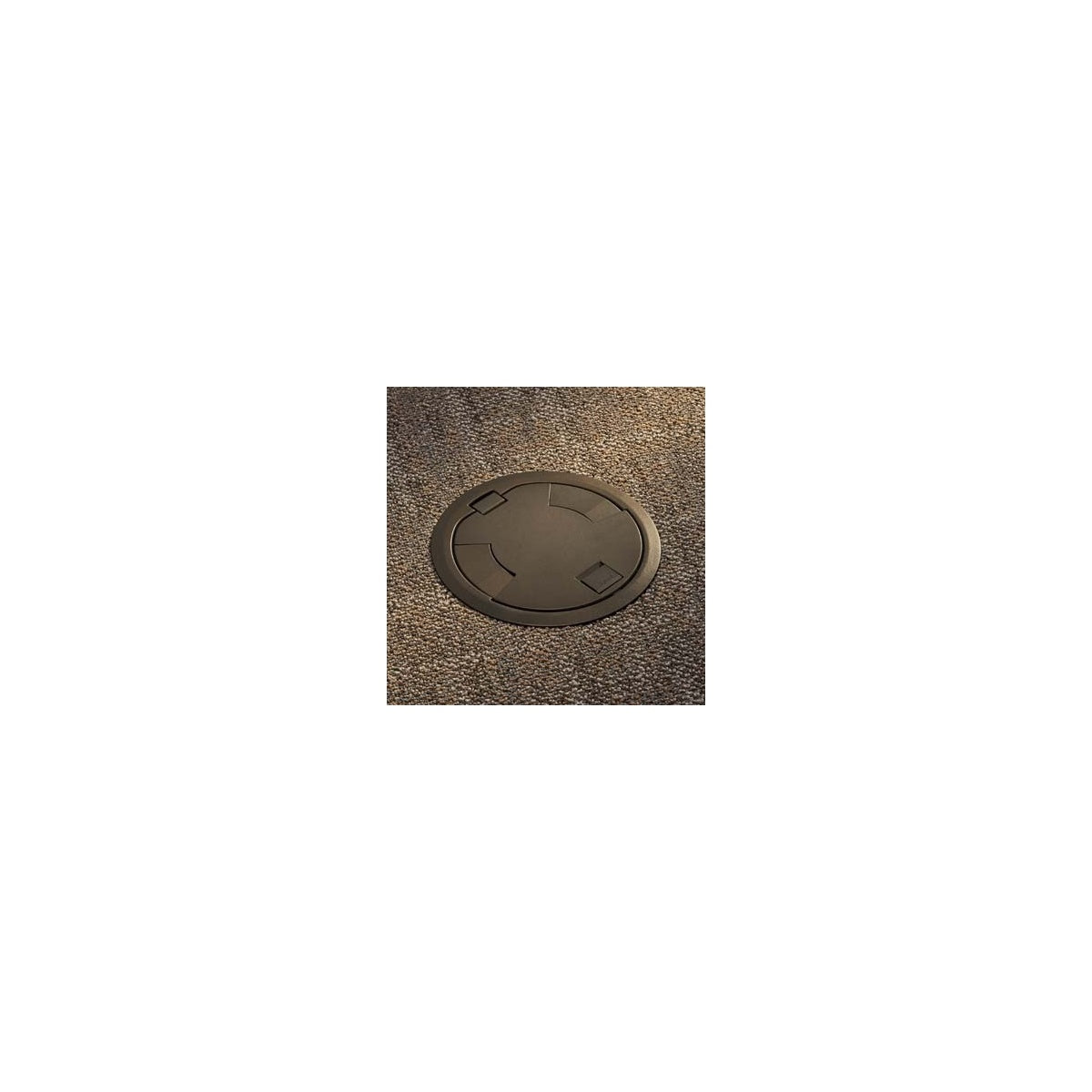

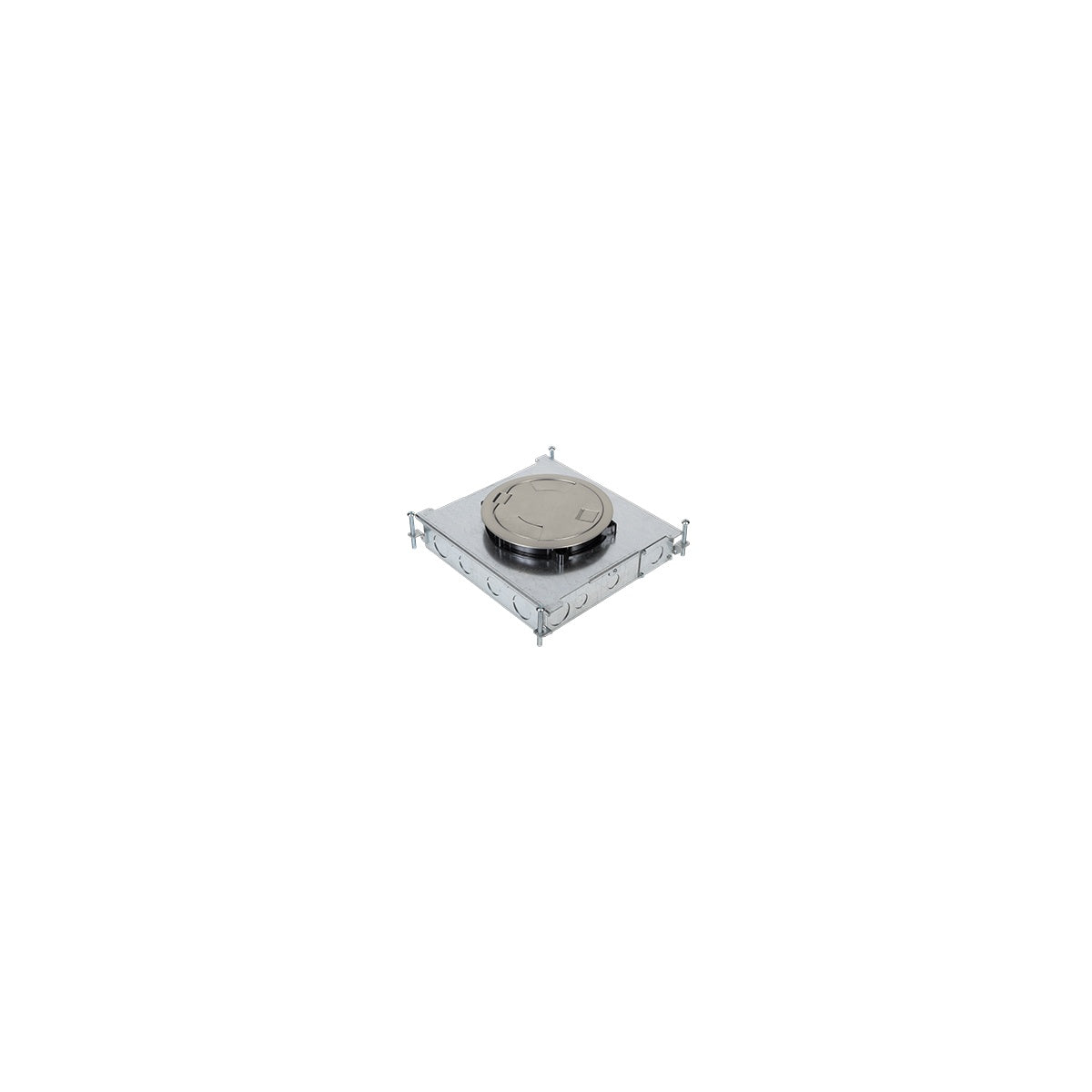

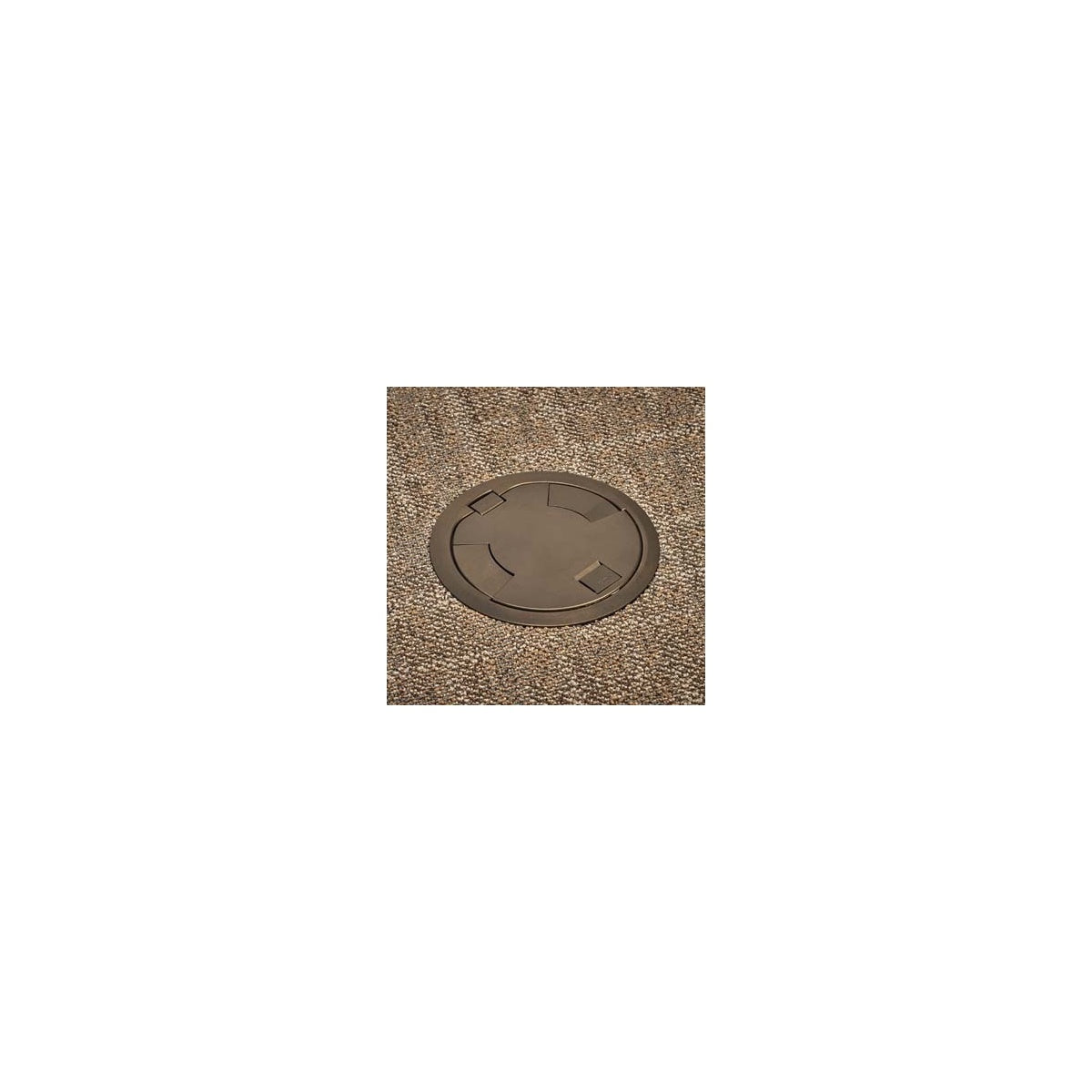

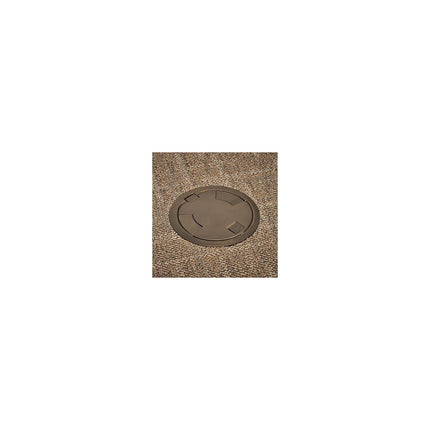

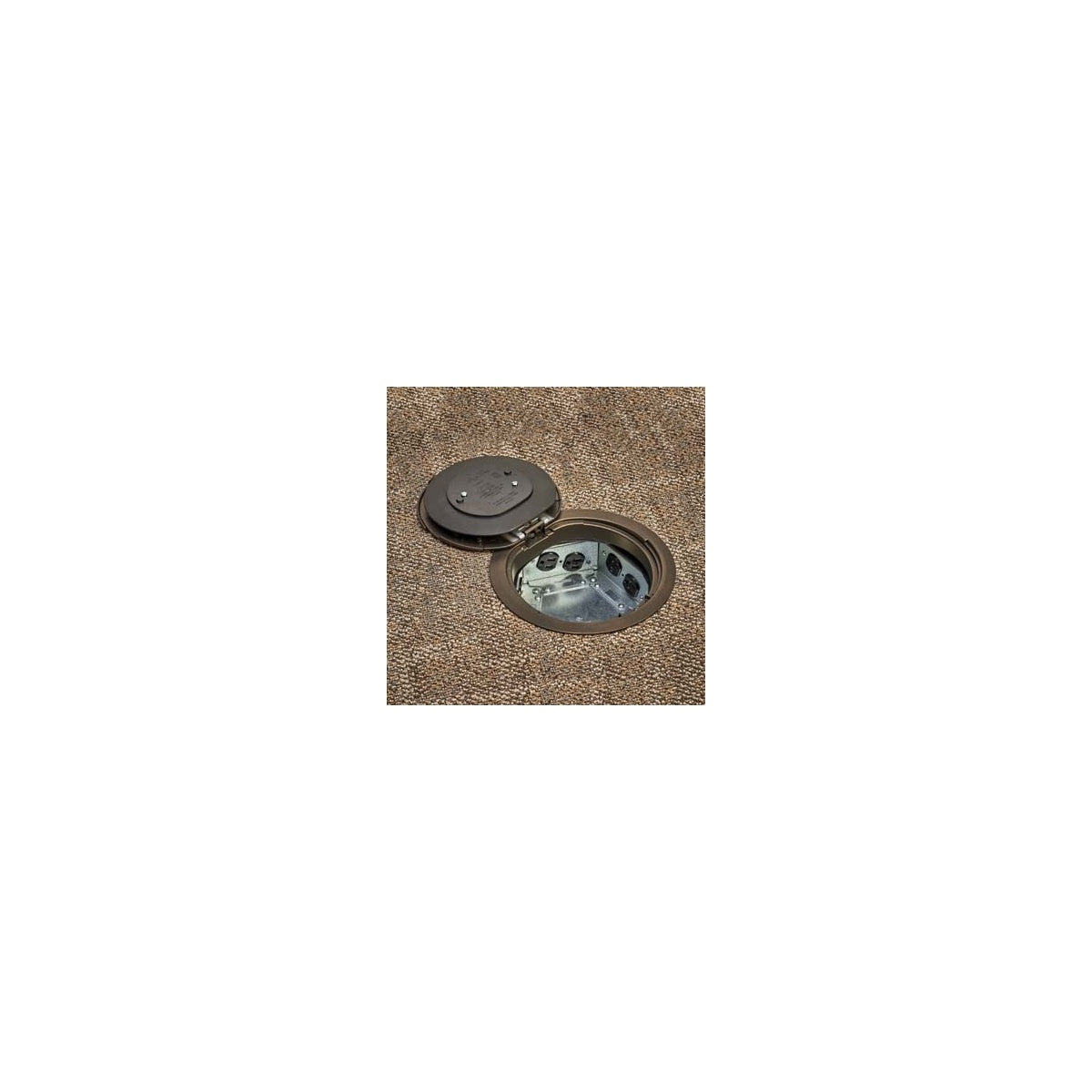

RFB6E Series Six-Compartment Box Floor Box Solutions

The Wiremold RFB6E Series Six-Compartment Box is a recessed concrete floor box designed to provide versatile power, communication, and audio/video services in commercial and institutional spaces. Ideal for use by electrical distributors and switchgear suppliers, this floor box supports open space areas and workstations with a 6-gang capacity, accommodating diverse wiring needs with knockouts for cable entry. It integrates seamlessly with Evolution‚Ñ¢ Series Poke-Thru Covers, offering multiple aesthetic options for polished concrete, terrazzo, tile, carpet, wood, and bare concrete floors.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part Number: RFB6E
• Construction: Assembled
• Cubic Capacity: 254 in¬≥
• Cable Entry: Knockouts
• Country of Origin: Mexico
• Product Weight: 13 lbs
• Order Minimum: 1 unit

Features

• Six compartments designed to accept power, communications, or audio/video devices
• Fits within a 4" deep concrete pour for easy installation
• Includes TopGuard‚Ñ¢ protection to prevent water, dirt, and debris ingress
• Compatible with 8" Evolution Series Poke-Thru Covers in various powder coat finishes
• Supports on-grade and above-grade applications, including polished concrete and terrazzo floors (adapter rings sold separately)
• 1 1/4" trade size feed-through openings connecting adjacent compartments
• UL Listed for safety on multiple floor types including tile, carpet, wood, and bare concrete
