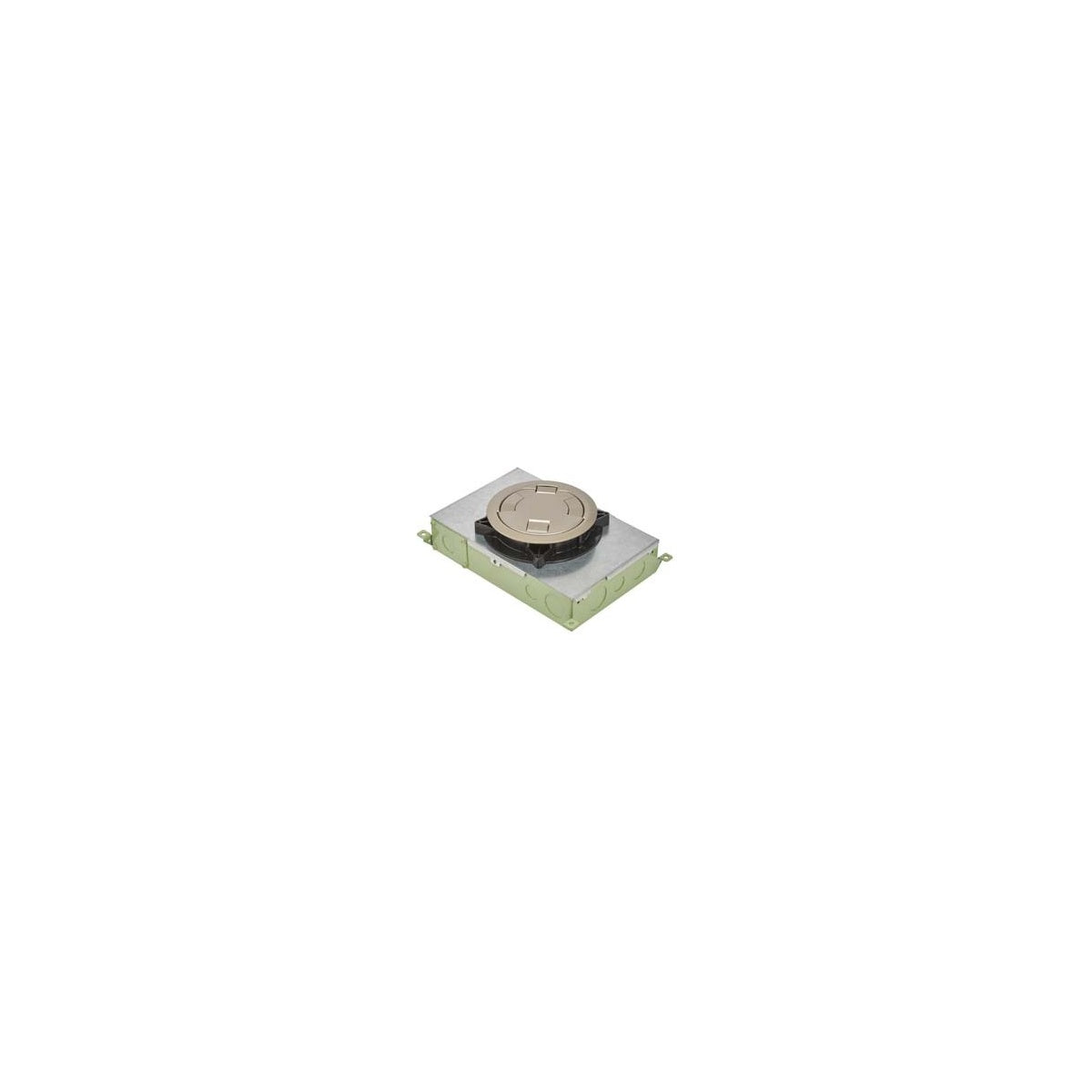

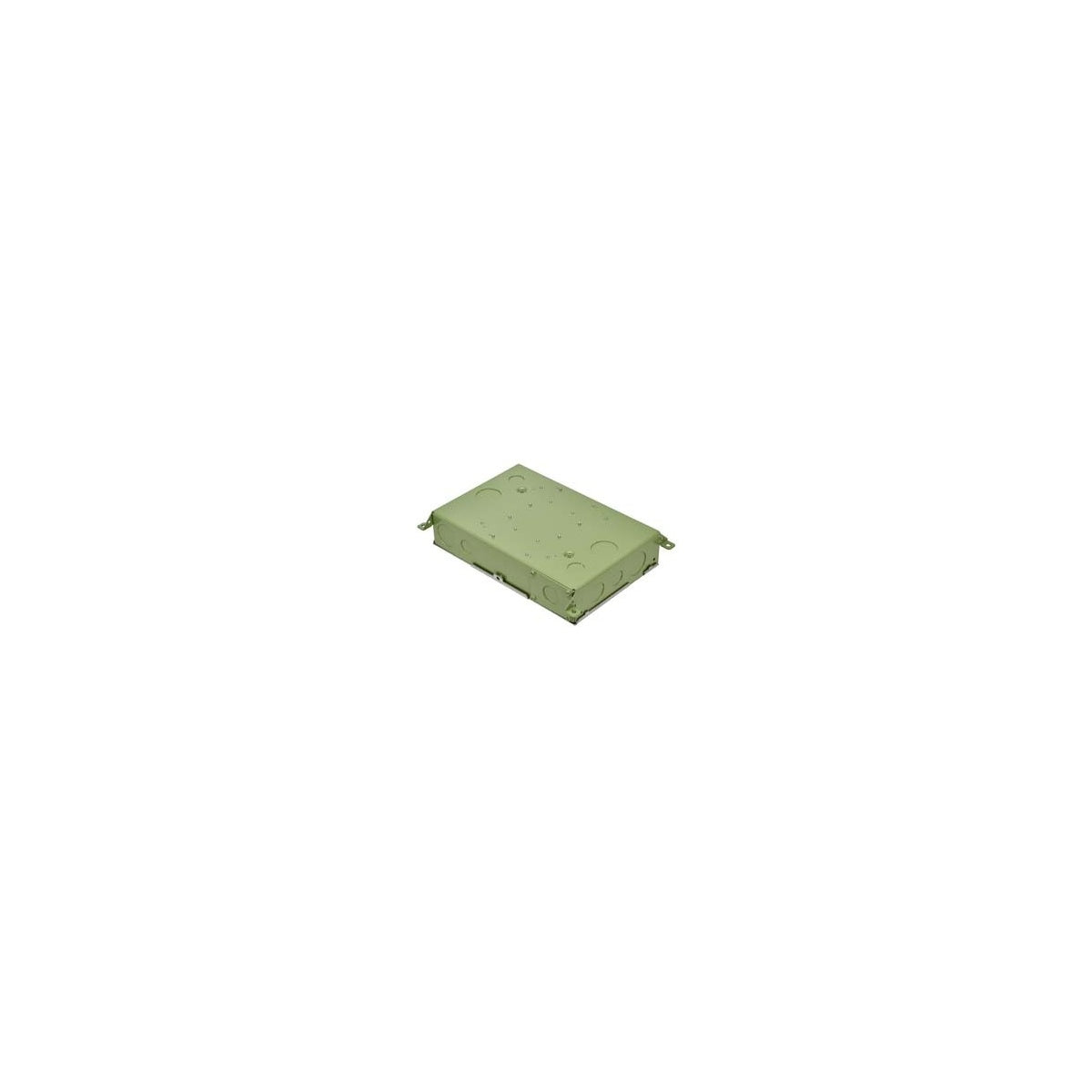

RFB2E-OG Series Two Compartment Recessed On-Grade Floor Box – Recessed Floor Box for Concrete Floors

The Wiremold RFB2E-OG Series Two Compartment Recessed On-Grade Floor Box is a versatile recessed activation solution designed for use in concrete floors. It provides power, communication, and/or audio/video services to open space areas or directly to workstations. This floor box is ideal for applications in commercial office buildings, schools, financial institutions, hospitality, and residences. As a product from a trusted electrical distributor and switchgear supplier, it supports efficient wire and cable management with knockouts for various conduit sizes and compatibility with a wide range of device mounting brackets.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: RFB2E-OG
• Country of Origin: Mexico
• Construction: Assembled
• Cable Entry: Knockouts
• Cubic Capacity: 70 in¬≥ per compartment
• Order Minimum: 1 unit
• Product Weight: 10.3 lbs
• Box Capacity: 2 gangs
• Depth Behind Device Plates: 3 1/2" (89mm)
• Trade Size Conduit Feed: 3/4" ‚Äì 2"
• Adjustability: Fully adjustable before and after concrete pour
• Installation Floor Type: On-Grade concrete floors

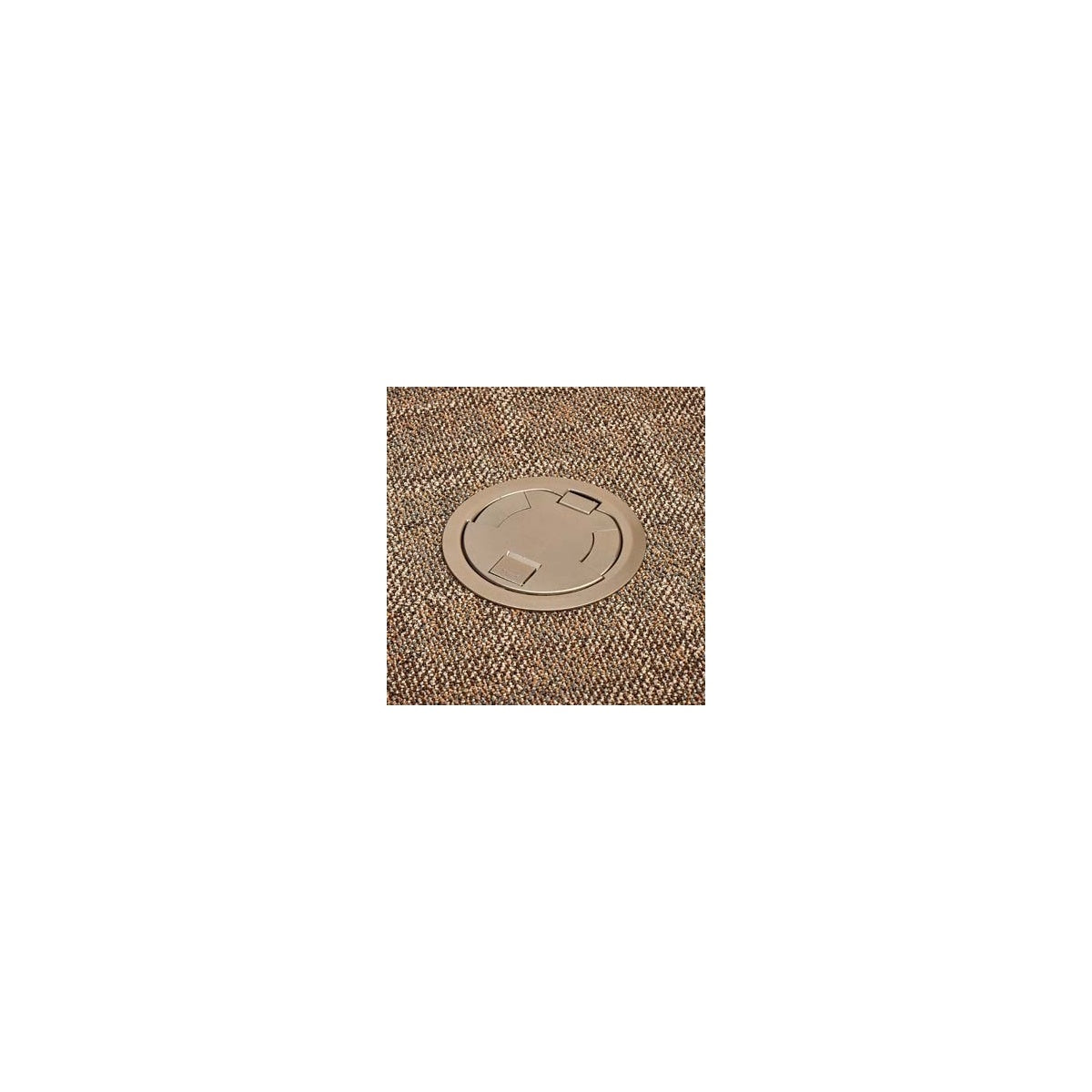

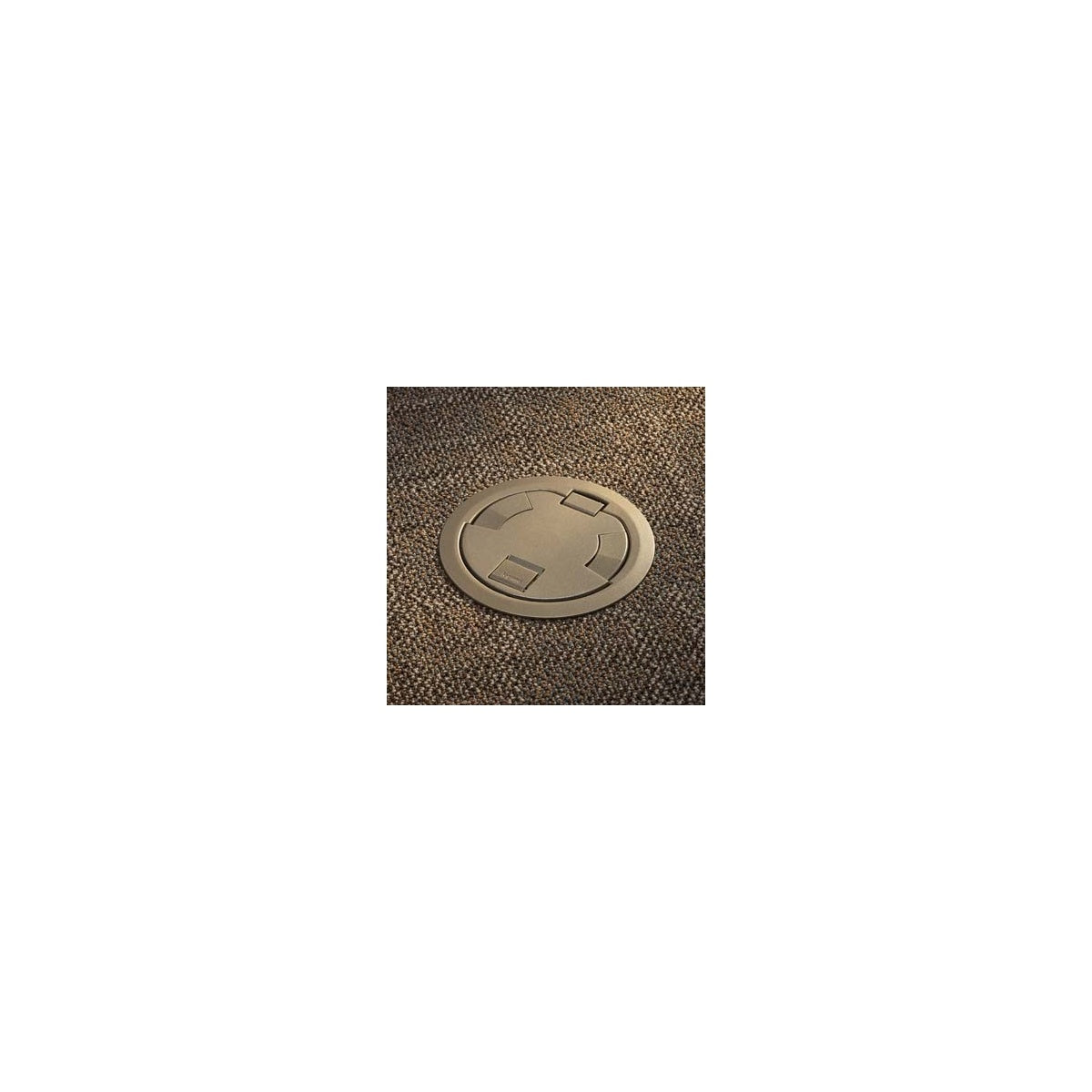

• Compatible Covers: Evolution Series Round Activation Covers

Features

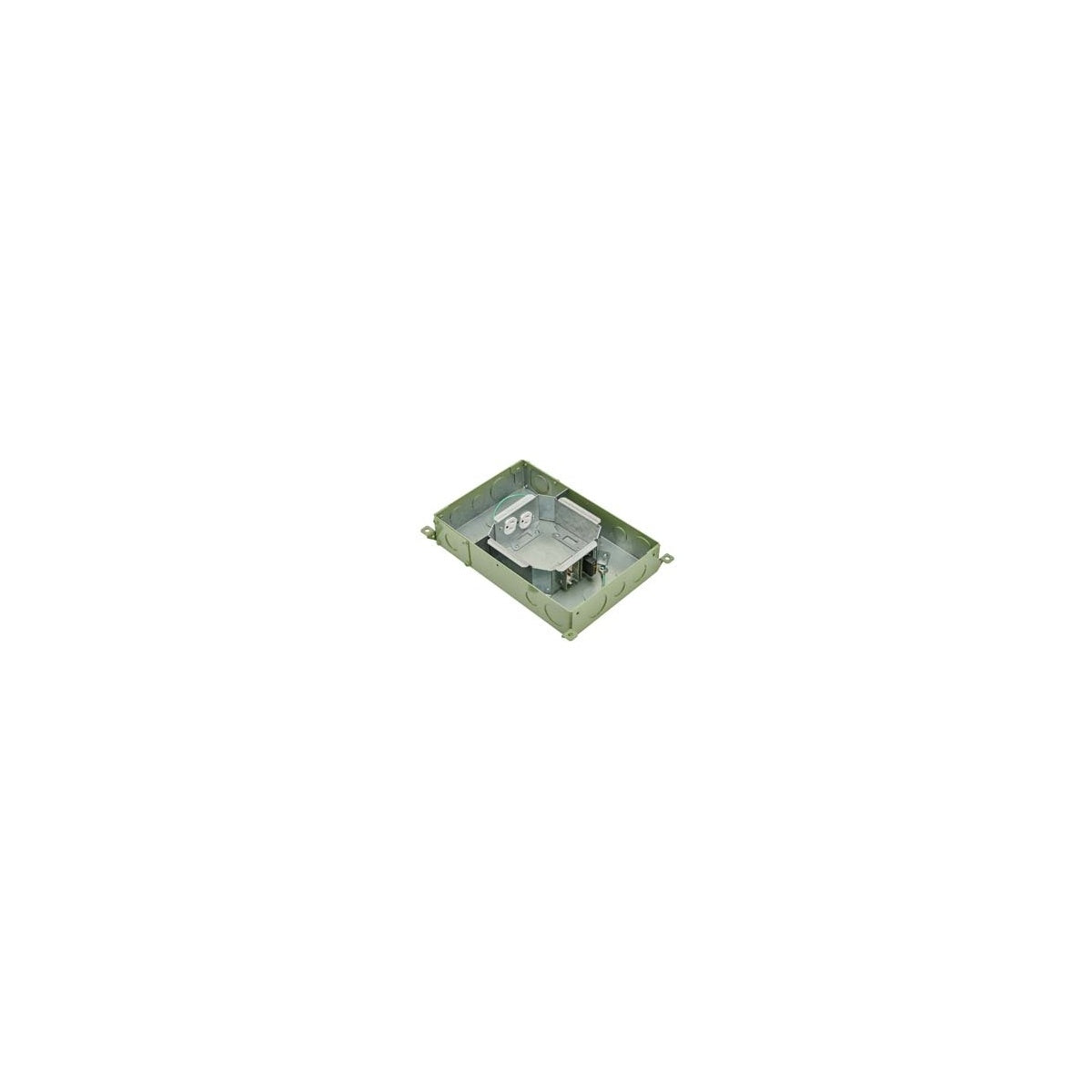

• Two-compartment design with fully configurable removable dividers.
• Painted with fusion-bonded epoxy corrosion-resistant finish for on-grade use, suitable for slab-on-grade applications.

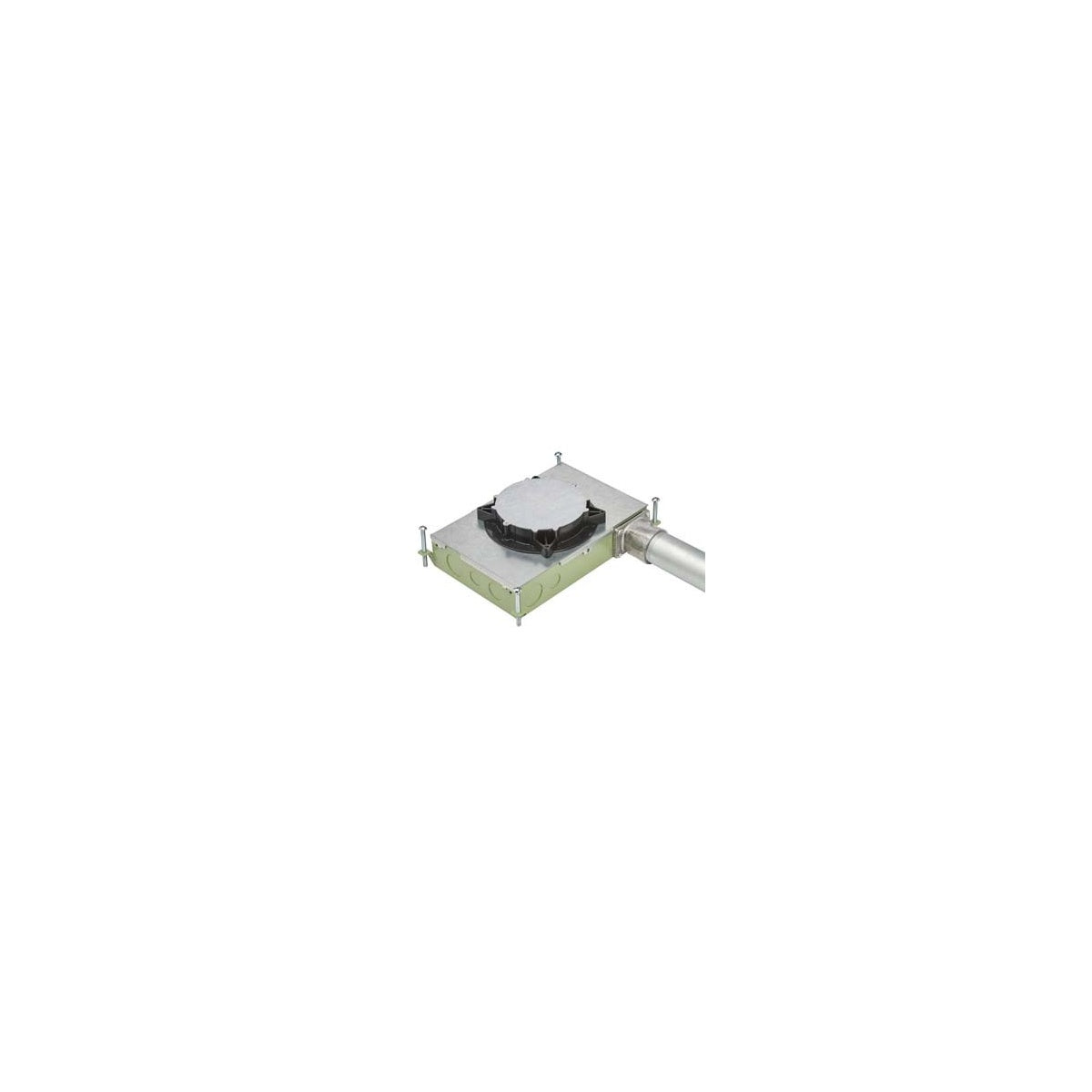

• Knockouts support a range of conduit sizes from 3/4" to 2" trade size, allowing for flexible wiring schemes and feed-through capability.
• Compatible with Evolution Series Round Activation Covers providing protection against water, dirt, and debris.
• Supports power, communication, and audio/video services within a single box, reducing the need for multiple installations.
• Lightweight design compared to cast iron, facilitating easier installation.
• Designed for use in open office areas, schools, financial institutions, commercial offices, hospitality, and residential applications.
